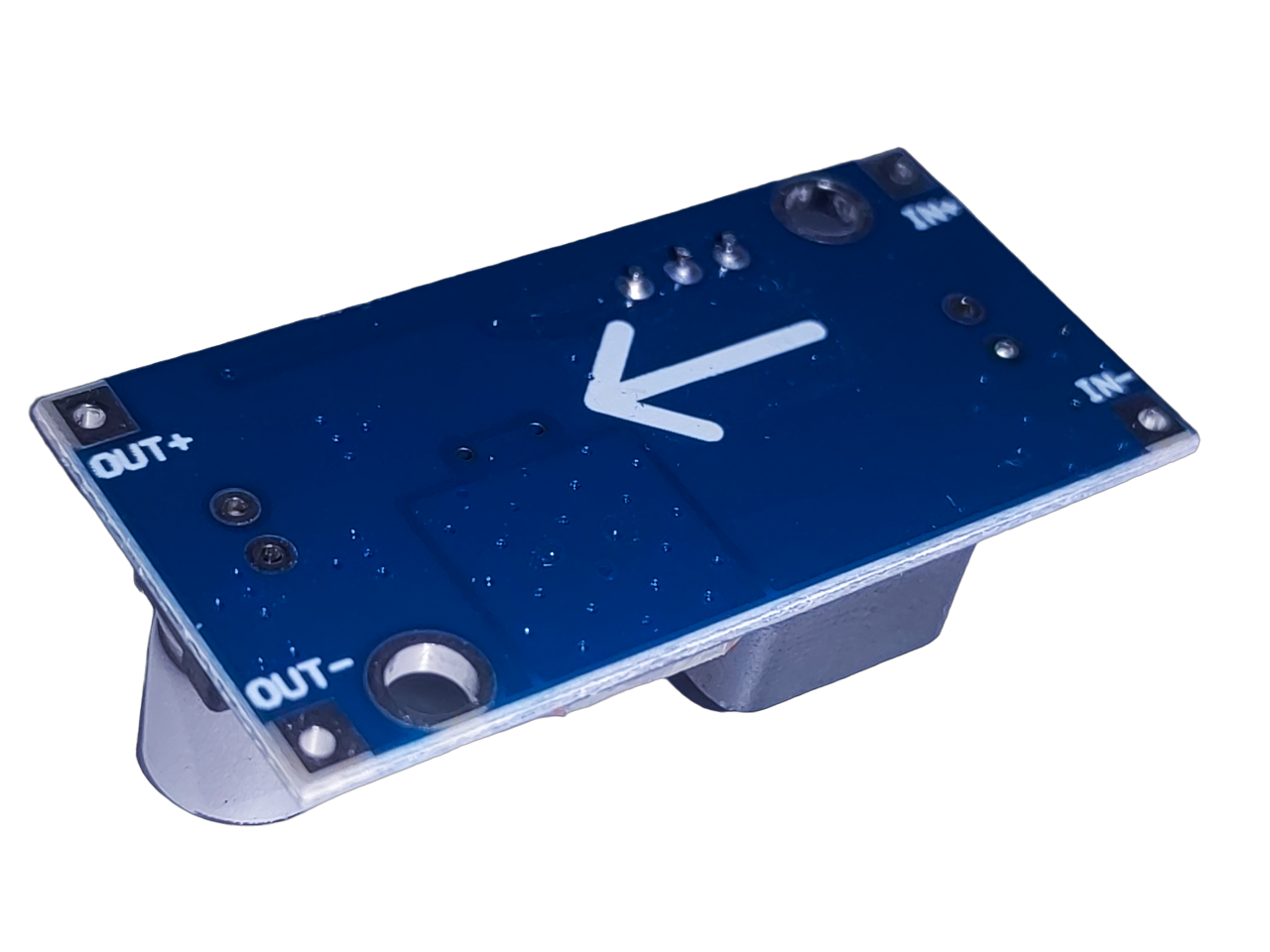

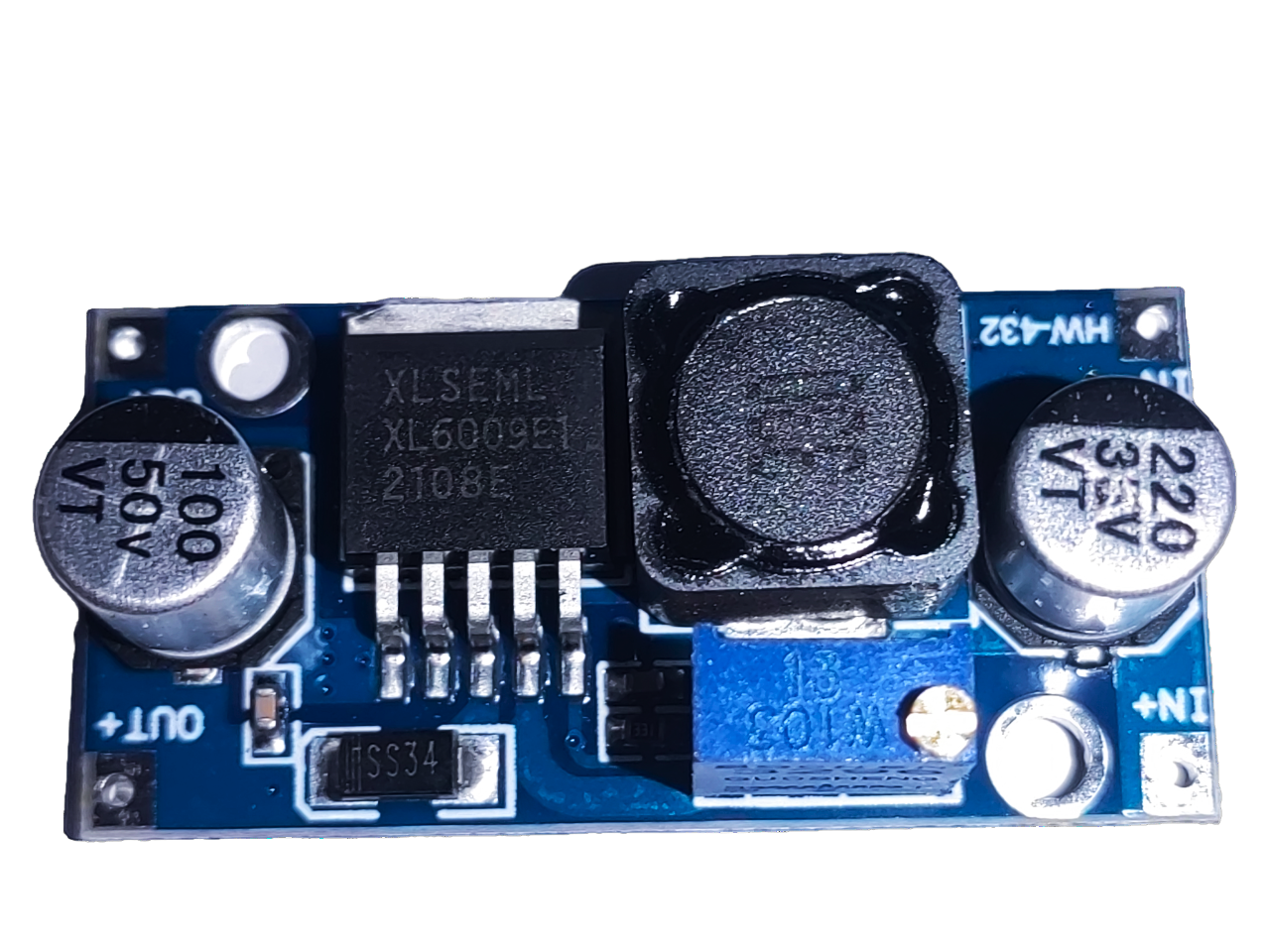

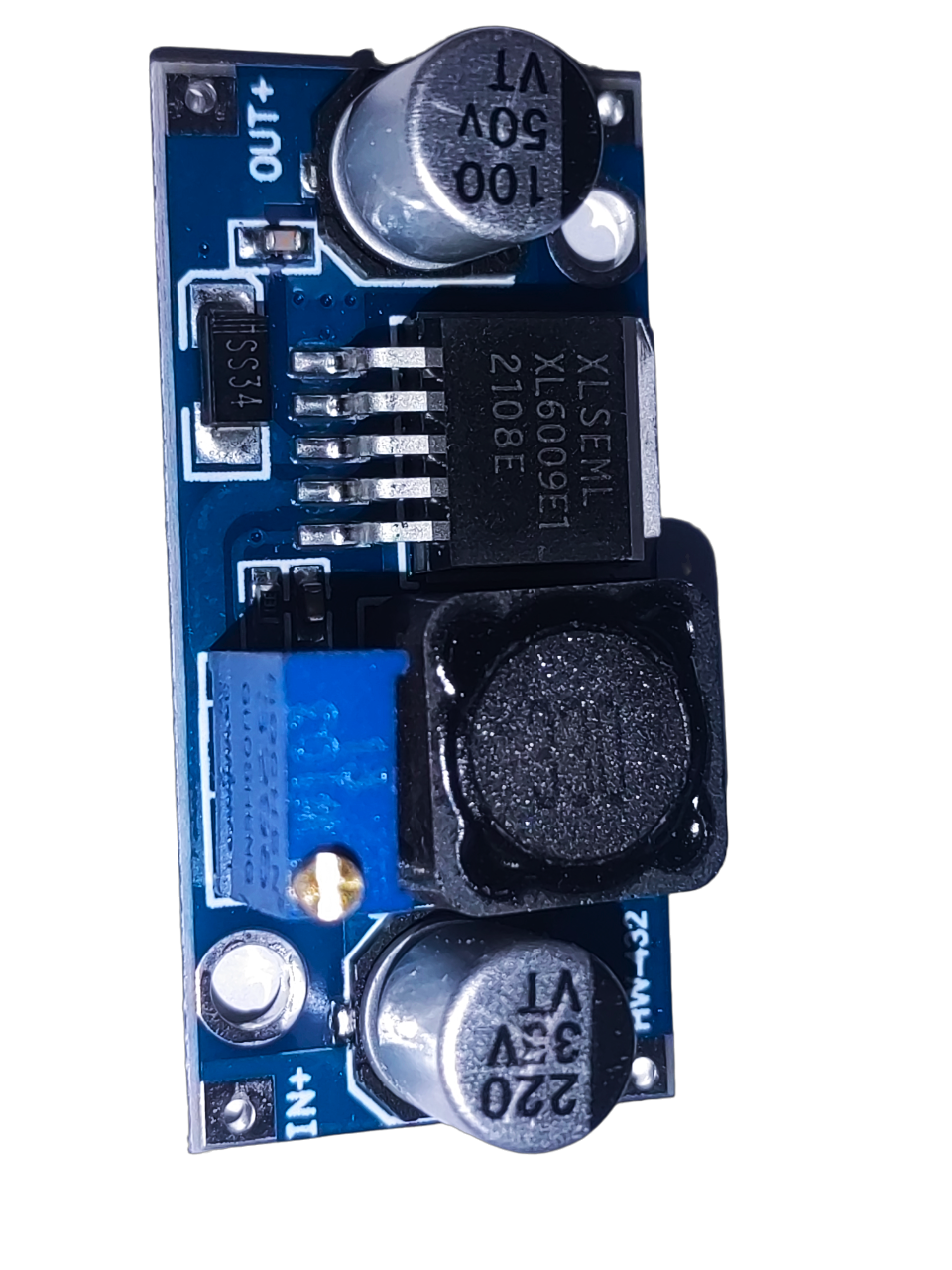

XL6009 DC-DC Step-Up Converter Module (5–45 V Output)

The XL6009 DC-DC boost converter raises a lower input voltage to a higher output voltage, adjustable up to 45 V.
8.74 PLN
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Stock 8 piece · In stock
Internal code: 11421285
Units per package 1 pcs
Unit of measure pcs
Measurement quantity 1 pcs
Input voltage5V–32V
Current3A
Country of originChina
Weight 0.01 kg
Length 4 cm
Width 2 cm
Height 1.2 cm

Product details

XL6009

Step-Up – allows the input voltage to be stepped up to an output of up to 45 V.



Specifications:

  • Input voltage: 5V to 32V
  • Output voltage: 5V to 45V
  • Maximum current: 4A
  • Efficiency: 94%
  • Switching frequency: 400 kHz
  • Dimensions: 43 x 21 x 14 mm



Applications:

  • Building chargers for mobile devices
  • Powering LED strips
  • Powering motors and servomotors
  • Building solar chargers
  • Building power supplies for Arduino and other microcomputers
  • Powering thermometers and other sensors



These are just some of the possible applications of the XL6009 module; other uses depend on the requirements of your particular project.

Create something unique.



XL6009E1 Datasheet

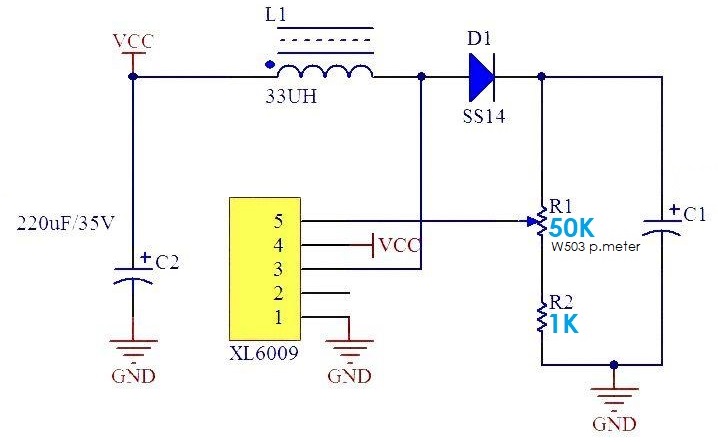

Controller IC schematic:



xl6009
