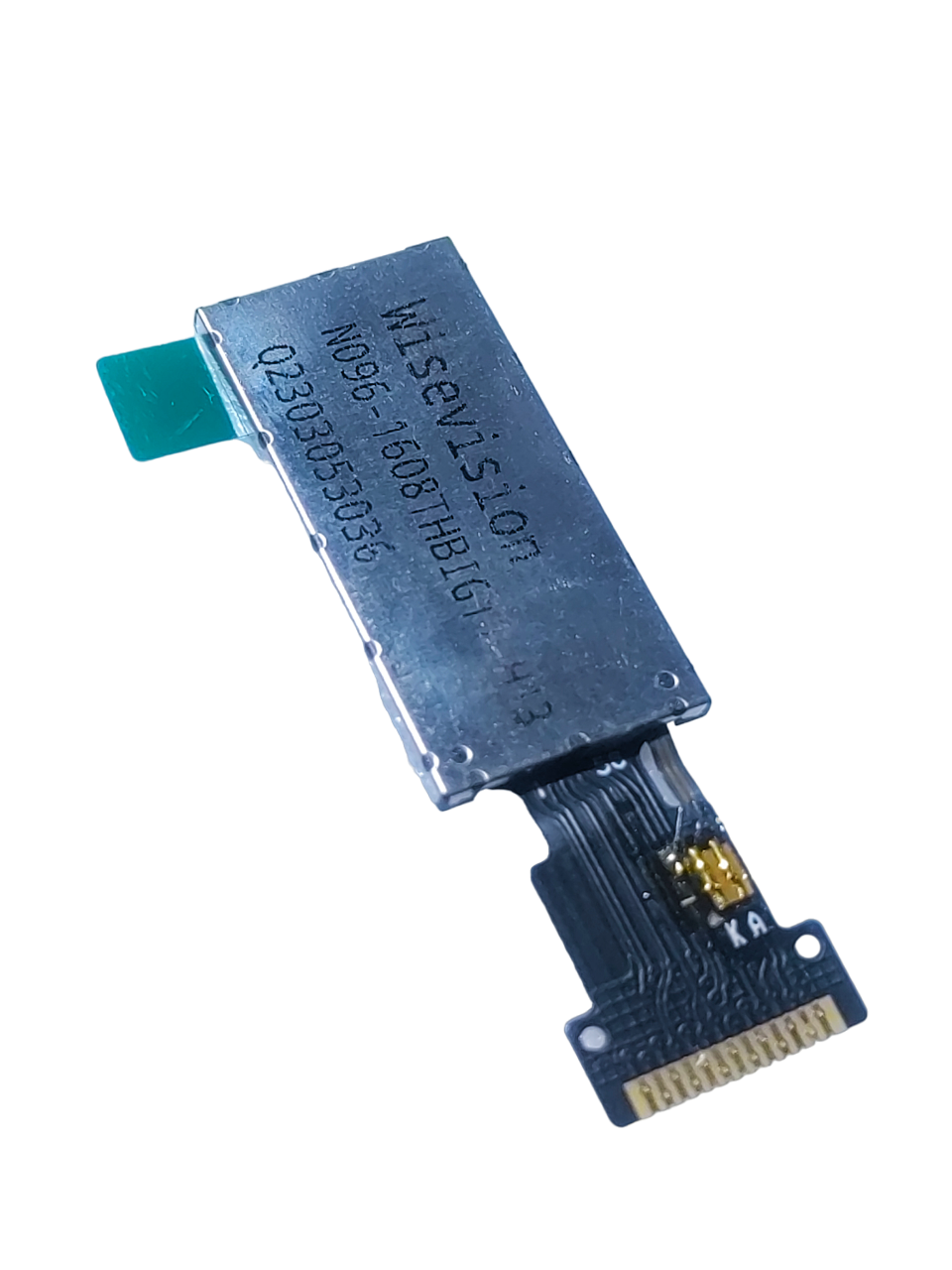

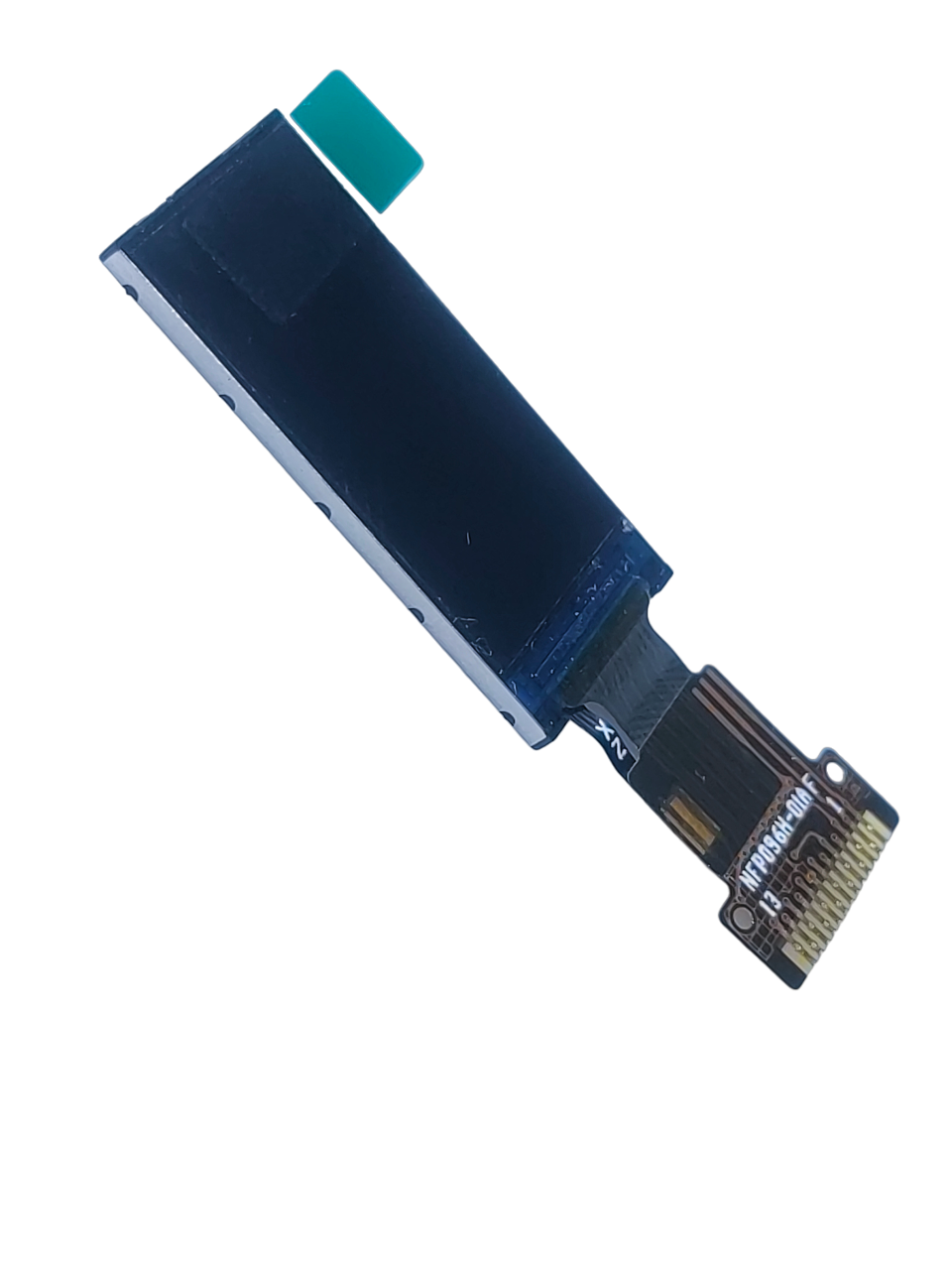

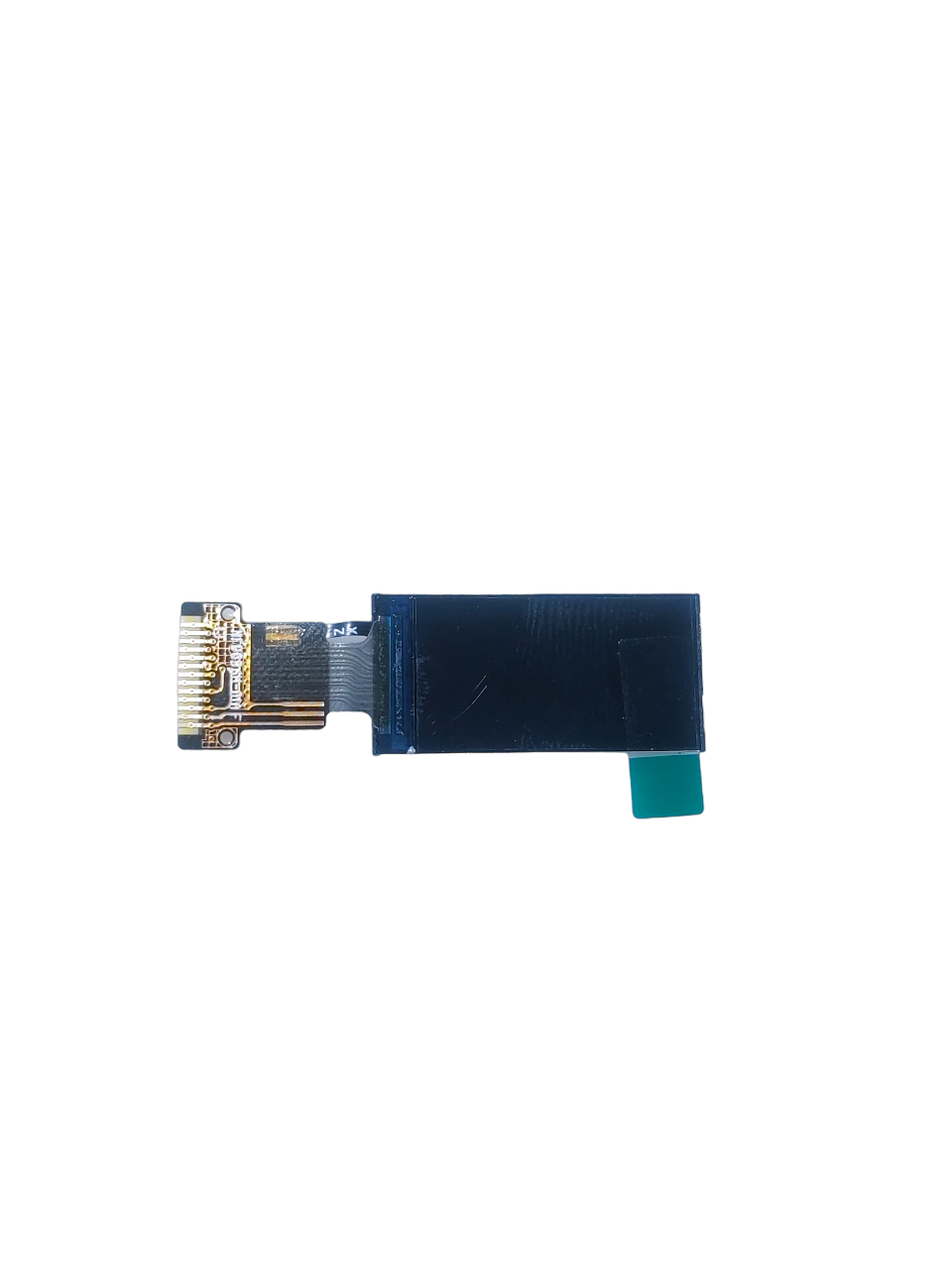

Wisevision 0.96-inch TFT IPS Display, 80 × 160, ST7735
Almost sold out
The Wisevision 0.96-inch ST7735 IPS TFT is a compact color display with 80 × 160 pixel resolution. It is suitable for wearables, electronics projects, medical instruments and other devices.
4.60 EUR
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Product details
Important:
The Wisevision TFT IPS 0.96-inch ST7735 display is normally used by PCB designers because its pins are too small for convenient use on a breadboard or for directly soldering wires to the flex cable. A carrier board with the required components, such as a flex connector and voltage regulators, is needed.
A schematic for connecting the display is shown below.
Specifications:
- Dimensions: 13.5 × 27.95 × 1.5 mm
- Diagonal: 0.96 inches
- Resolution: 80 × 160 pixels
- Display technology: IPS
- Color depth: 16-bit
- Brightness: 300 cd/m²
- Contrast ratio: 1000:1
- Viewing angle: 170° horizontal, 160° vertical
Benefits:
- High quality and reliability
- Easy to use
- Sharp color display
- Compact and lightweight
- Wide viewing angle
- High resolution
Applications:
The Wisevision TFT IPS 0.96-inch 80 × 160 ST7735 is suitable for projects including:
- Smartwatches
- Electronic devices
- Medical instruments
- Measurement instruments
- Household appliances
- Automotive applications

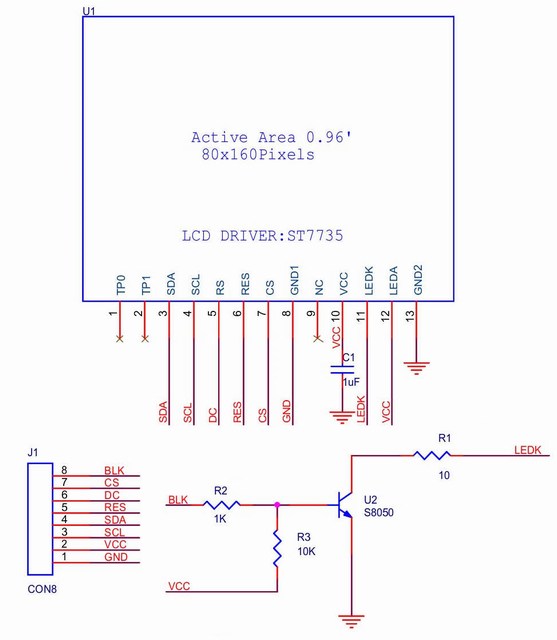

Schematic:
