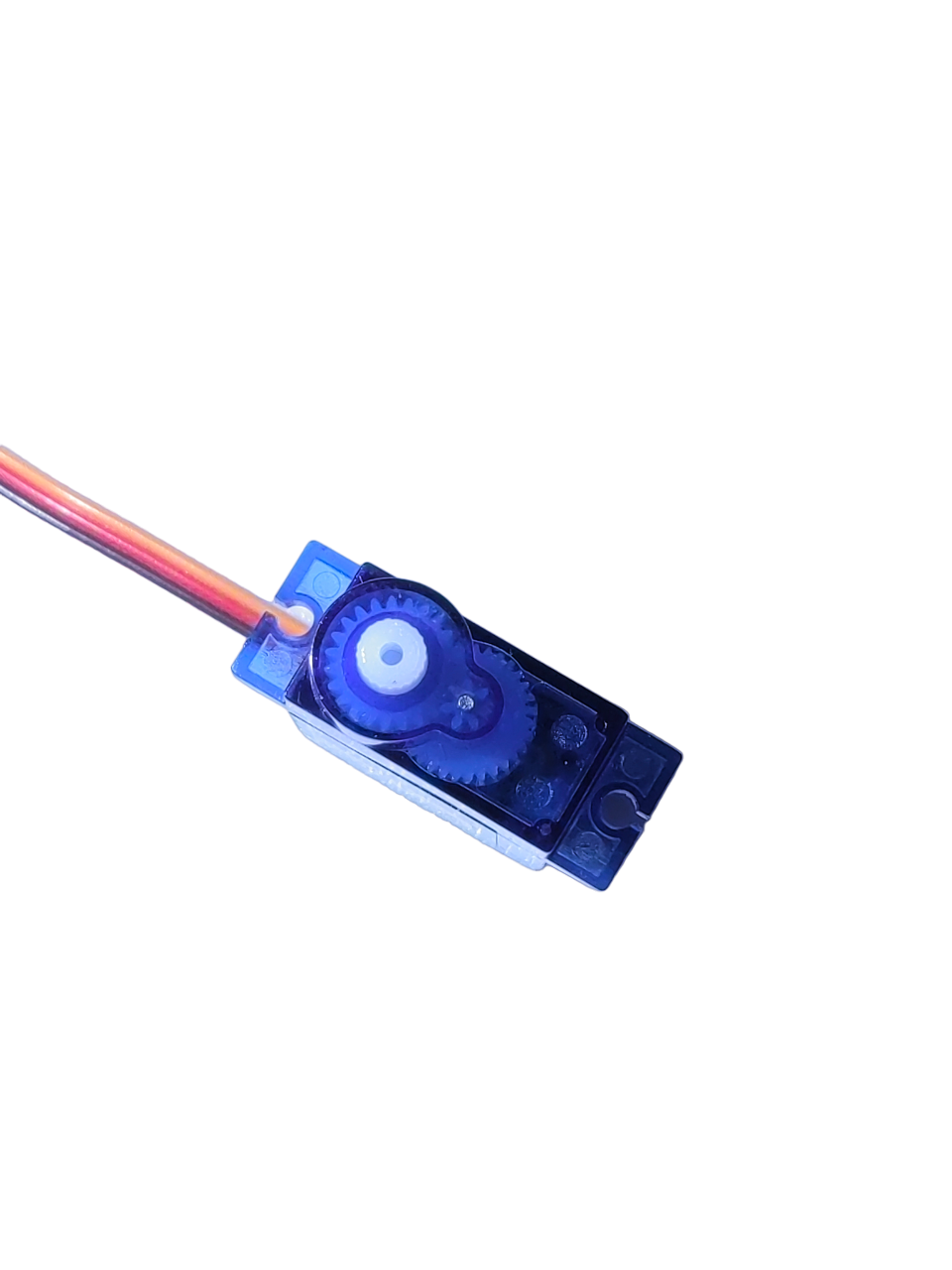

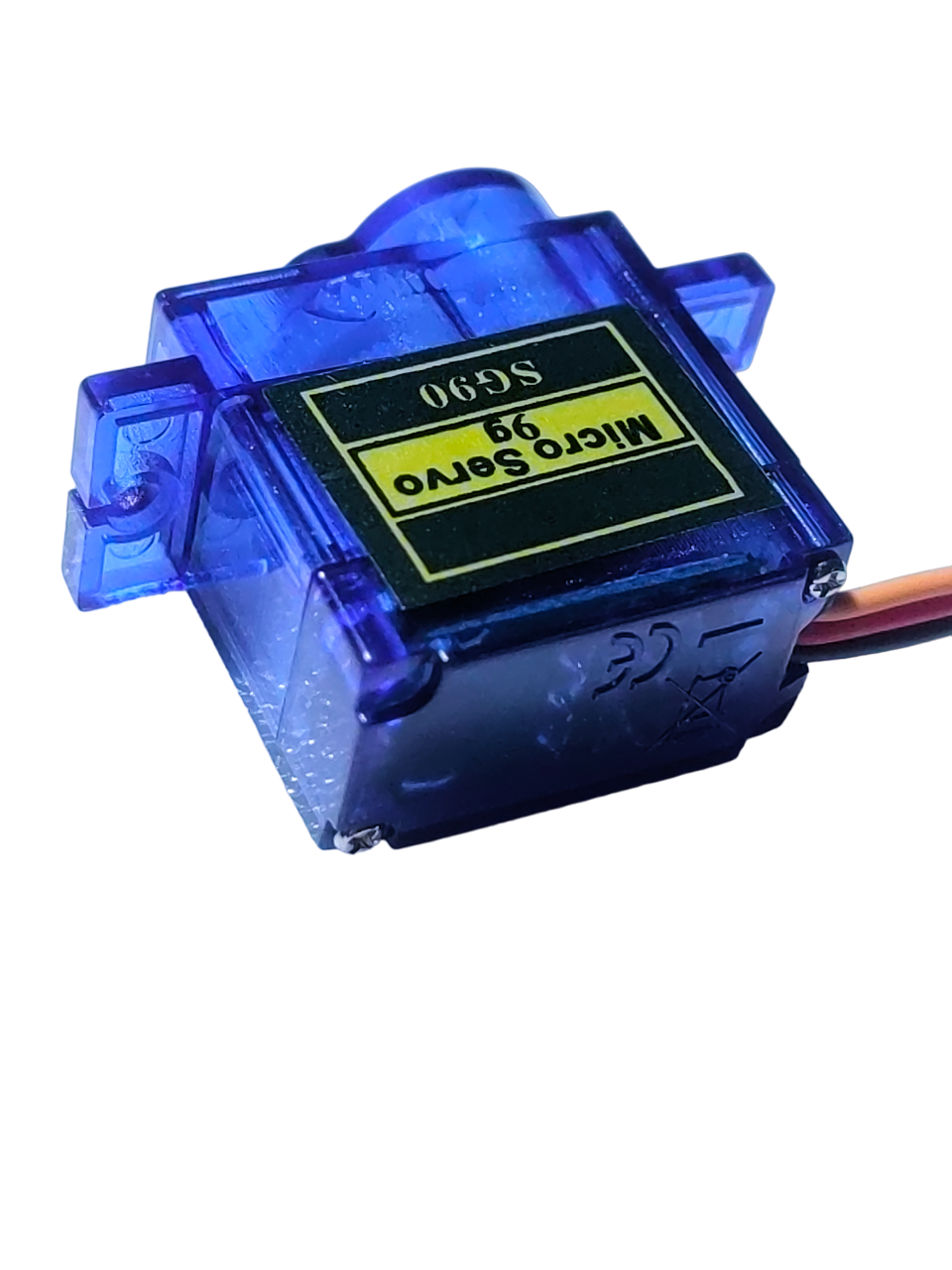

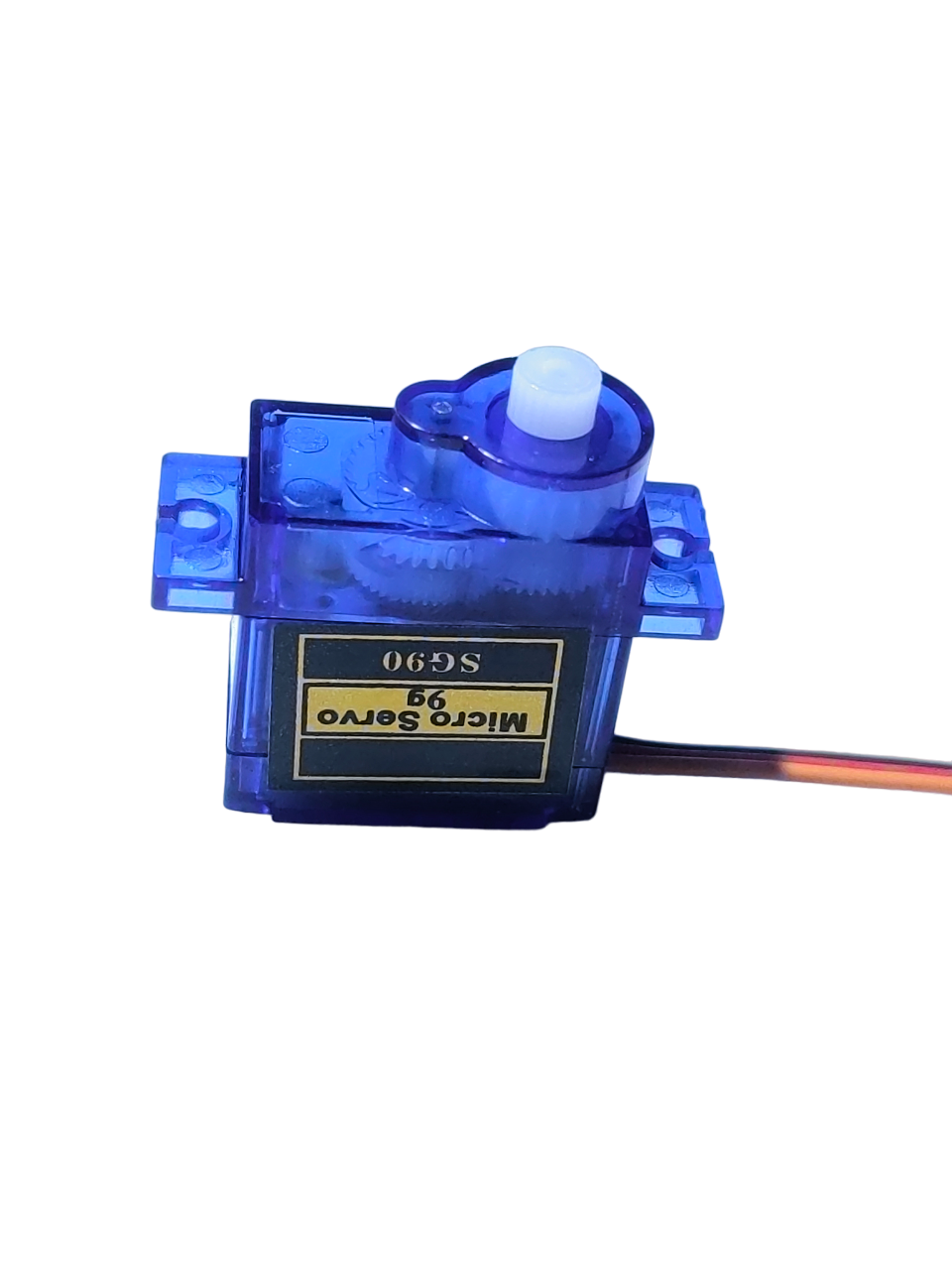

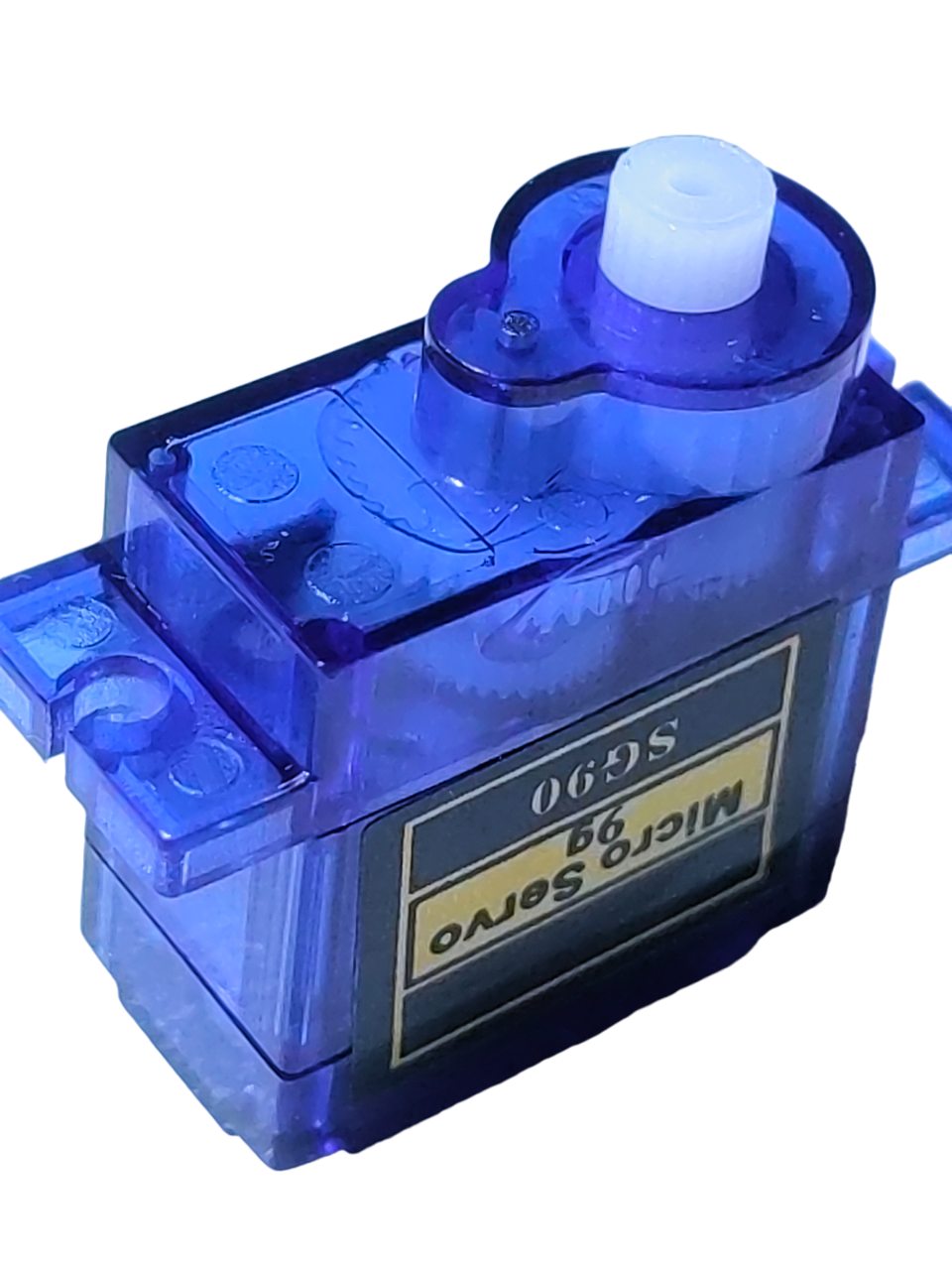

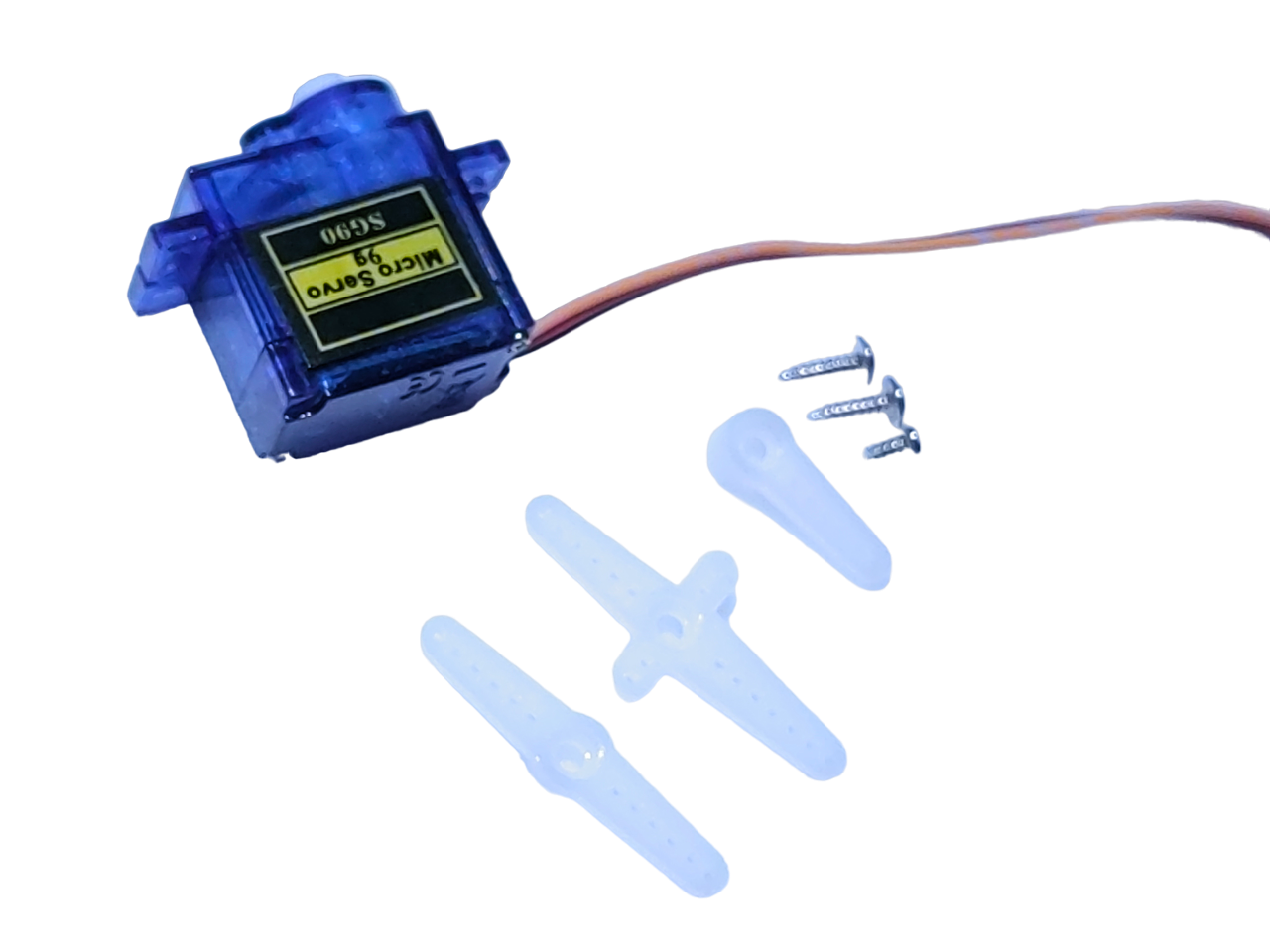

SG90 Micro Servo Motor for Arduino

The SG90 is a small, fast servo suited to robots, animatronics and many other projects. It offers precise positioning, reliable operation and easy integration.
2.30 EUR
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Stock 19 piece · In stock
Internal code: 23276015
Units per package 1 pcs
Unit of measure pcs
Measurement quantity 1 pcs
Country of importChina
Input voltage4,2-6V
Weight 0.01 kg
Length 2.6 cm
Width 2.3 cm
Height 2.9 cm

Product details

Specifications:

  • Rotation range: 180 degrees
  • Speed: 0.09 seconds per 60 degrees at 4.8 V DC
  • Length: 23 mm
  • Material: nylon gears
  • Speed: 0.3 seconds/s
  • Stall torque: 17.5 oz-in at 4.8 V DC
  • Voltage: 4.2–6 V DC
  • Weight: 9 g
  • Width: 12.2 mm

Applications:

The SG90 servo can be used in projects such as:

  • Robots
  • Animatronics
  • RC models
  • Drones
  • Cameras
  • Solar tracking systems
  • Weather stations



Simple test code:

// Definujte pin, ku ktorému je pripojené servo
const int servoPin = 9;

void setup() {
// Nastavený pin ako výstup
pinMode(servoPin, OUTPUT);
}

void loop() {
// Servo na 0 stupňov
analogWrite(servoPin, 0);
delay(1000);

// Servo na 90 stupňov
analogWrite(servoPin, 90);
delay(1000);

// Servo na 180 stupňov
analogWrite(servoPin, 180);
delay(1000);
}

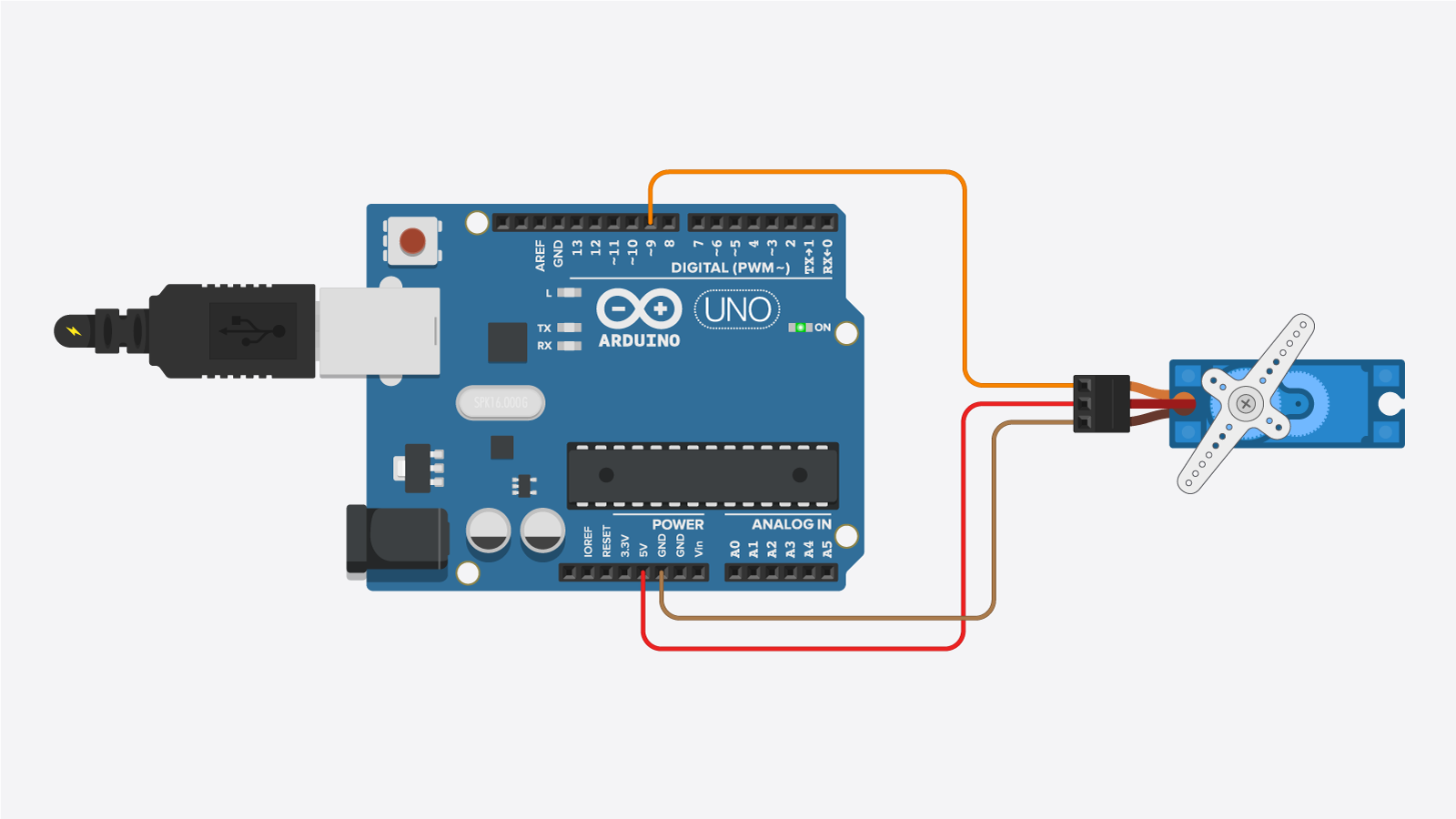

Wiring example:
