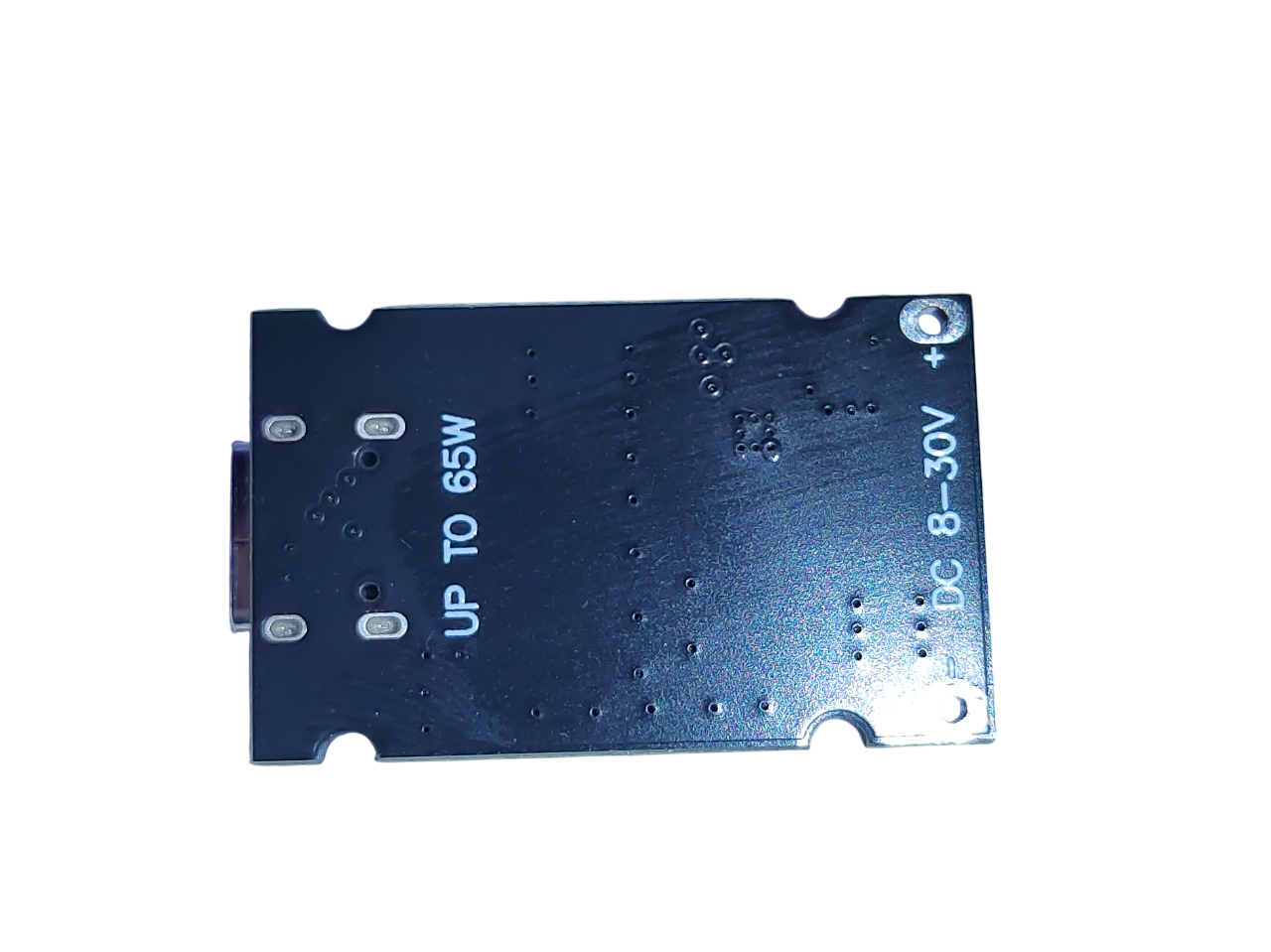

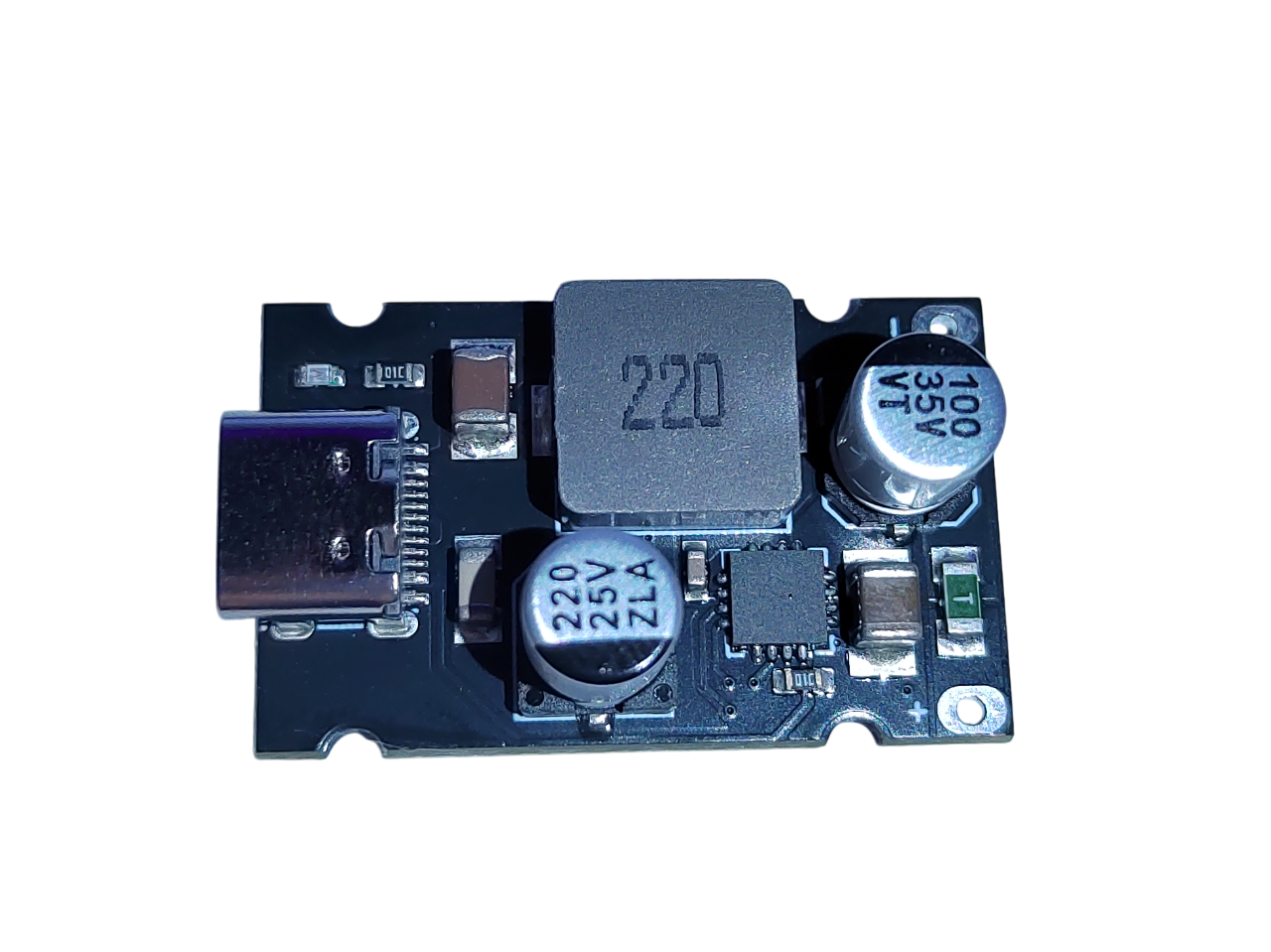

PD65W USB-C Fast-Charging Module (8–32 V Input)

This compact PD65W fast-charging module can power and charge devices through a USB-C connector, supporting a wide range of fast-charging protocols. It automatically adjusts the output voltage across the 3.3–21 V range according to the connected device (PD, QC, FCP, AFC and others). High conversion efficiency of 92–97% minimises power losses and idle consumption.

🔹 Technical specifications:

• Input voltage: DC 8–32 V

• Output voltage: automatically adjustable, 3.3–21 V (input voltage must be higher than the requested output voltage)

• Output power: 65 W maximum (5 V 3 A, 9 V 3 A, 12 V 3 A, 20 V 3.25 A, etc.)

• Efficiency: 92–97%

• Output ripple: < 200 mV

• Quiescent current: < 3 mA

🔹 Supported protocols:

• PD 2.0 / PD 3.1 (PPS)

• Qualcomm QC 2.0 / QC 3.0

• Huawei FCP / SCP

• Samsung AFC

• Apple / BC1.2

• MTK PE+ 1.1 / 2.0

Despite broad protocol compatibility, some devices may not work fully with the module. For fast charging, an input voltage of at least 19 V is recommended to give the module sufficient headroom for stable output voltage and power under higher loads.

🔹 Applications:

• DIY power supplies and charging stations

• Universal fast chargers

• Portable power banks and battery-powered solutions

• Laboratory power projects

🔹 Protection features:

✅ Input overvoltage and undervoltage protection
✅ Input overcurrent protection
✅ Output overcurrent and short-circuit protection
✅ Overtemperature protection

🔹 Package contents:

• 1 × PD65W fast-charging module with USB Type-C
