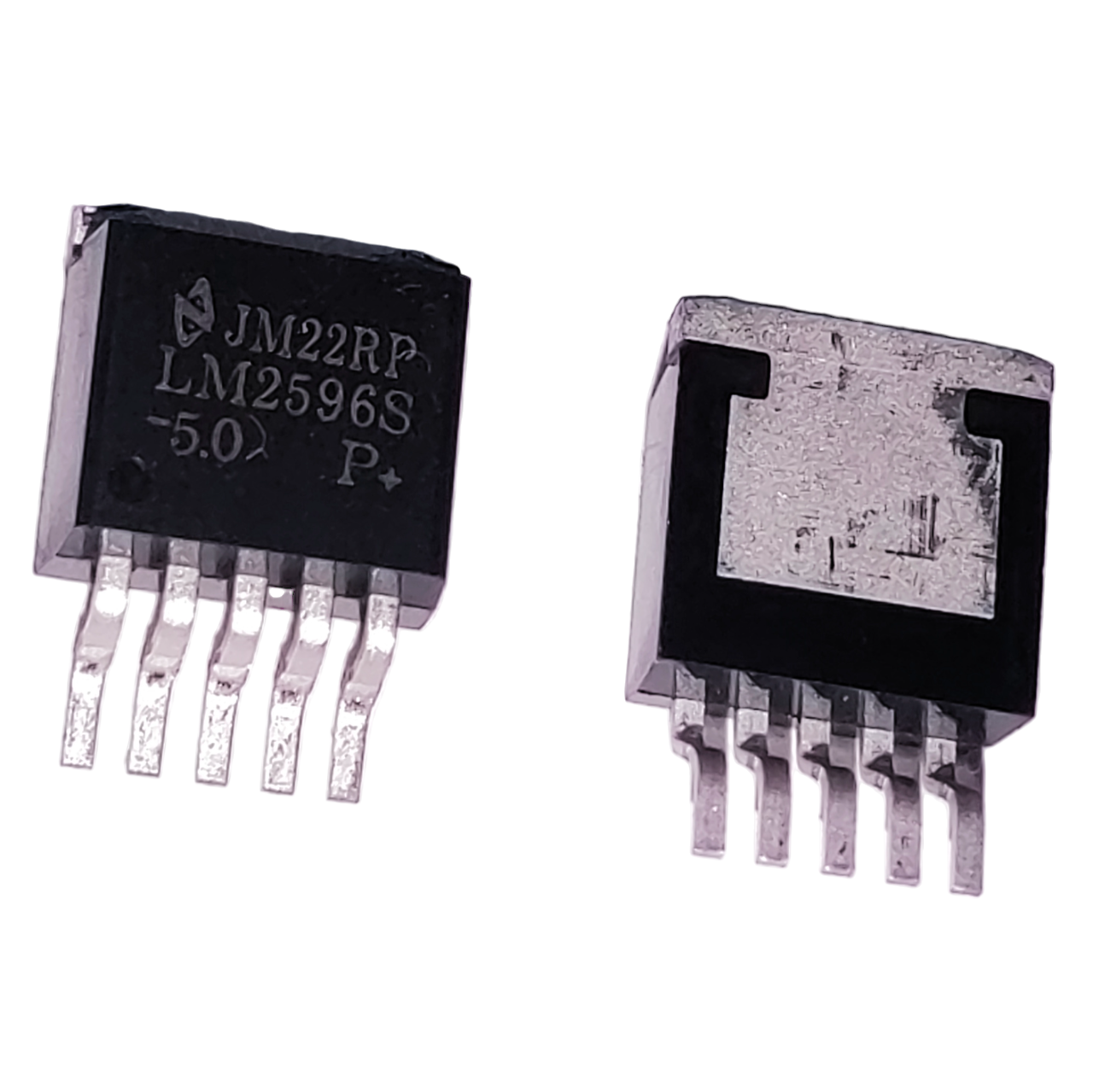

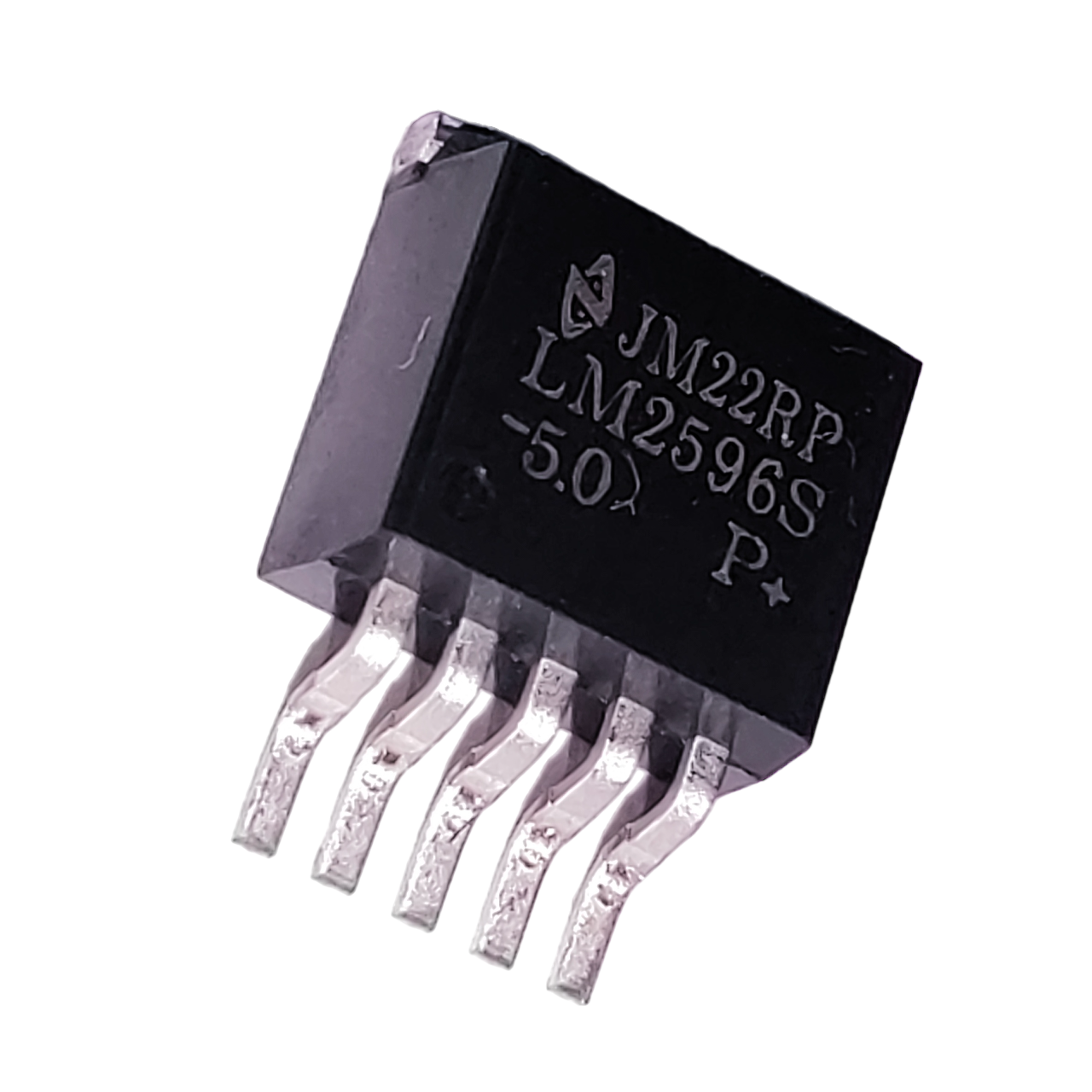

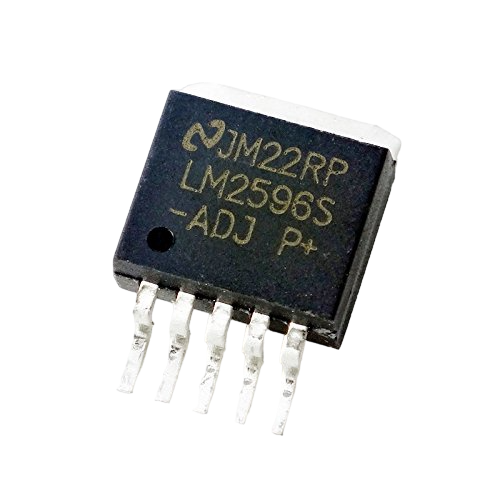

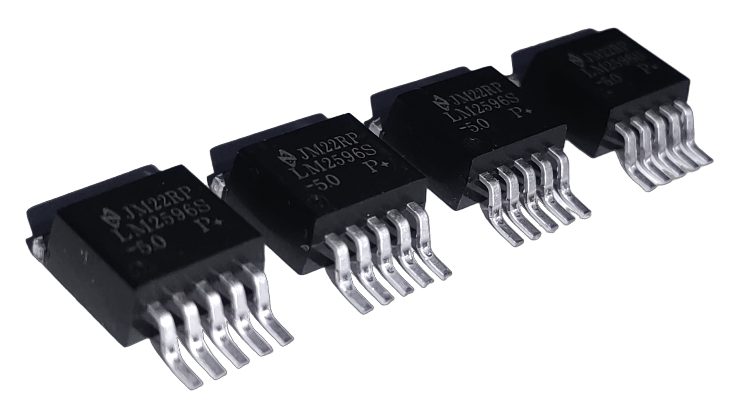

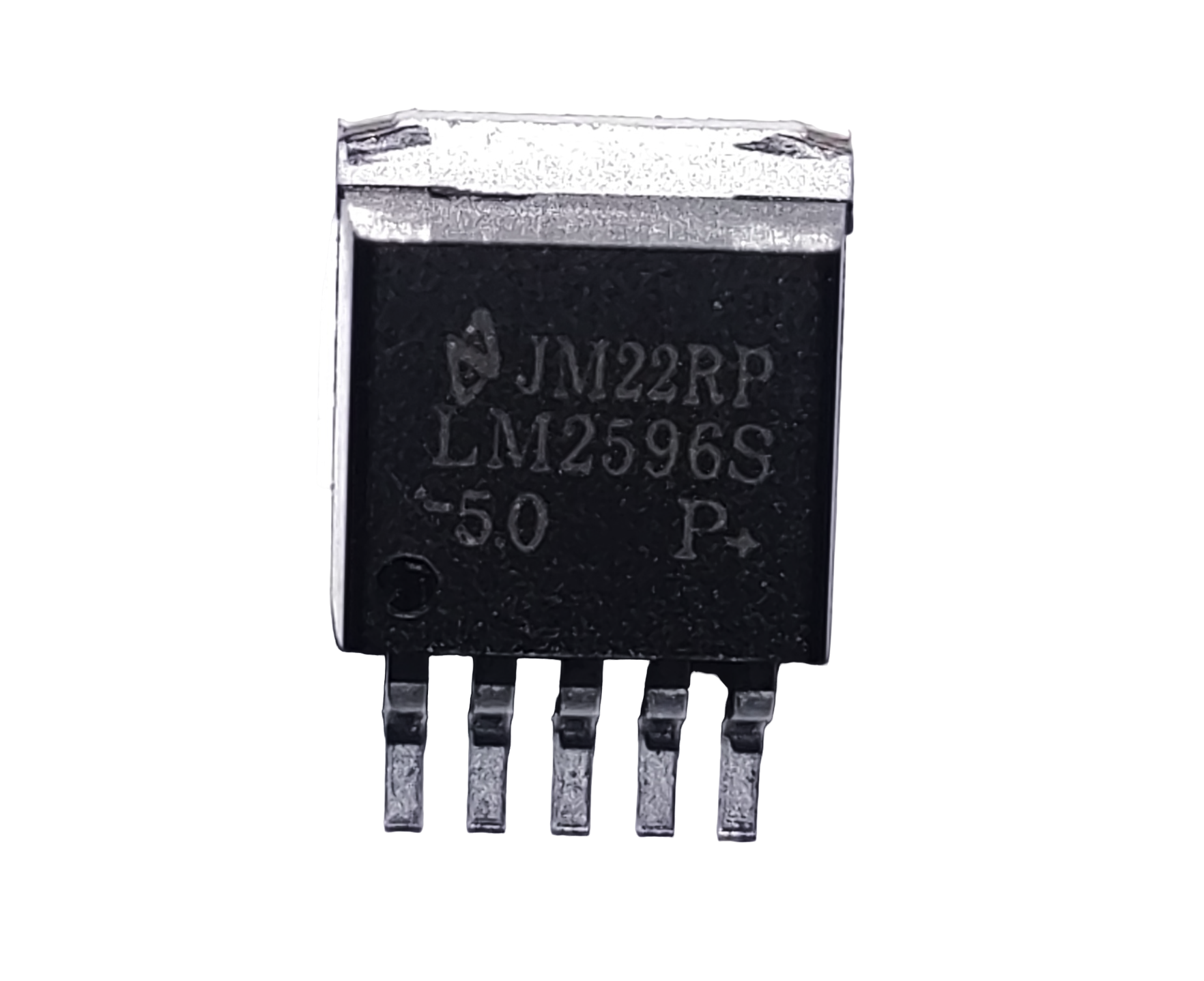

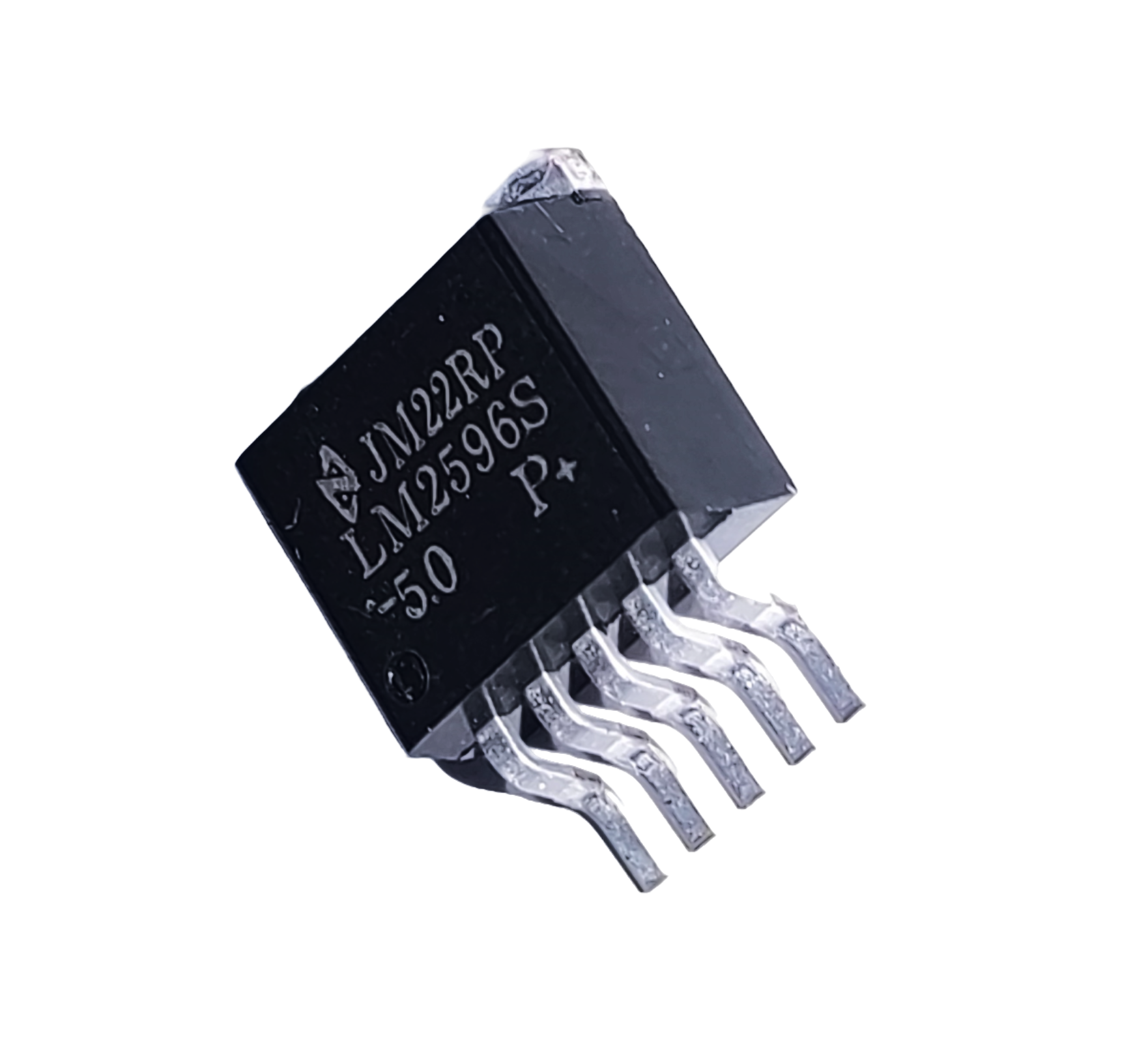

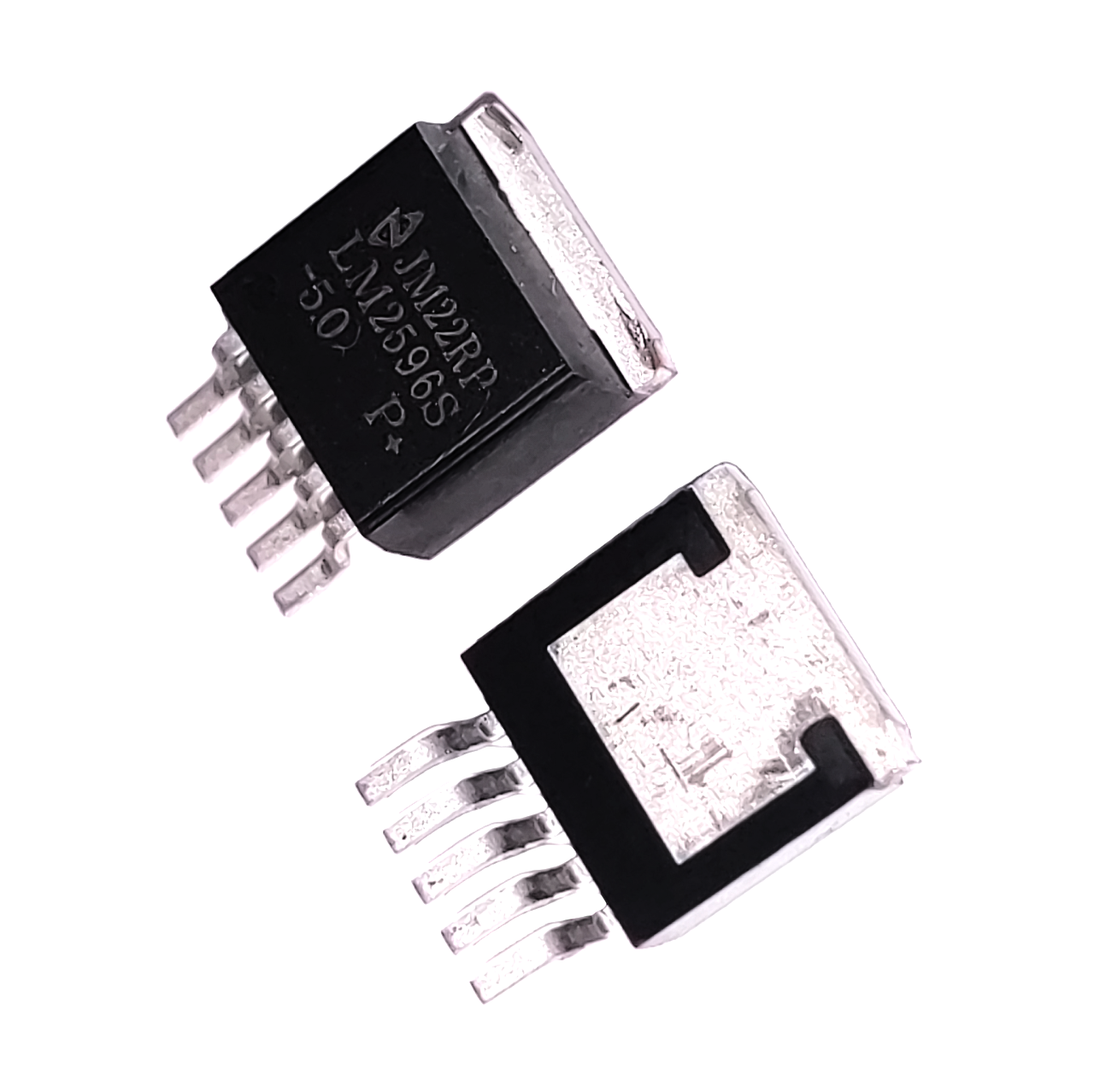

LM2596S SMD Step-Down Regulator IC (5–40 V Input)

The LM2596S 3.3 V and 5 V switching regulator ICs efficiently reduce a higher input voltage. Maximum input voltage: 40 V.
Choose variant
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Choose variant Please choose a variant first.

Choose variant – Voltage

Please choose a variant first.

Internal code:
Units per package 1 piece
Unit of measure piece
Measurement quantity 1 piece
Input voltage5V-40V
Output voltage5V, 3,3V
Current3A
Country of importChina

Product details

LM2596S

voltage regulator operates with an input voltage of up to 40V, offering flexibility across many applications. These regulator ICs are compact and easy to install, making them ideal for efficient, space-saving designs.

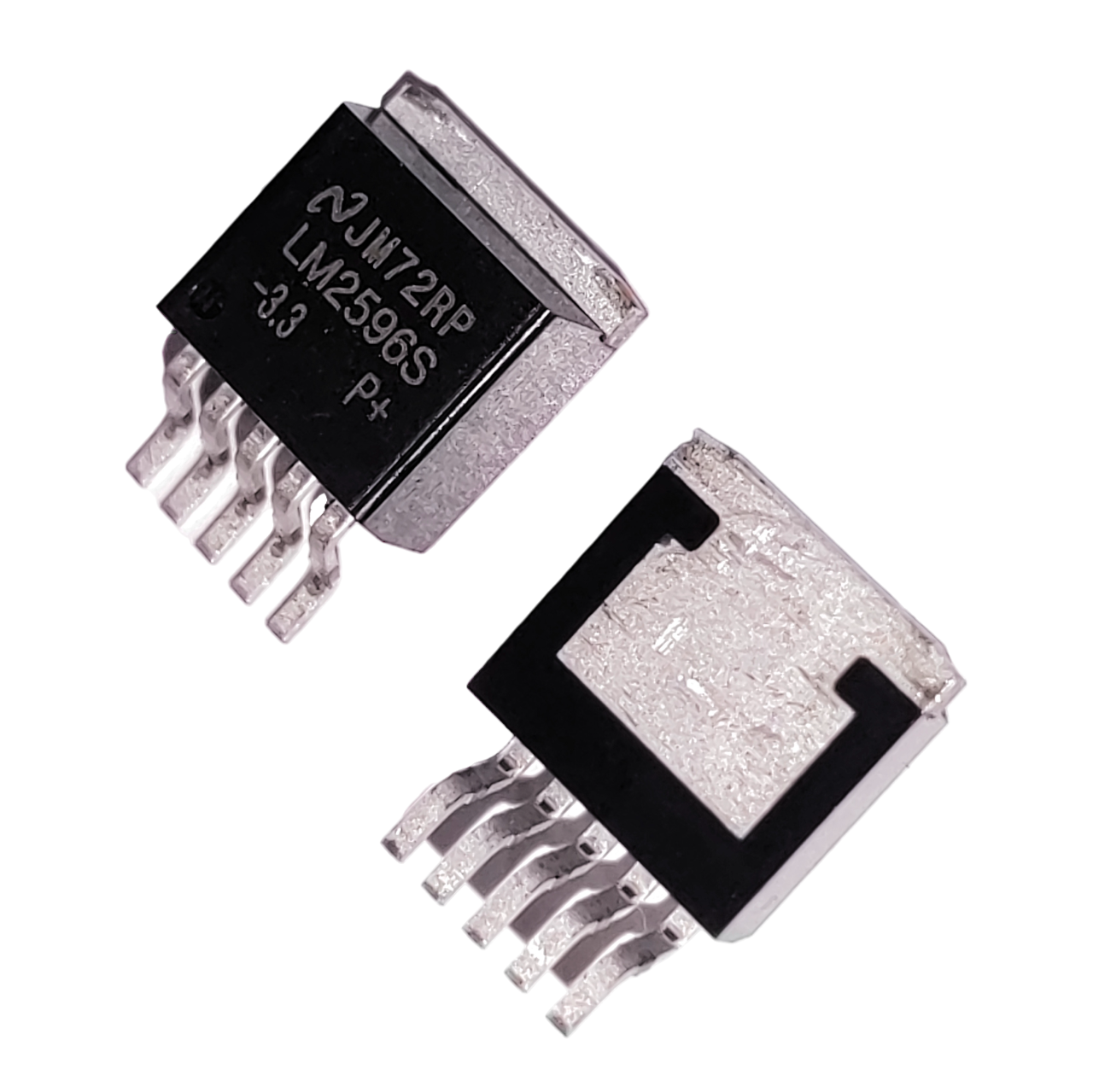

Two versions of the LM2596Sare available: one with a 5V output and another with a 3,3Voutput. Both can handle currents of up to 3A.

10 creative applications for the LM2596S IC:

  1. Powering LED lighting
  2. Powering motors
  3. Voltage regulation in solar systems
  4. Powering Arduino projects
  5. Powering model aircraft and drones
  6. Supplying batteries in backup power systems
  7. Powering small appliances and electronics
  8. Voltage regulation in instruments and measurement equipment
  9. Powering fans and cooling systems
  10. Powering home devices such as LED lights and speakers.



LM2596S Datasheet

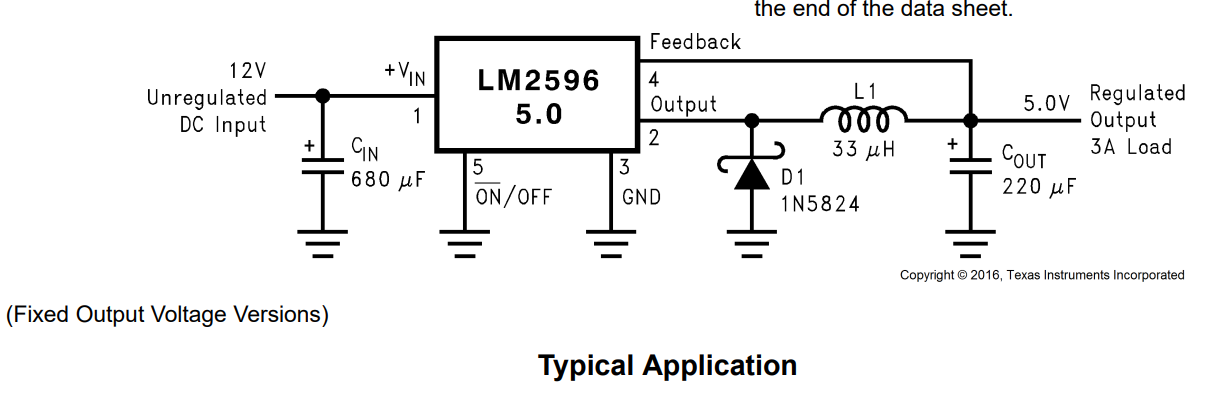

Minimum external components for the 3.3 V and 5 V versions:

LM2596
