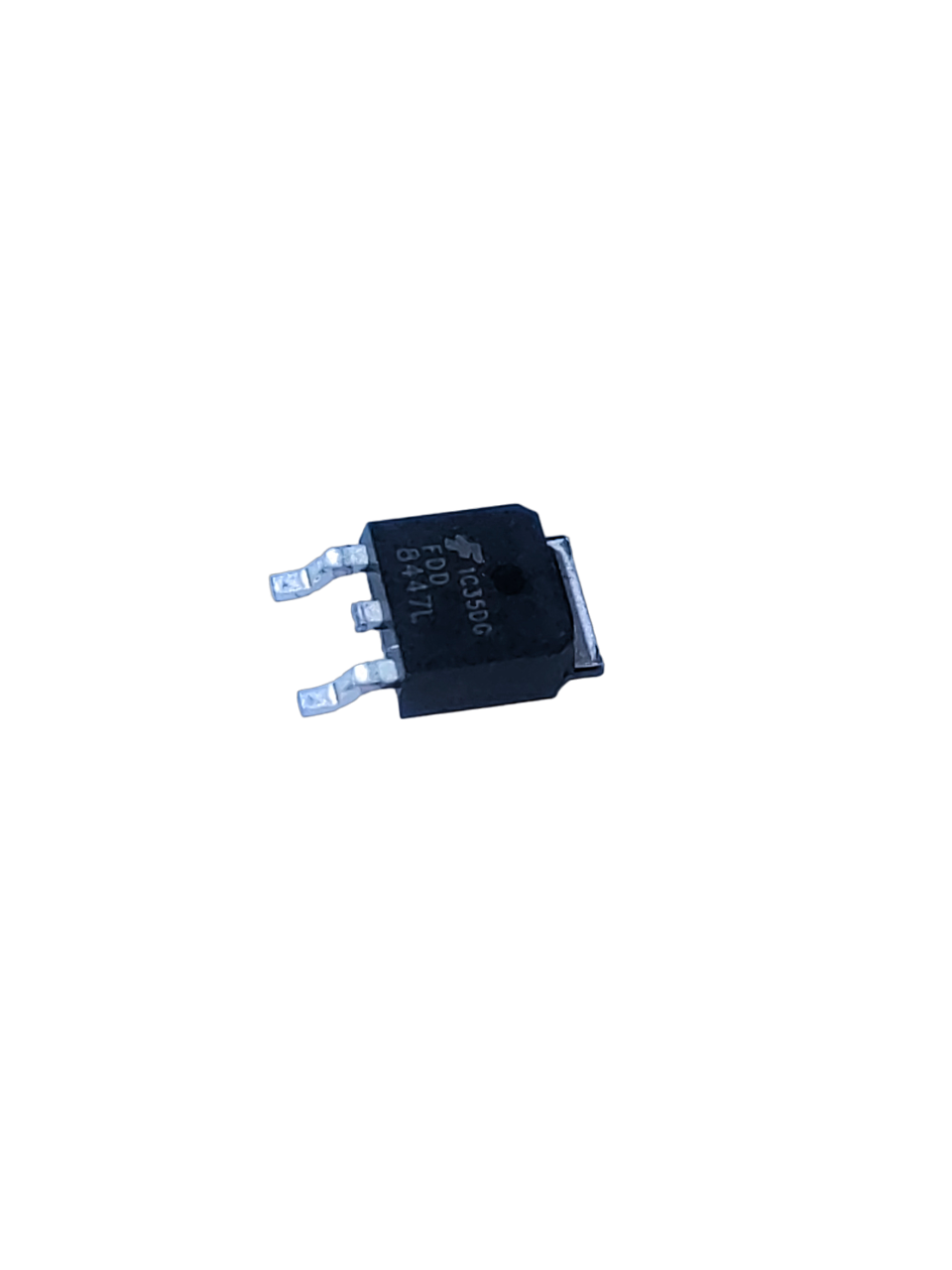

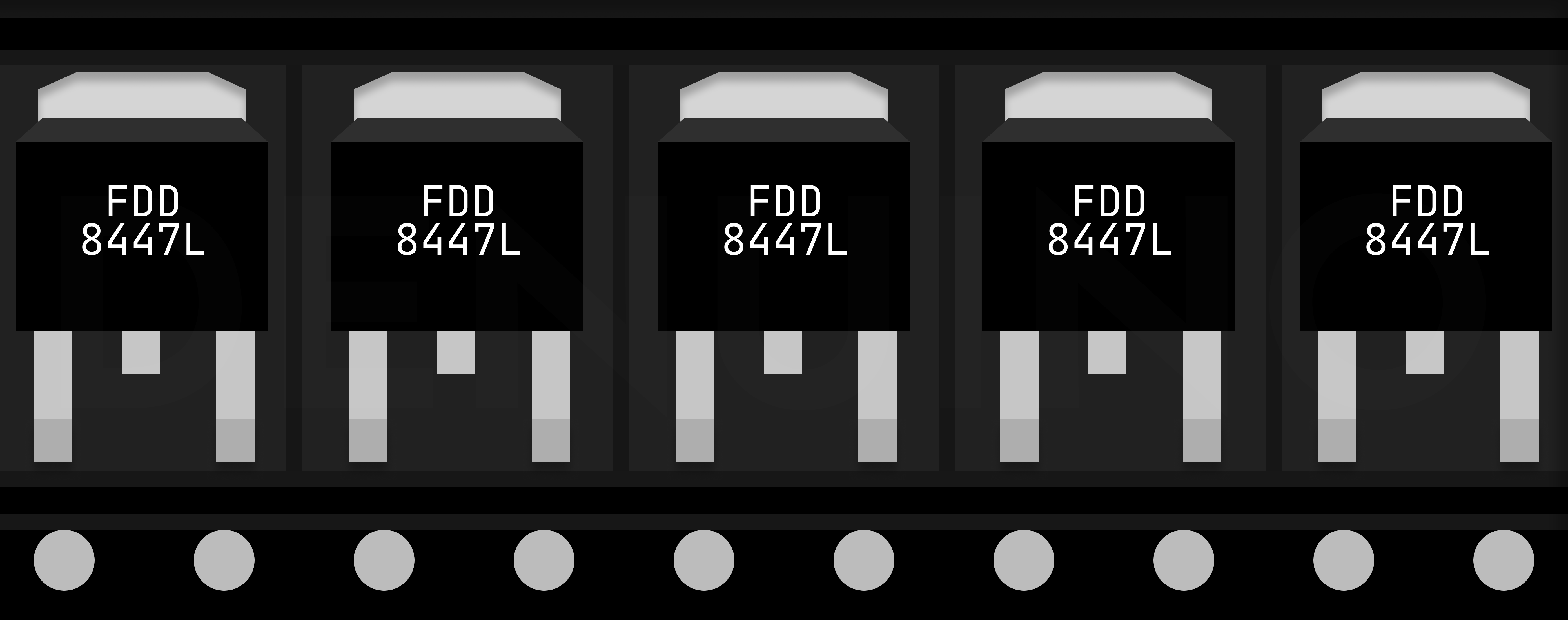

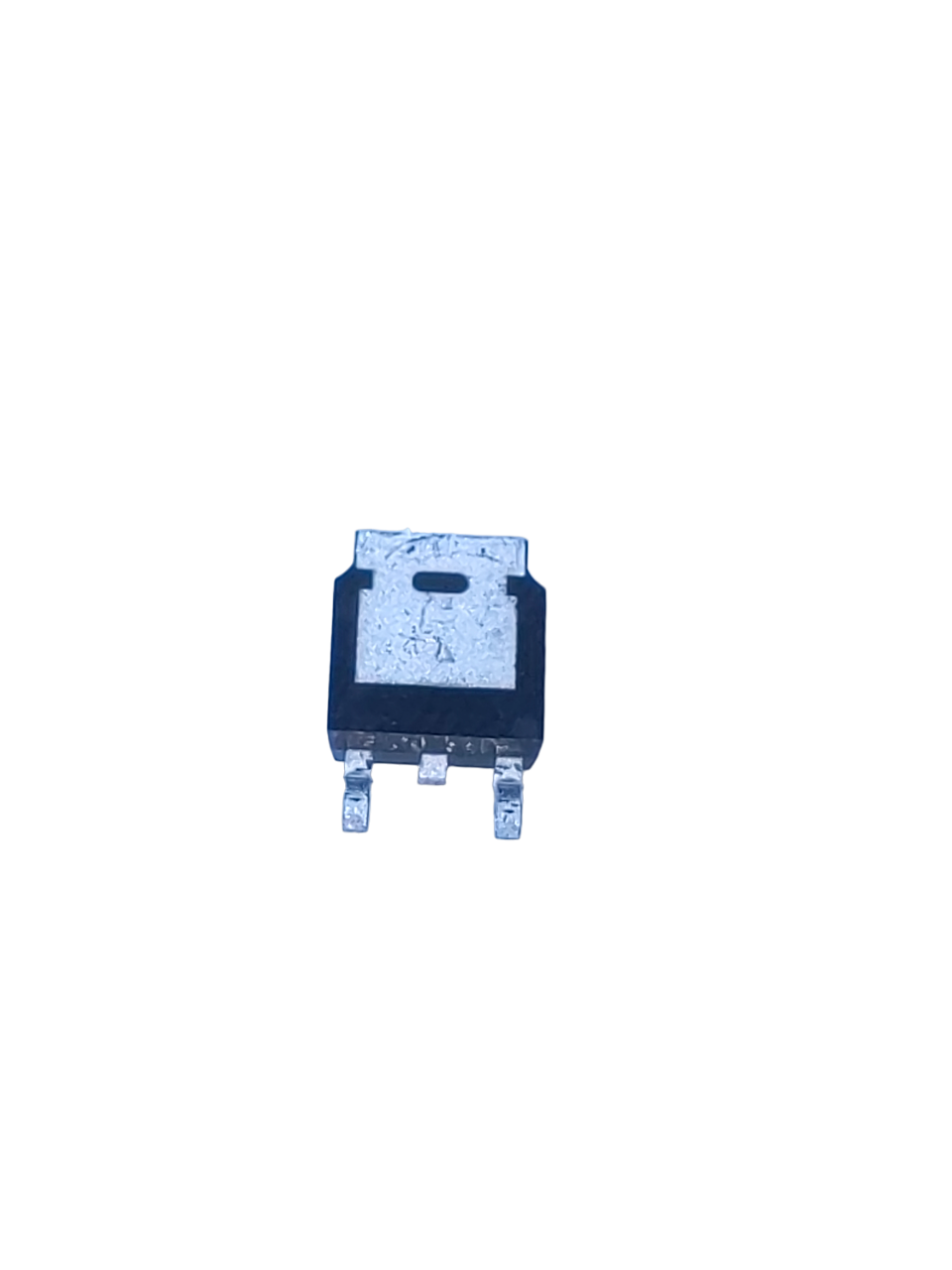

FDD8447L MOSFET, TO-252, 40 V / 50 A

The FDD8447L is a high-current, low-resistance MOSFET suitable for switch-mode power supplies, motors, relays and power-control circuits.
0.49 EUR
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Stock 10 piece · In stock
Internal code: 23141177
Units per package 1 pcs
Unit of measure pcs
Measurement quantity 1 pcs
Country of originChina
Gate voltage0-20V Max.
Maximum current50A
Output voltage40V Max.
Weight 0.001 kg
Length 1 cm
Width 0.6 cm
Height 0.2 cm

Product details

Specifications:

  • Maximum voltage: 40V
  • Maximum current: 50A
  • Continuous current: 40A
  • Gate voltage: 0-20V
  • Operating temperature: -55 °C to 150 °C

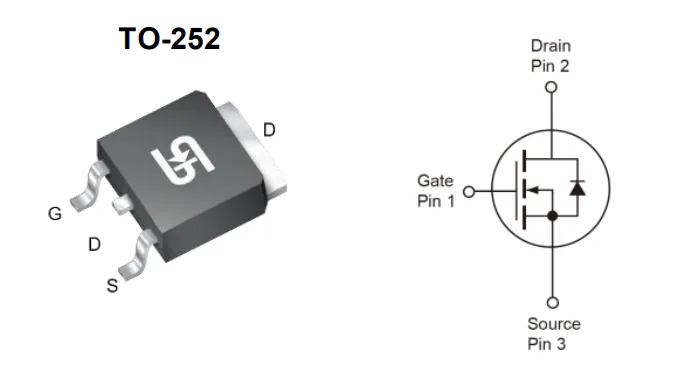

  • Package: TO-252

Advantages:

  • High maximum and continuous current ratings
  • Fast switching
  • Long service life
  • Low cost

Applications:

  • Switch-mode power supplies
  • Motors
  • Relays
  • Power controllers
  • DC switching

FDD8447L-888879 DATASHEET

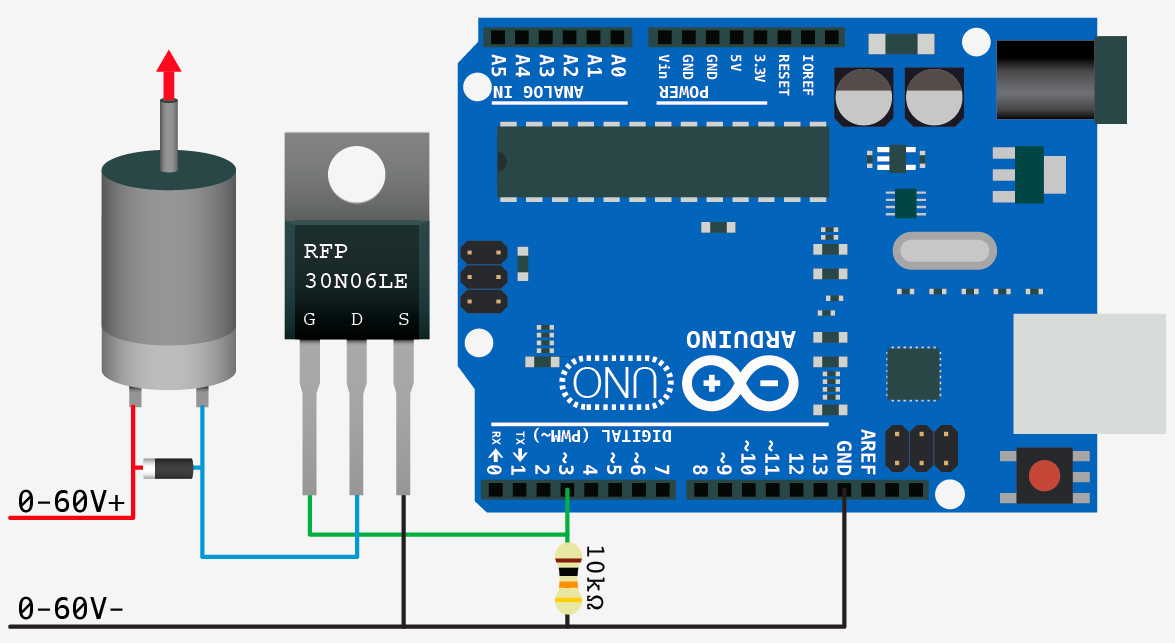

Example connection to Arduino UNO:

A 10k resistor is used to prevent reverse voltage flow and protect the microcontroller from damage.



I/O:
