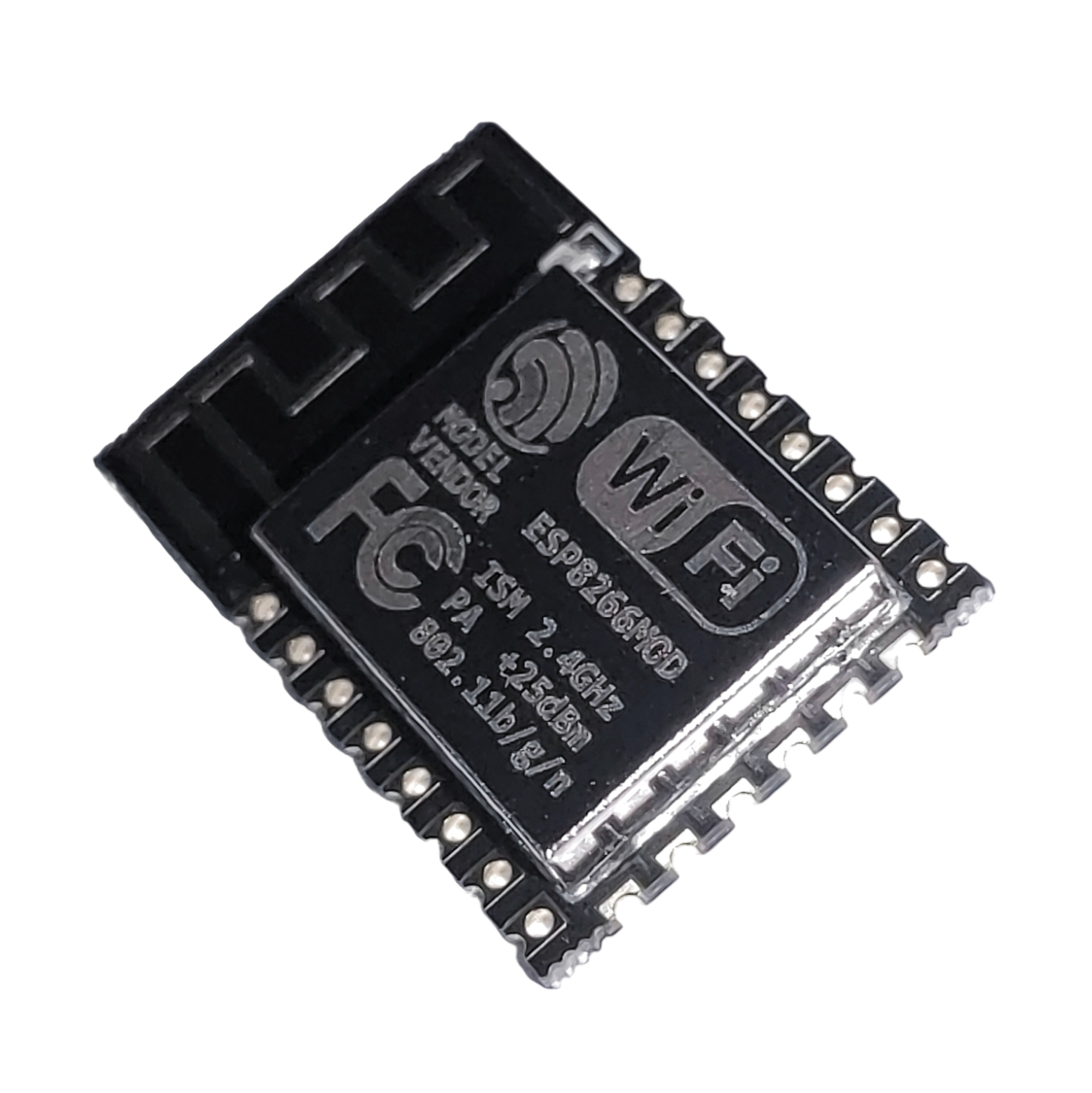

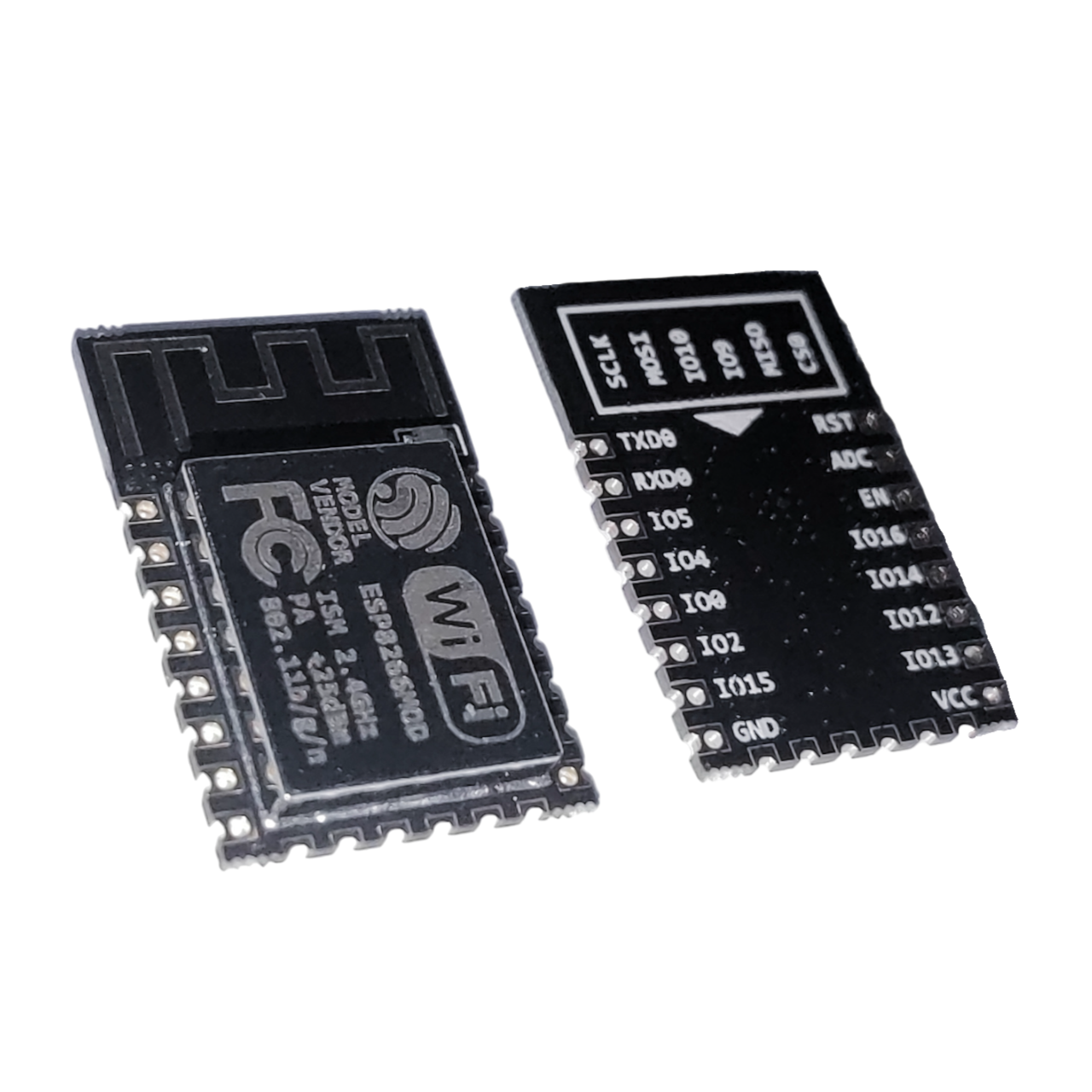

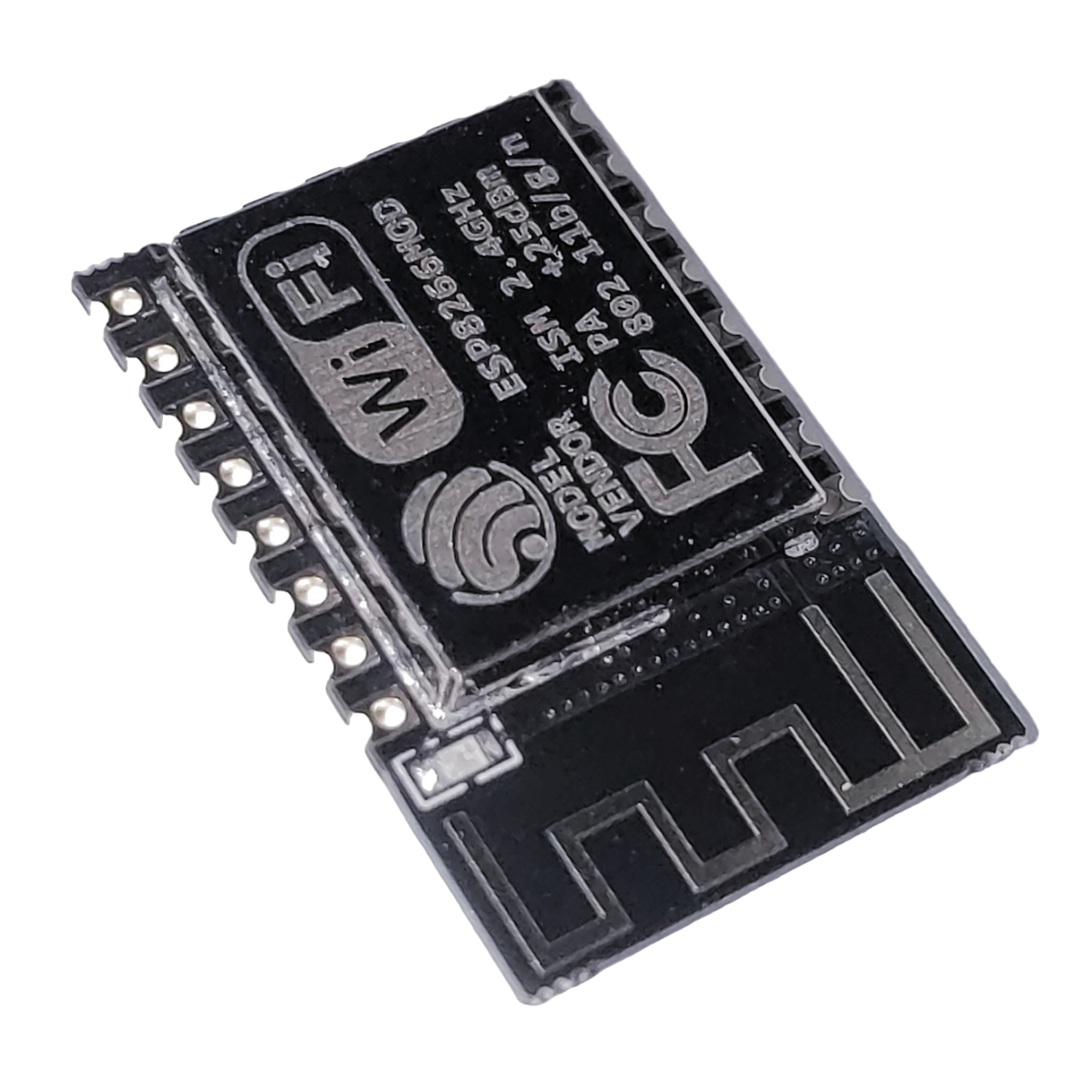

ESP-12F MODULE

An excellent choice for IoT projects! This module provides reliable WiFi connectivity and ample flash memory. Its compact size and low power consumption make it suitable for applications such as smart-home devices, sensors and more. With WiFi connectivity, you can conveniently program the module using Arduino IDE or another development environment. ESP12F is an affordable, high-performance module.

TECHNICAL SPECIFICATIONS

Model ESP-12F
MCU: low-power, 32-bit
ADC: 10-bit analog-to-digital converter
Peripherals: SDIO 2.0, UART, HSPI, I2C, I2S, IRDA, GPIO, PWM

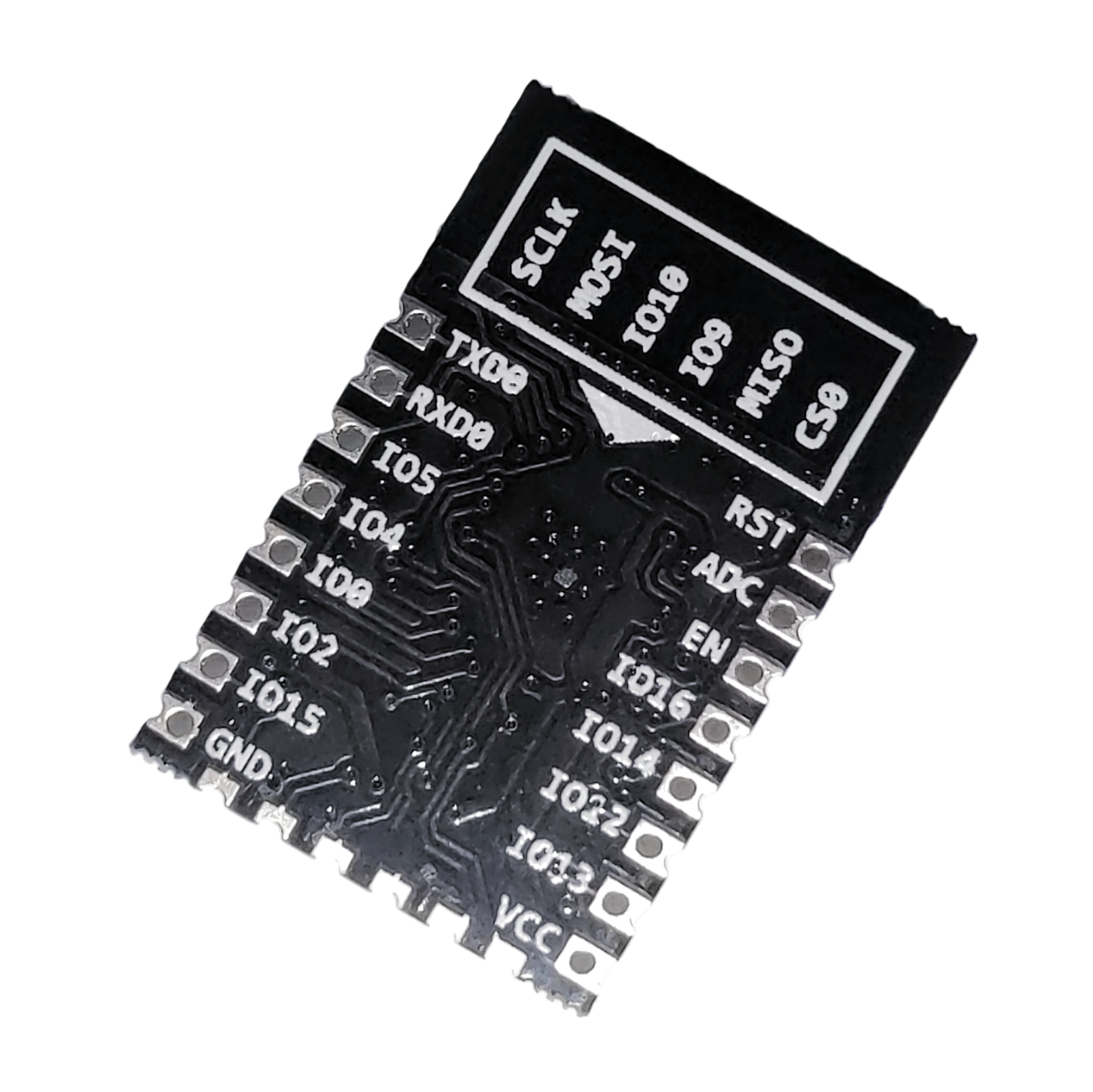

Number of pins: 18 total, 10 GPIO
Networking: TCP/IP protocol stack, supports antenna diversity
Network protocols: IPv4, TCP, UDP, HTTP, FTP
Infrastructure modes: STA, AP, STA+AP
Encryption: WEP, TKIP, AES

Module controller: ESP8266EX microcontroller

WiFi

802.11 b/g/n, 2.4–2.5 GHz (2400–2483.5 MHz)
(supports WPA, WPA2)
RF switch: integrated TR switch, balun, LNA and power amplifier
Transmission modes: STBC, 1×1 MIMO, 2×1 MIMO
Packet transmission: A-MPDU, A-MSDU, 0.4 s guard interval

GENERAL DATA

Operating temperature: −40°C to +125°C
Operating voltage: 3.0–3.6 V
Operating current: average 80 mA
Standby power consumption < 1,0 mW (DTIM3)
Deep sleep power < 10 μA
Off-state leakage current < 5 μA
Output power: +20 dBm (in 802.11b mode)

ADDITIONAL INFORMATION

Firmware updates over UART and OTA
Supports cloud-server development

Here are some examples of what you can build with the ESP-12 module:

• Smart-home systems: The ESP-12 module is well suited to smart-home projects. For example, it can be used to build an automatic door lock controllable remotely from a phone.

• Weather station: The ESP-12 module can be used to build a weather station that continuously measures temperature, humidity and rainfall.

• IoT projects: The ESP-12 module is suitable for IoT projects, such as an intelligent air-conditioning system controlled remotely through an app.

• Robotics projects: The ESP-12 module can also be used in robotics, allowing a robot to communicate with users and carry out assigned tasks.

• Automation projects: The ESP-12 can be used to automate lighting, appliances and doors.

• Security systems: With the ESP-12 module, you can build a cloud-connected surveillance and monitoring system accessible remotely.

• IoT garden: The ESP-12 module can be used in an IoT garden to monitor plant health and soil moisture.

• Smartphone control: It can be used to build smartphone-based controls for operating home devices remotely.

• Art and creativity: The ESP-12 can be used in artistic and creative projects. For example, you can build an animated LED wall that reacts to music or audience interaction.

• Air-quality monitoring: The module can monitor air quality in different environments, such as cities and industrial areas.

• Wireless security: The ESP-12 can form part of a wireless security system for a home or office.

• WiFi bridge: The ESP-12 can act as a WiFi bridge for devices that do not connect to the internet over WiFi.

• Emergency reporting: The ESP-12 can be used to build an emergency alert system for events such as fires or earthquakes.

• Connecting IoT devices: It can link multiple IoT devices to simplify and improve control of a home or office.

• Developing new IoT projects: The ESP-12 can provide a platform for innovative IoT projects that improve people's quality of life.

These are just a few possible uses of the ESP-12 module. It is highly versatile and can support many other IoT, automation and smart-system projects.

Diagram:

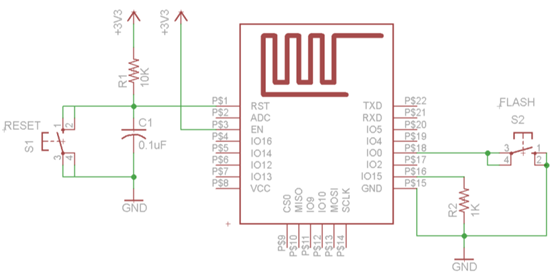

Minimum external components required for proper operation of the module
