DENUINO FUTURE V1.0 ESP32 Development Board

New product Almost sold out
Introducing a new development board from DENUINO. Step into the future with DENUINO FUTURE, combining modern technology, excellent performance and an ESP32 controller. Designed for innovative electronics projects with long-lasting construction.
Choose variant
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Choose variant Please choose a variant first.

Choose variant – Variant

Please choose a variant first.

Internal code:
Units per package 1 piece
Unit of measure piece
Measurement quantity 1 piece
Max. input voltage5V DC
Output current2A
Output voltage3.3V, 5V
ConnectorType-C
Wireless connectivityBluetooth, Wi-Fi
Flash memory4MB (4000KB)
SPIFFS1.5MB (1500KB)
CPU frequency240MHz
CPU coresXtensa dual-core
On-chip interfacesSD-card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S , GPIO, capacitive touch sensor, ADC, DAC, Hall sensor, temperature sensor
ModelDDBM20240329
RecyclingE-Waste Recycling

Product details

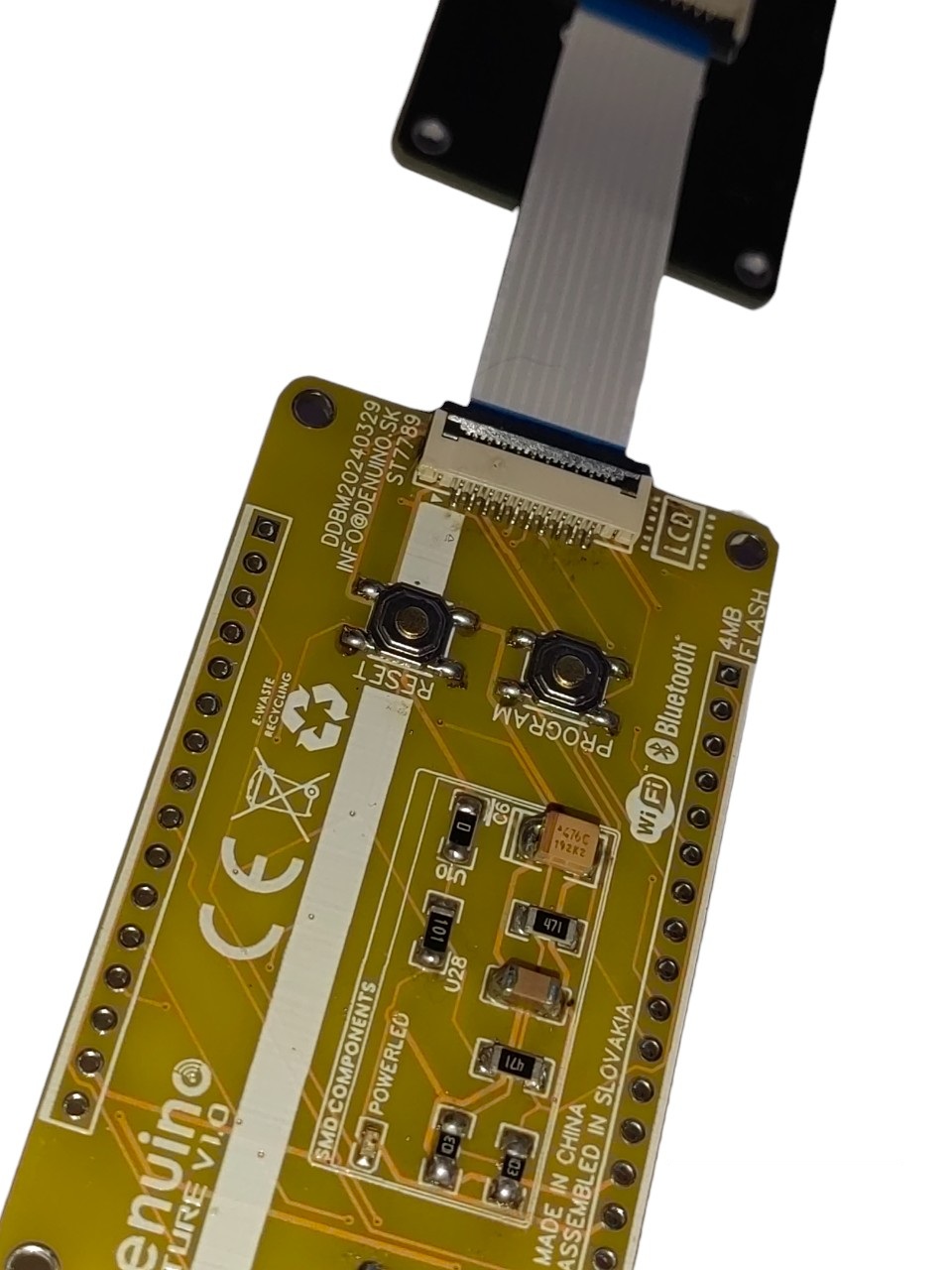

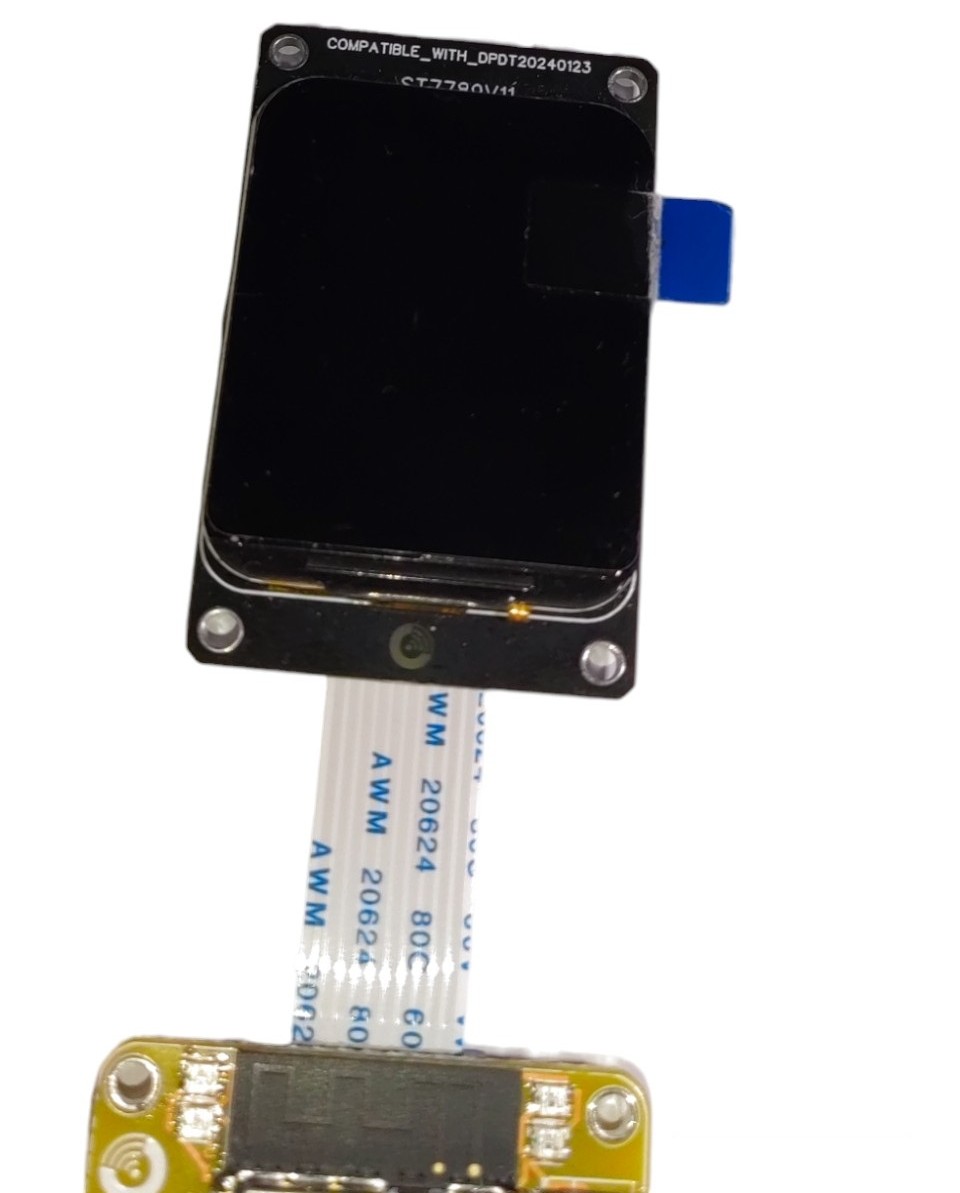

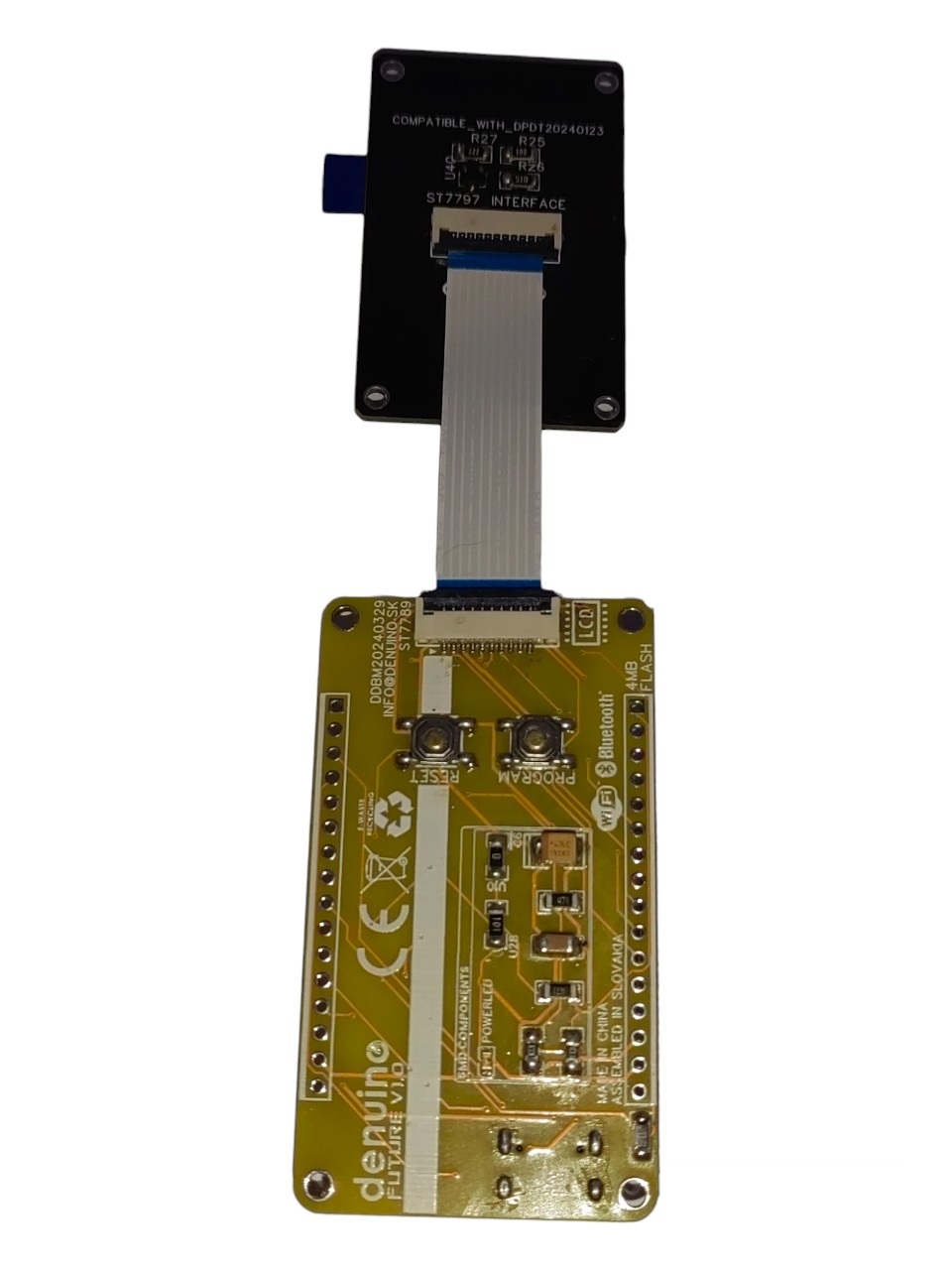

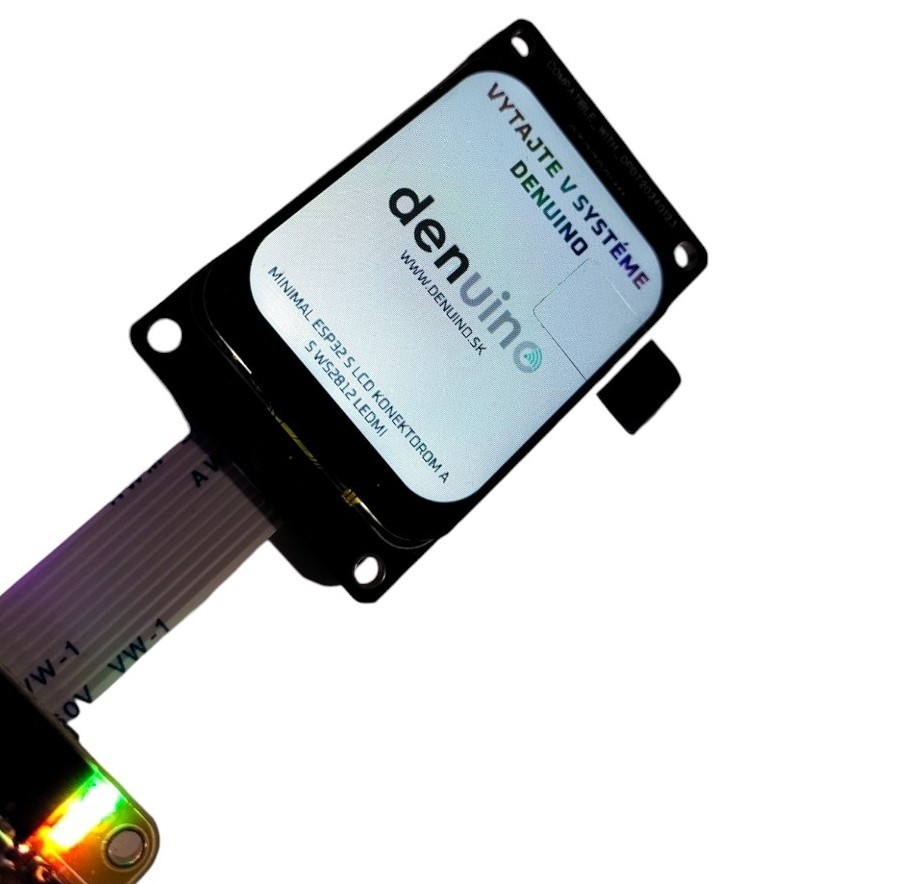

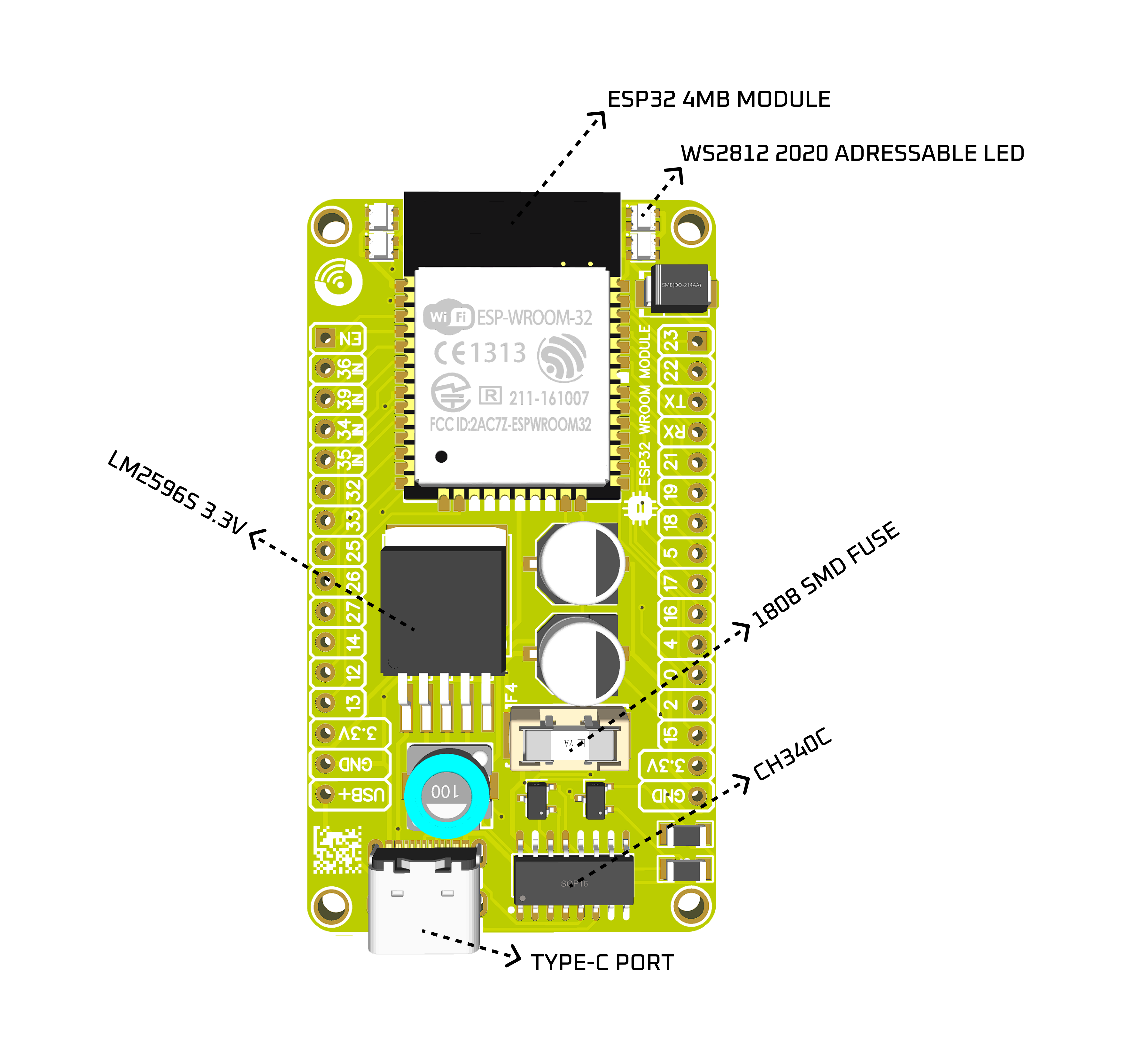

Unique features of DENUINO FUTURE V1.0 include a 2.5 A SMD fusethat can be easily replaced to protect the circuitry. An LCD connector and compatible flexible cable allow easy integration of an ST7789 display with a 1.69-inchdiagonal, bringing a visual interface to your project.

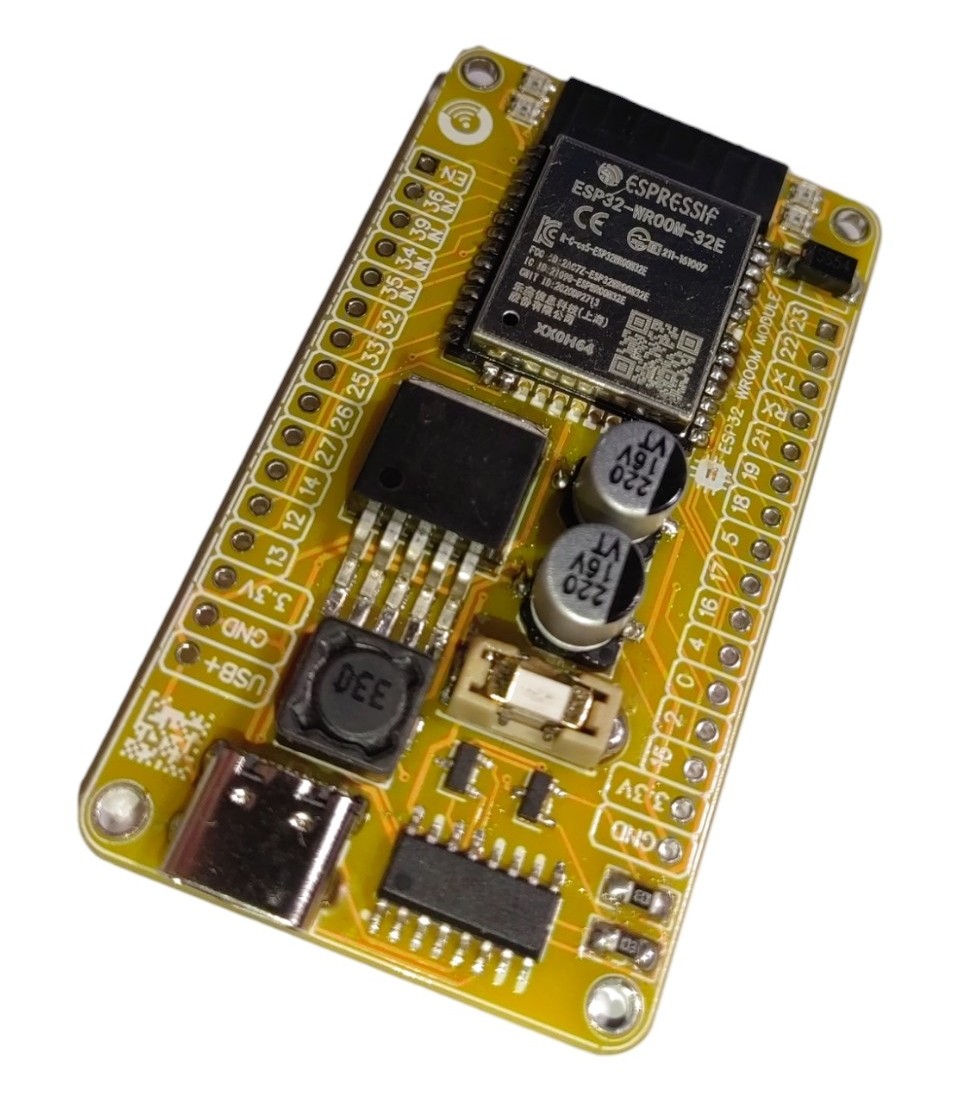

Stable operation is provided by the main LM2596S regulator with a 3.3 Voutput to supply components. (2 A) The CH340C programming chip and USB-C connector make programming straightforward for beginners and advanced users alike. The ESP32 module with 4 MB of flash memory offers space for complex programs and data.

The development board requires a5 V input supply, making it compatible with various power sources. It is the first DENUINO-branded productbeing prepared for series production.Every detail was considered during prototype testing and development to make the final product reliable and durable.

The DENUINO FUTURE V1.0 board also has 4 integrated WS2812 2020 LEDs offering flexible lighting and attractive visual effects. These LEDs enable dynamic, colourful status indicators and improve the appearance of projects. Their visual appeal complements the quality and innovative nature of your designs.

Be among the first to try the DENUINO FUTURE V1.0 board and explore new possibilities in electronics!



PACKAGE CONTENTS – WITHOUT LCD:

1 × DENUINO FUTURE V1.0 DEVELOPMENT BOARD

1 × spare 1808 SMD fuse (2.5 A)

1 × USB-C cable for programming the module

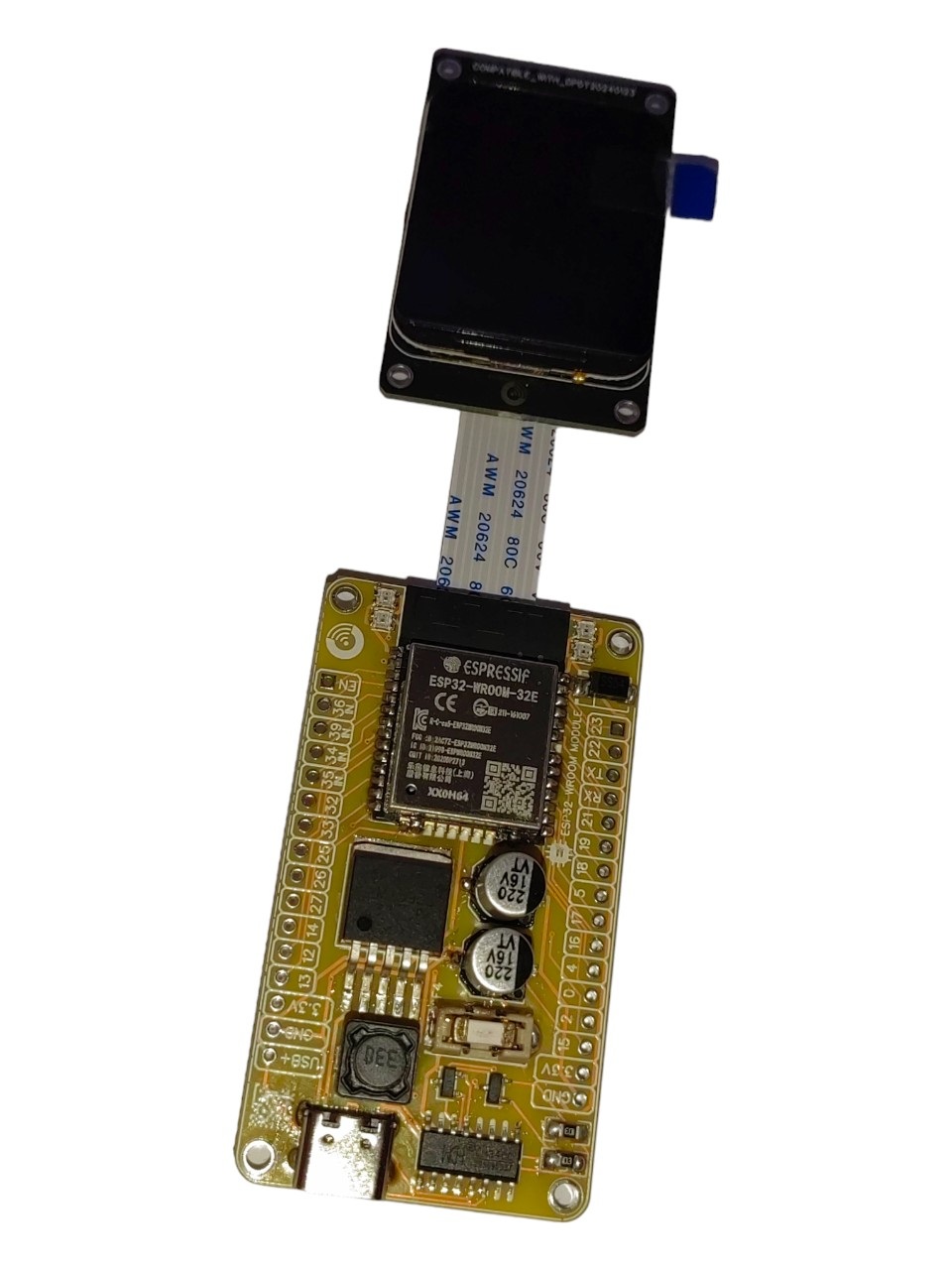

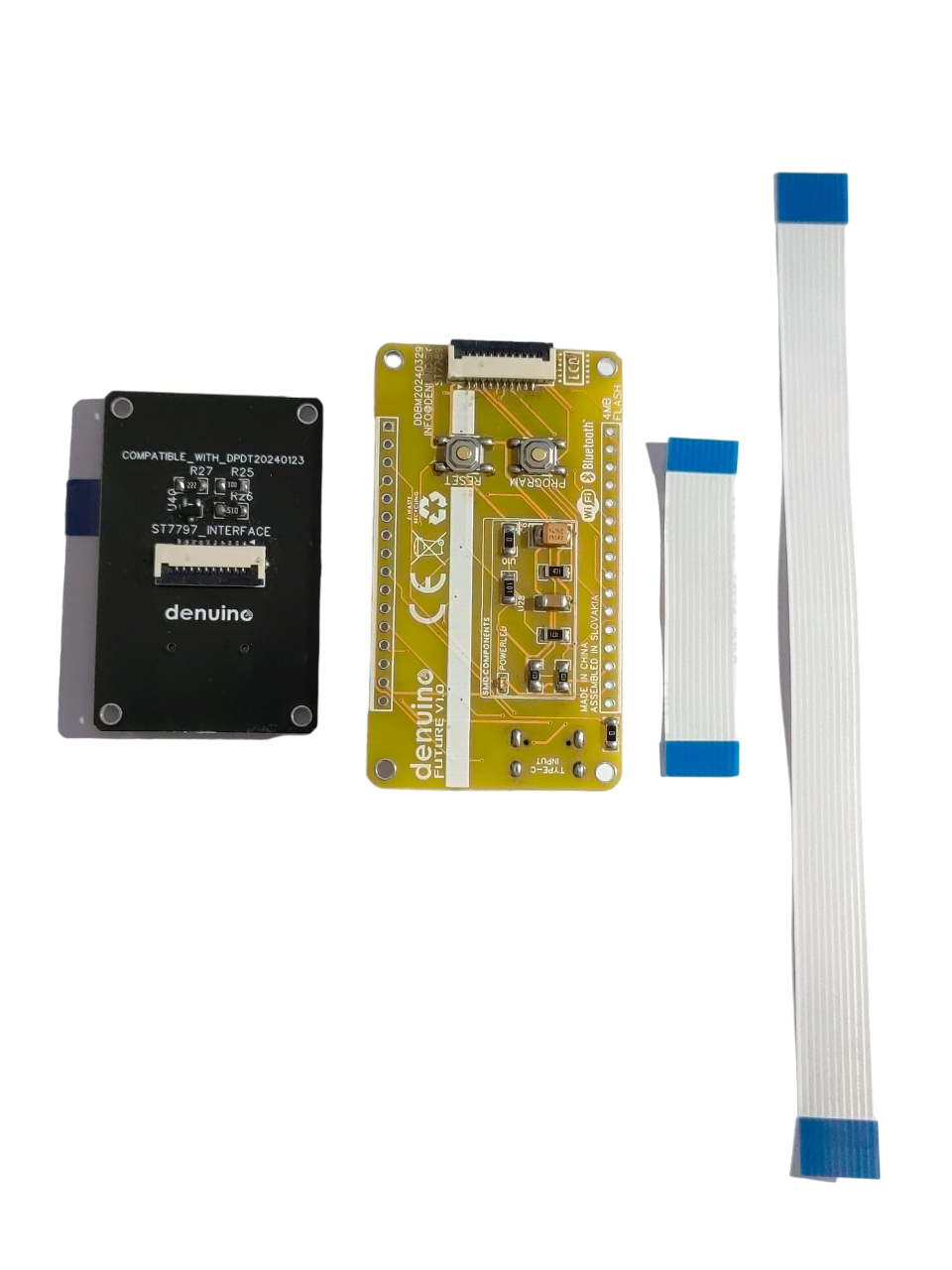

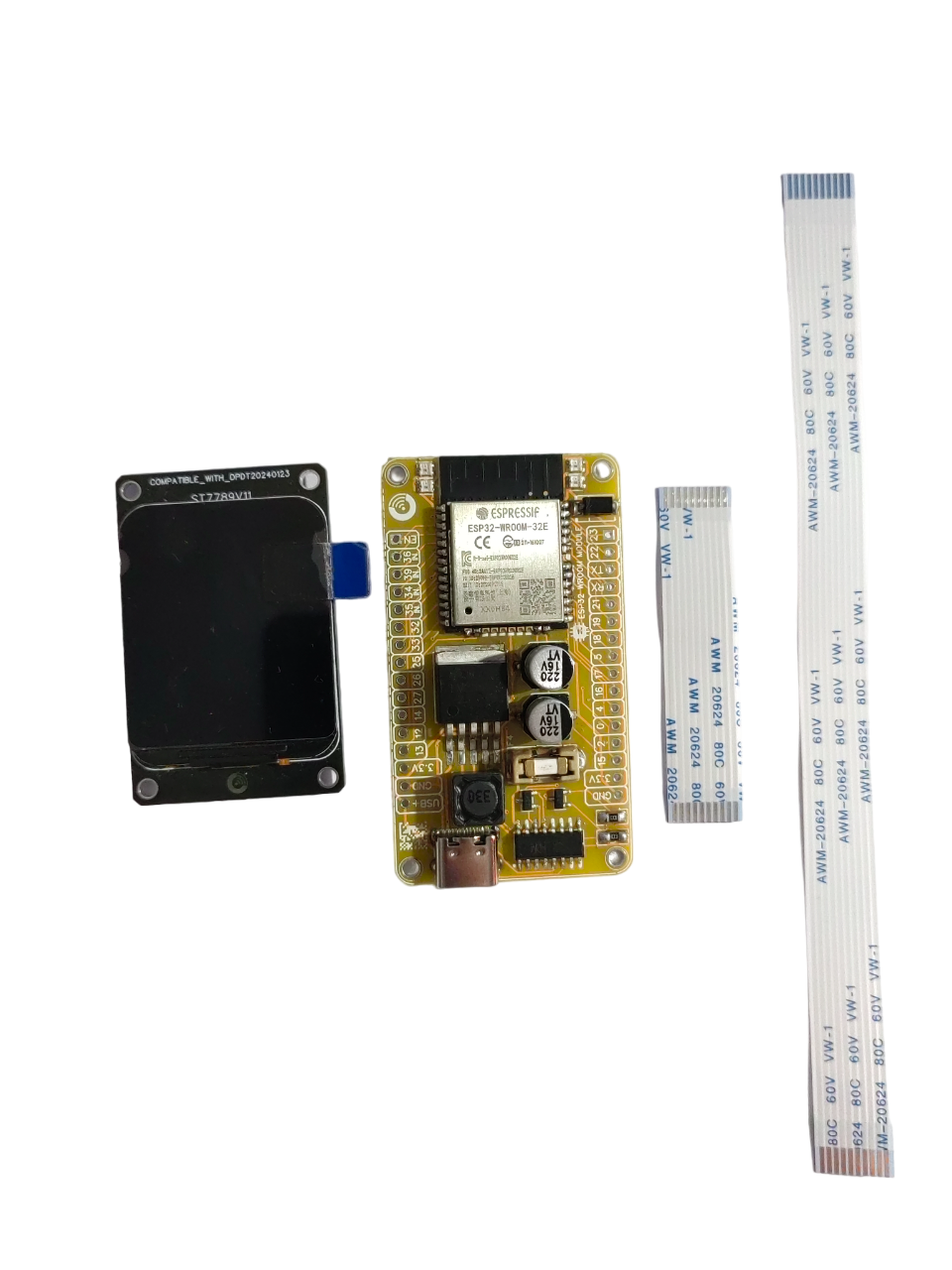

PACKAGE CONTENTS – WITH LCD MODULE:

1 × DENUINO FUTURE V1.0 DEVELOPMENT BOARD

2 × flexible cables (5 cm and 15 cm long)

1 × DENUINO ST7789 1.69-inch LCD module

1 × spare 1808 SMD fuse (2.5 A)

1 × USB-C cable for programming the module



ST7789 LCD TEST: (ARDUINO IDE TEST CODE FOR QUICK LCD MODULE TESTING)

LCD_CODE_TEST – Click here to download the files needed to operate the ST7789 LCD module.

The instructions are included in the folder as the text file "prečítaj_ma.txt".Please extract the .zip archive before opening it.

---------------------------------------------------------------------

WS2812 2020 LED TEST:(ARDUINO IDE TEST CODE FOR WS2812 LEDs)

LED_TEST – Click here to download the files needed to control the WS2812 LEDs.

The instructions are included in the folder as the text file "prečítaj_ma.txt".Please extract the .zip archive before opening it.

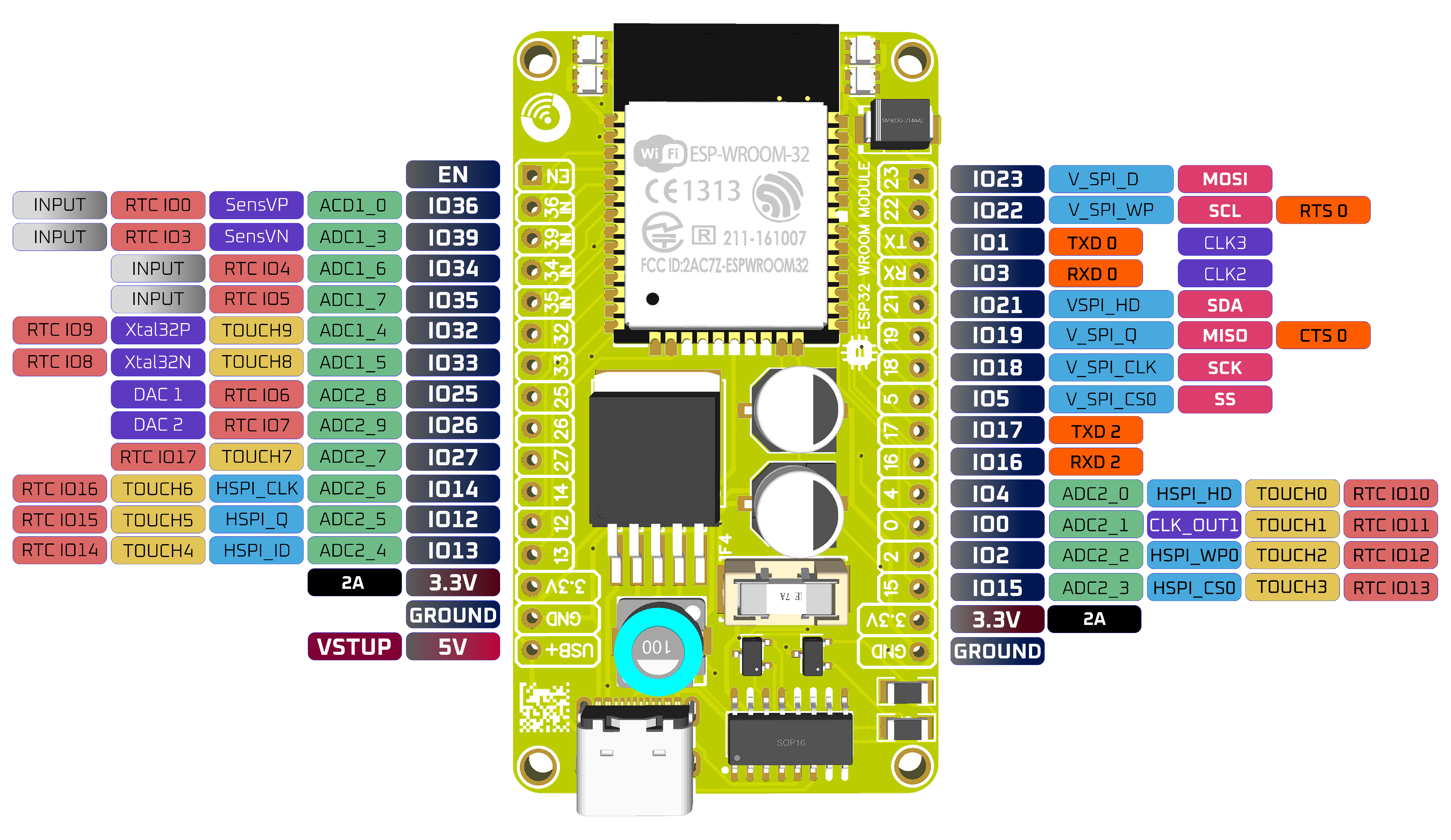

PINOUT:
