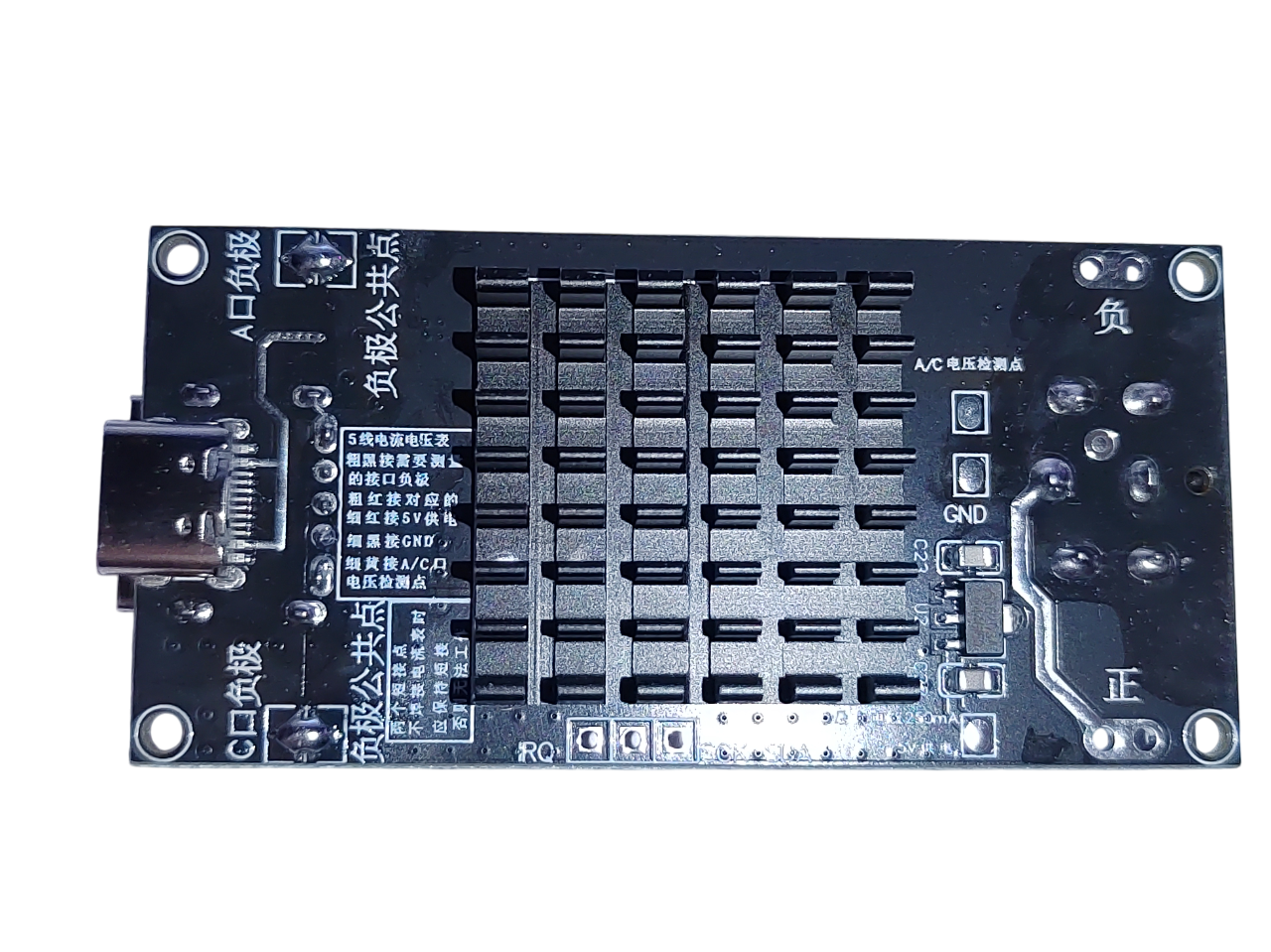

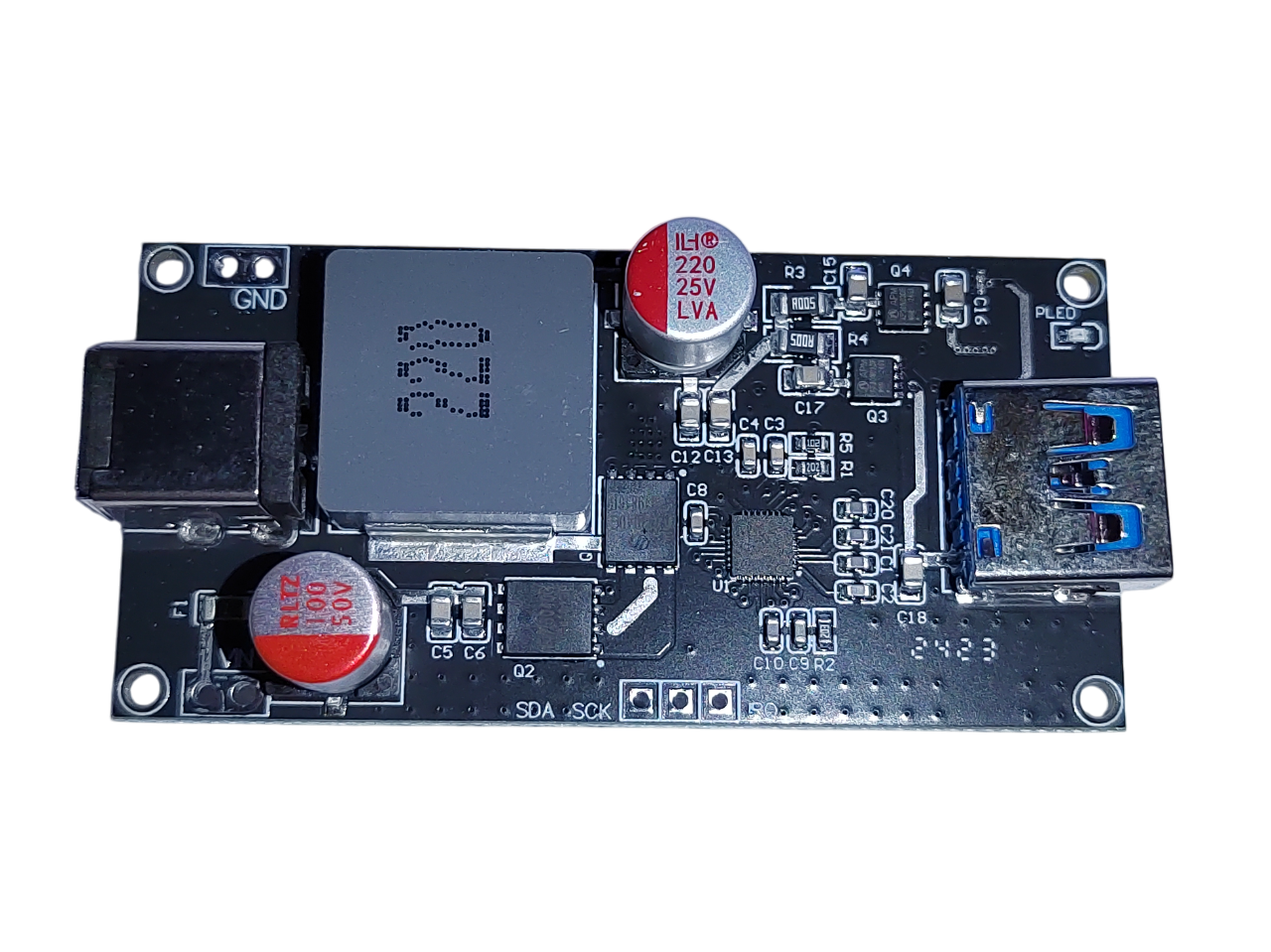

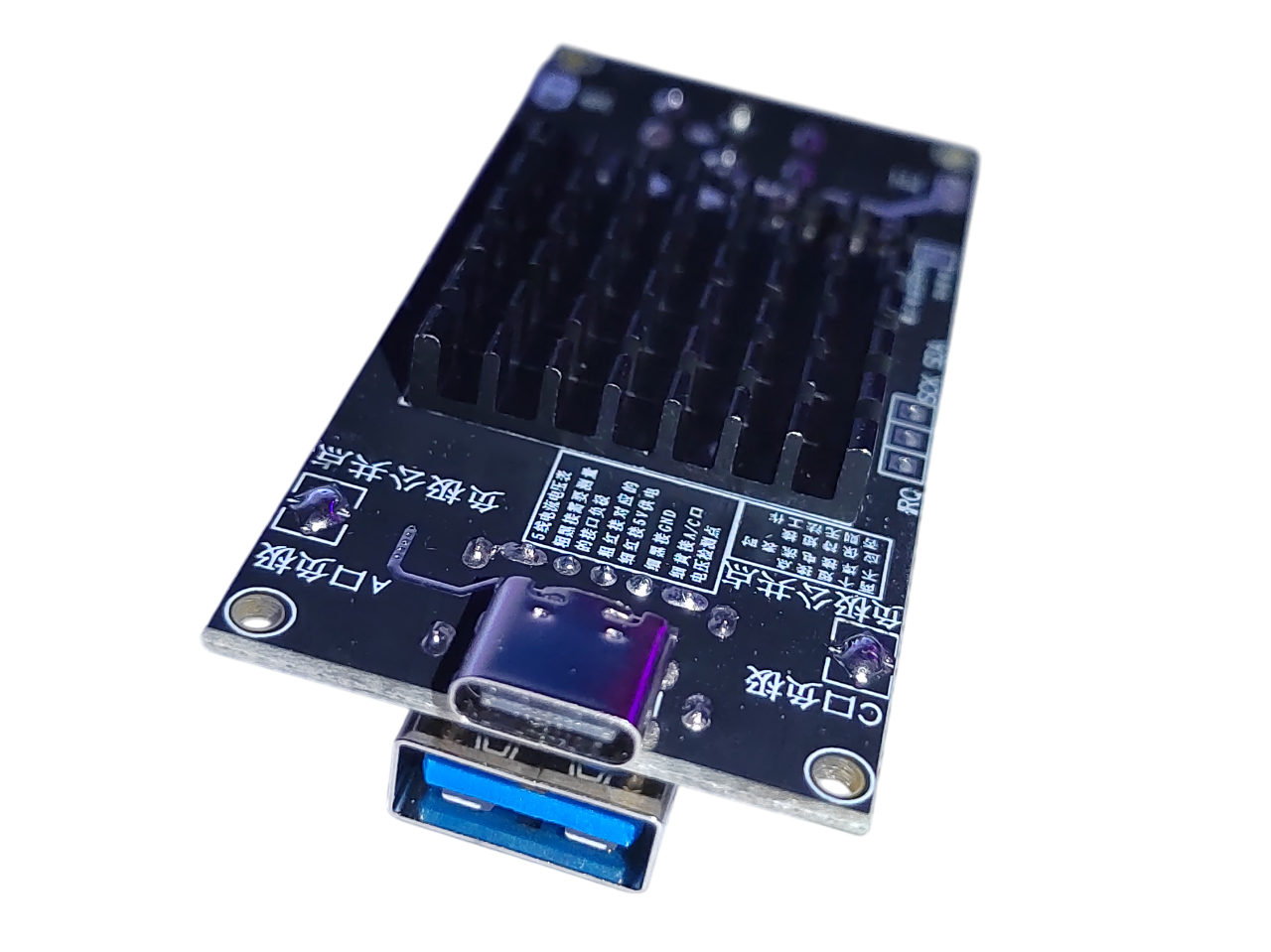

DC 6–30 V 140 W Smart Fast-Charging Module (USB-A + USB-C, PD140W, QC5, PPS)

Almost sold out
A high-power smart fast-charging module supporting multiple protocols (PD/QC/PPS), designed for desktop use or integration into custom DC power-supply solutions.
18.00 EUR
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Expected from supplier 0 piece
Internal code: 23264033
Units per package 1
Unit of measure
Measurement quantity 1
Weight 0.03 kg

Product details

Enables fast charging of a wide range of devices through its USB-A and USB-C ports, supporting protocols including PD 140 W, PPS 133 W, QC5/QC4+and more. Ideal for development stations, power modules, laptops, phones, tablets and test applications.



🔧 Technical specifications:

Parameter Value
Input voltage: DC 6 V – 30 V
Recommended power supply: DC 24 V / 7 A
Conversion type: Step-down (buck) – the input must be at least 1.2 V above the output
Maximum output power: 140 W (PD 20 V / 7 A)

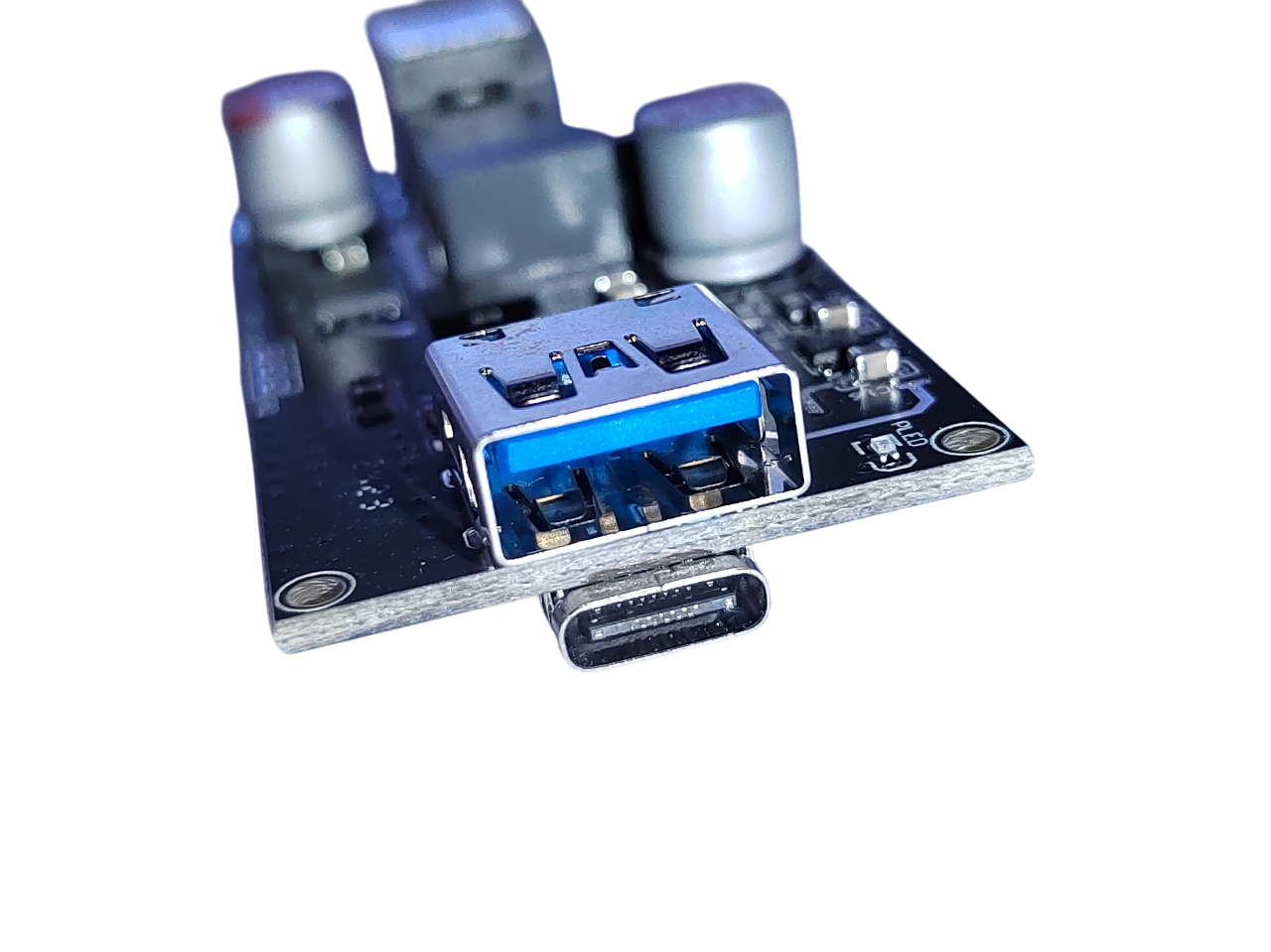

Output ports: 1× USB-A, 1× USB-C

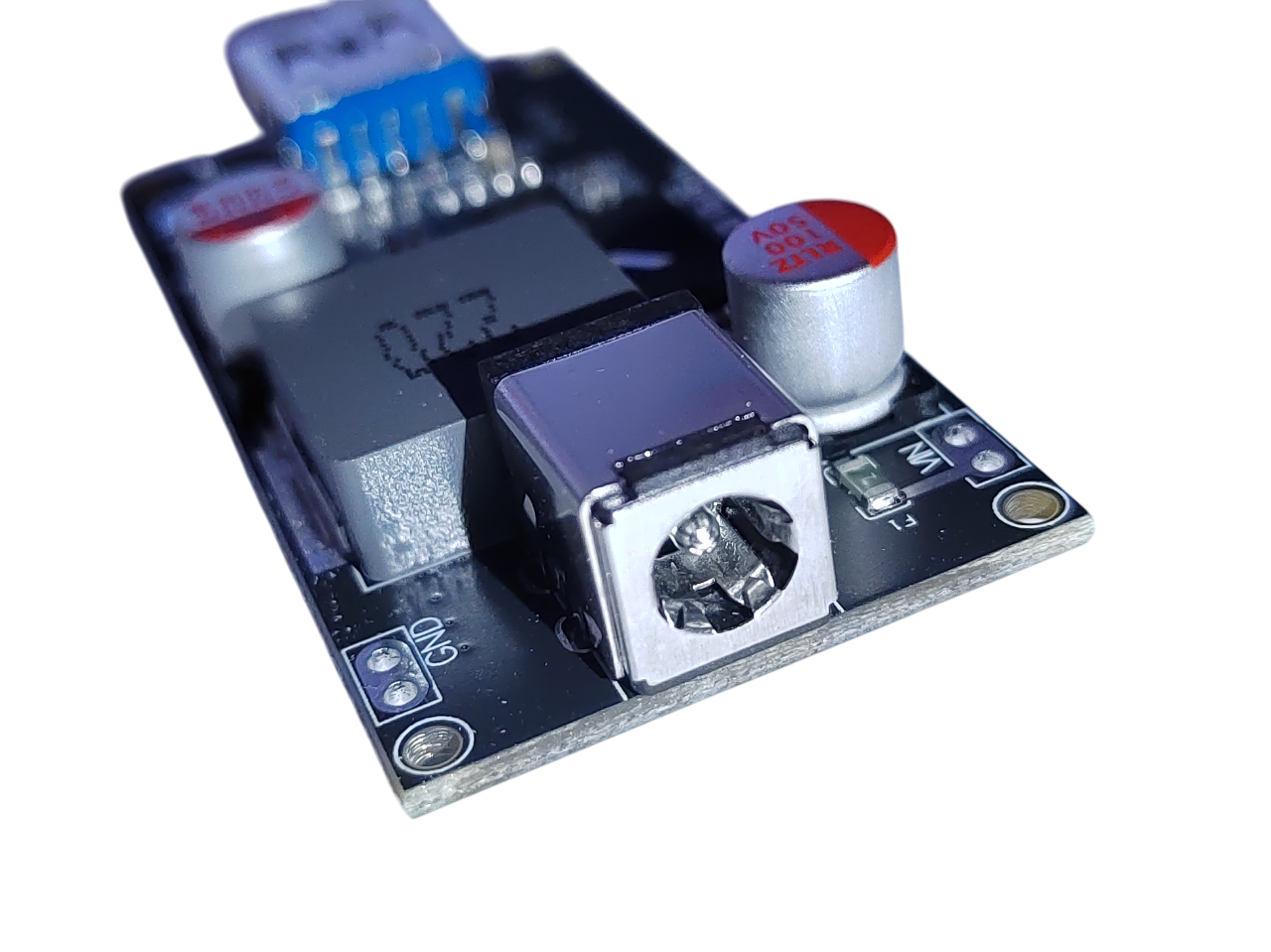

Input connector: DC5521 (5.5×2.1 mm)
Output protocols: PD 140 W, PPS 3.3–21 V 6.3 A, QC5/QC4+/QC3.0/QC2.0, AFC, FCP, SCP, SFCP
Chip operating voltage: 6–30 V DC
Module dimensions: 68 × 32 mm
Both ports can operate simultaneously: Yes (maximum 5 V 2 A + 5 V 2 A without fast charging)





Overview of supported fast-charging protocols and compatible devices

Protocol Full name Typical devices / brands
PD 140 W Power Delivery (version 3.1, EPR – Extended Power Range) Laptops (MacBook, Dell XPS, Lenovo ThinkPad), newer tablets and some high-end phones
PPS 3.3–21 V 6.3 A Programmable Power Supply Samsung Galaxy S20–S24, Note10+, Z Fold/Flip, Google Pixel 6–8, some Xiaomi / OnePlus models
QC 5 Quick Charge 5 Newer Xiaomi phones, ASUS ROG Phone and some Snapdragon 888+ devices
QC 4+ / QC 4.0 Quick Charge 4+ / 4.0 Google Pixel 3–5, LG V30, Xiaomi Mi 8, OnePlus Nord N10
QC 3.0 / 2.0 Quick Charge 3.0 / 2.0 Older Xiaomi phones, Samsung A/M series, LG G4–G6, HTC and older Chinese brands
AFC Adaptive Fast Charging Samsung Galaxy S6–S10, A series, Note 4–9
FCP Fast Charging Protocol Huawei (older models such as P9–P20, Honor 8–10)
SCP SuperCharge Protocol Huawei and Honor (e.g., P20 Pro, Mate 20 Pro, P30, P40, Mate 30, etc.)
SFCP Smart Fast Charging Protocol Some Chinese brands, e.g., Meizu, Ulefone, Doogee (non-standardized)





⚠️ Important notes:

  • The module does not support direct battery charging – it is intended solely as a power supply (for charging phones, tablets, laptops, etc.).

  • Do not connect to AC mains! Use it only with a DC power adapter.

  • For 140 W output, use at least a 24 V / 10 A adapter.

  • When powered from 12 V (e.g., in a car), PD output is limited to approximately 36 W.

  • Not all devices automatically accept fast chargingbecause of proprietary manufacturer protocols.



💡 Recommendation for stable performance:
For long-term reliable operation, we recommend using no more than 80% of the power supply's maximum rating – for example, for 100 W output use a 24 V / 5 A power adapter.



📦 Applications:

  • Universal fast charging of mobile devices

  • Solar-powered fast charging of smartphones

  • Powering laptops and tablets

  • Development and test power stations

  • DIY laboratory power solutions



✅ We tested the module with several smartphones including Honor 50, Honor 90 a Samsung Galaxy S21 – fast charging worked without issues on all devices.
