CH32V003J4M6 RISC-V Microcontroller – 16 KB Flash / 2 KB RAM

The CH32V003J4M6 is an efficient 32-bit WCH microcontroller based on the QingKe RISC-V RV32EC core. It combines good performance with low power consumption for a wide range of electronic applications.
0.89 EUR
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Stock 27 piece · In stock
Internal code: 23074676
Units per package 1 pcs
Unit of measure pcs
Measurement quantity 1 pcs
Country of importChina
Input voltage3,3V, 5V
Weight 0.001 kg

Product details

Key features of the CH32V003J4M6:

  • CPU

    • 32-bit QingKe RISC-V processor core, clocked at up to 48MHz

    Memory

    • 2KB SRAM
    • 16KB flash

    Peripherals

    • 6 available GPIO pins with interrupt support
    • 1 × USART interface
    • 1 × I2C
    • SPI is not available in the SOP8 (J4M6) package
    • 10-bit ADC with 6 channels
    • 1-wire debugging interface
    • General-purpose DMA controller
    • Timers
      • 16-bit advanced timer
      • 16-bit general-purpose timer
      • 2 × watchdog timers
      • 32-bit system timer
    • Other: unique 64-bit chip ID

    Power

    • Supply voltage: 3,3/5V

    Low-power modes

    • Sleep and standby modes

    Other

    • Power-on reset (POR), programmable voltage detector
    • Package for the CH32V003J4M6 variant: SOP8

Github Arduino IDE core – Click here

---

URL for installation directly in Arduino IDE:

https://alexandermandera.github.io/arduino-wch32v003/package_ch32v003_index.json

---

Datasheet:

CH32V003DS0

---

Important notice:

To program microcontrollers in the CH32V003 series, you must use a WCH-LinkE.

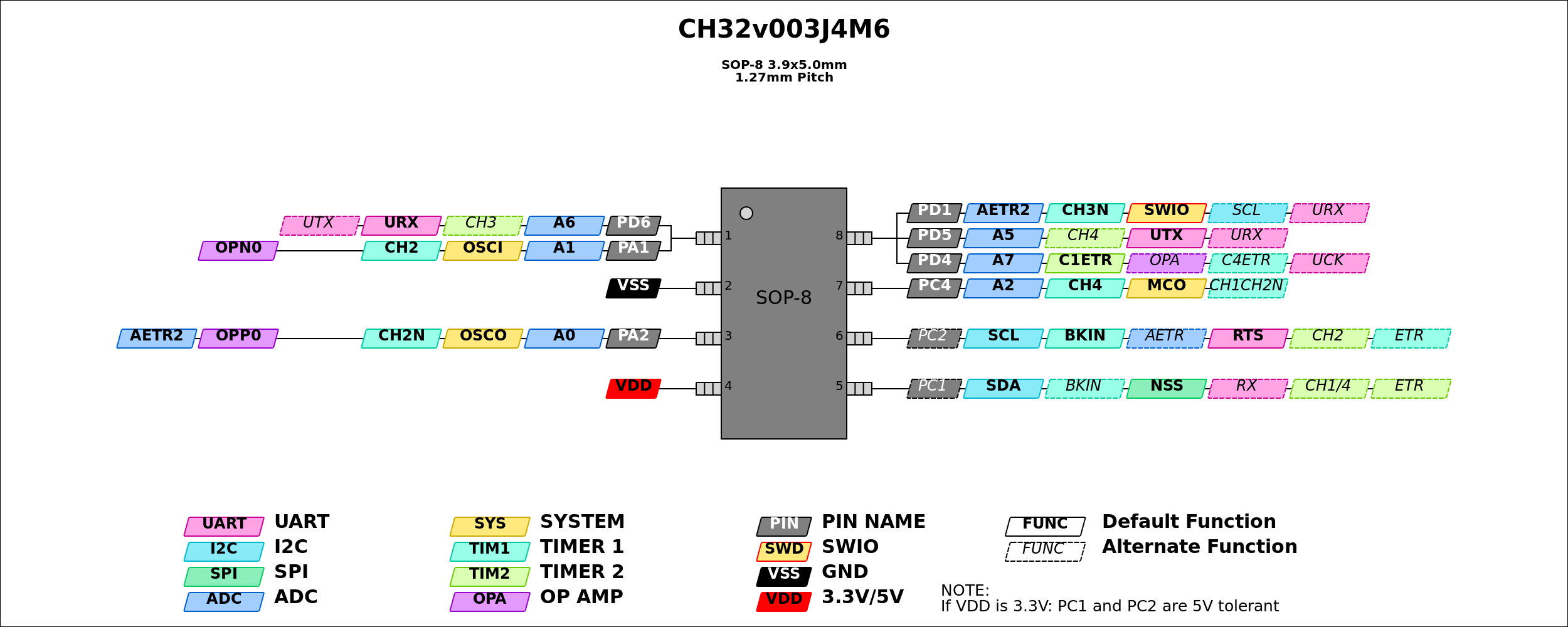

I/O:
