CH32V003F4P6 Microcontroller (64K Flash / 8K RAM)

The microcontroller operates at 3.3 V or 5 V and supports several power-saving modes, including Sleep and Standby. The described memory configuration is 2 KB SRAM and 16 KB flash.
4.37 PLN
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Stock 30 piece · In stock
Internal code: 23527363
Units per package 1 pcs
Unit of measure pcs
Measurement quantity 1 pcs
ImportChina
Input voltage3,3V, 5V
Weight 0.001 kg

Product details

  • Processor: QingKe 32-bit RISC-V2A
  • System frequency: Up to 48 MHz.
  • Memory:
    • 2 KB SRAM.
    • 16 KB Flash.
  • Supply voltage: 3.3V/5V.
  • Power-saving modes:
    • Sleep.
    • Standby.
  • Reset:
    • Power on/off reset.
    • Voltage detector.
  • DMA (Direct Memory Access): 1 group with a 1-channel controller.
  • Op-amp comparator: 1 group.
  • ADC (analogue-to-digital converter): 1 group with 10-bit resolution.
  • Timers:
    • 1 × 16-bit advanced timer.
    • 1 × 16-bit general-purpose timer.
  • Watchdog timers (WDOG): 2 clocks.
  • SysTick timer: 1×32-bit.
  • Communication interfaces:
    • 1 × USART.
    • 1 I2C group.
    • 1 SPI group.
  • I/O ports: 18 with external interrupt mapping support.
  • Chip identifier: 64-bit.
  • Serial debug interface: 1-wire (SDI).
  • Package: TSSOP20, QFN20, SOP16, SOP8.

Arduino IDE compatibility: The CH32V003F4P6 microcontroller is fully compatible with the Arduino Integrated Development Environment (IDE). This makes development and programming easier for makers and developers familiar with Arduino.



Github Core for Arduino IDE – Click here

---

Installation URL for Arduino IDE:

https://alexandermandera.github.io/arduino-wch32v003/package_ch32v003_index.json

---

Datasheet:

CH32V003DS0

---

Important notice:

Programming microcontrollers in the CH32V003 series requires a WCH-LinkE.

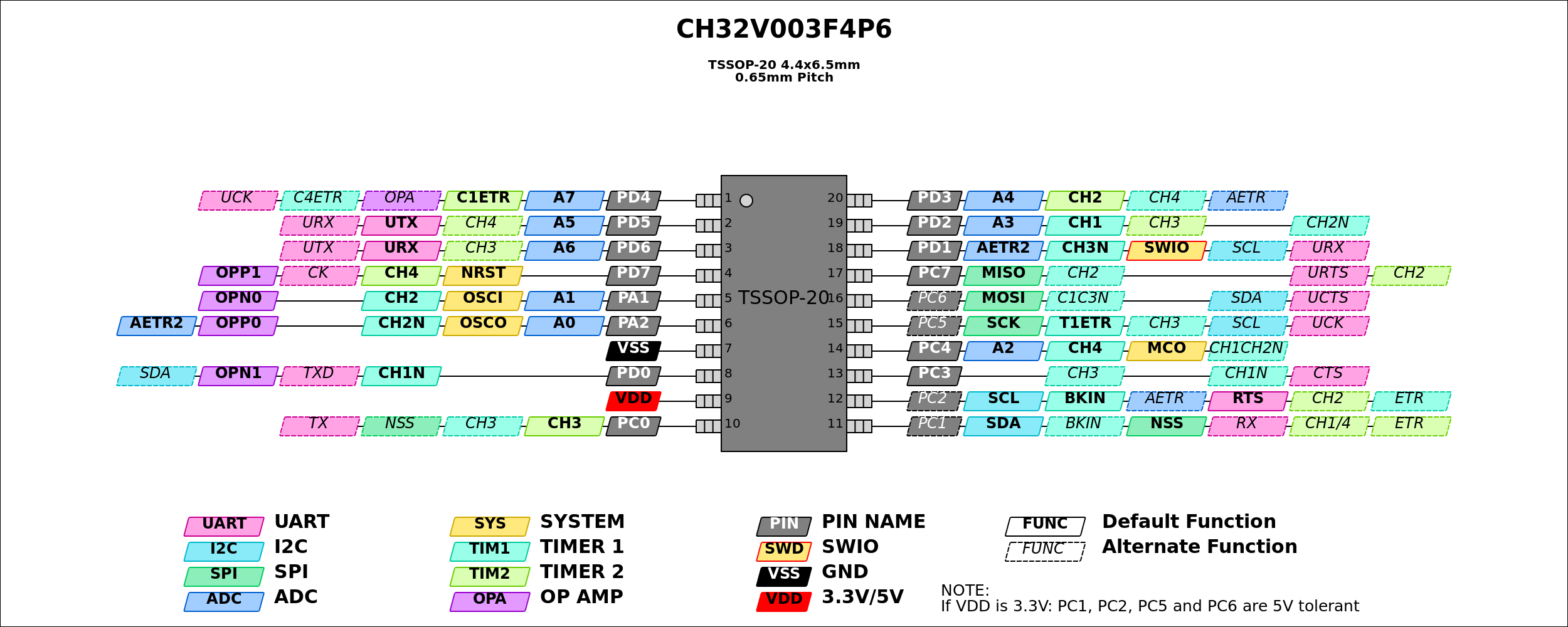

I/O pins:
