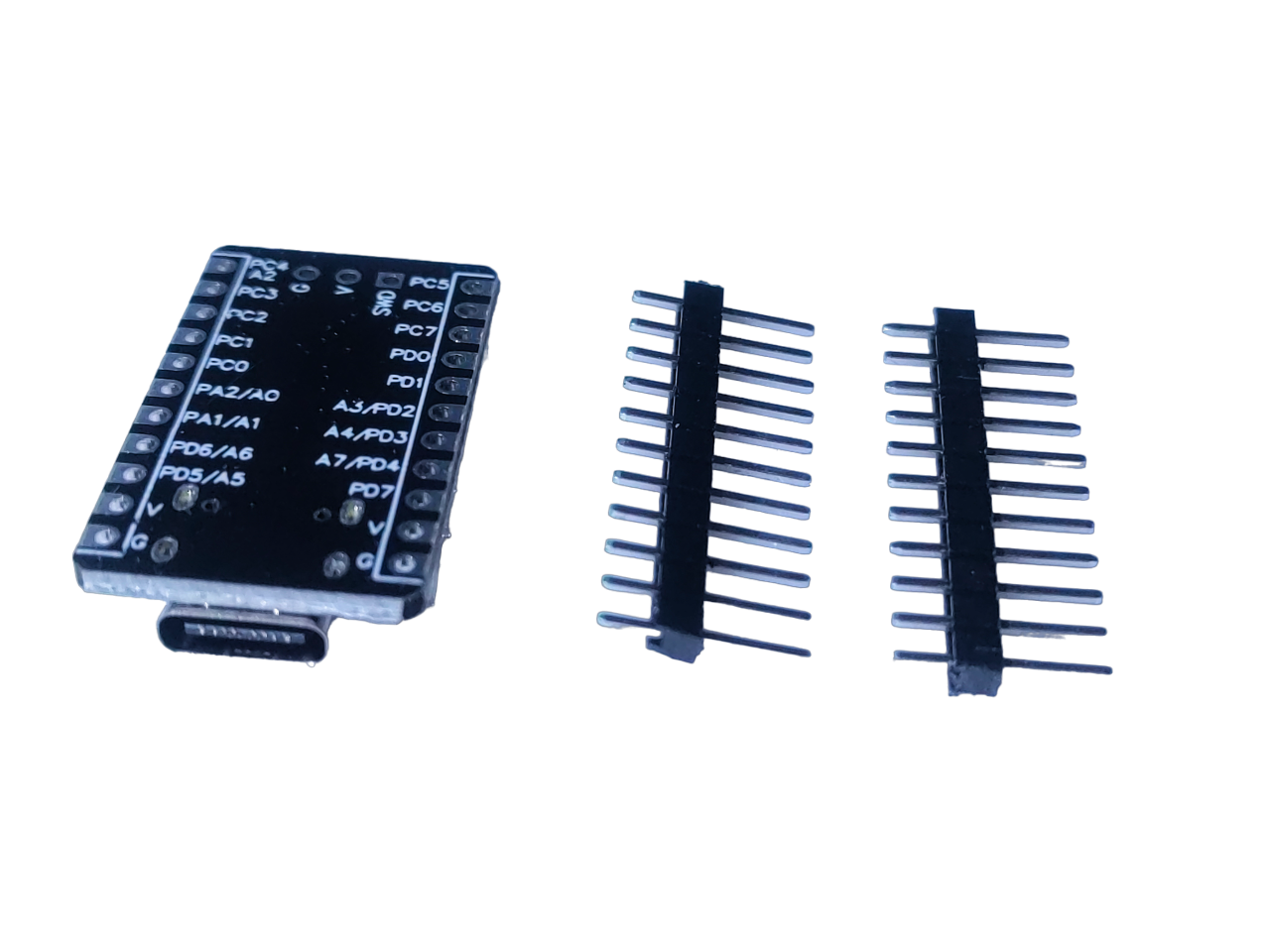

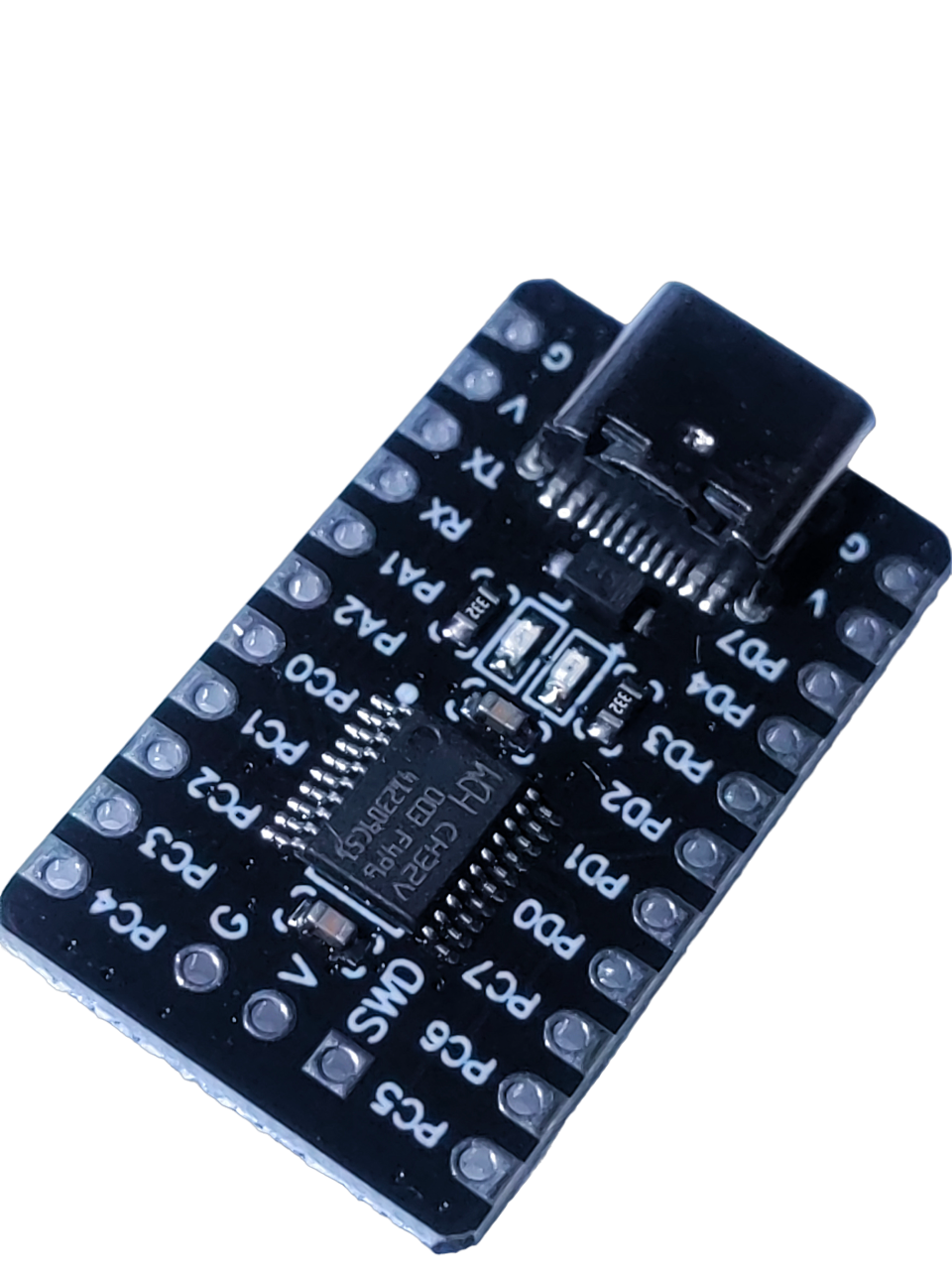

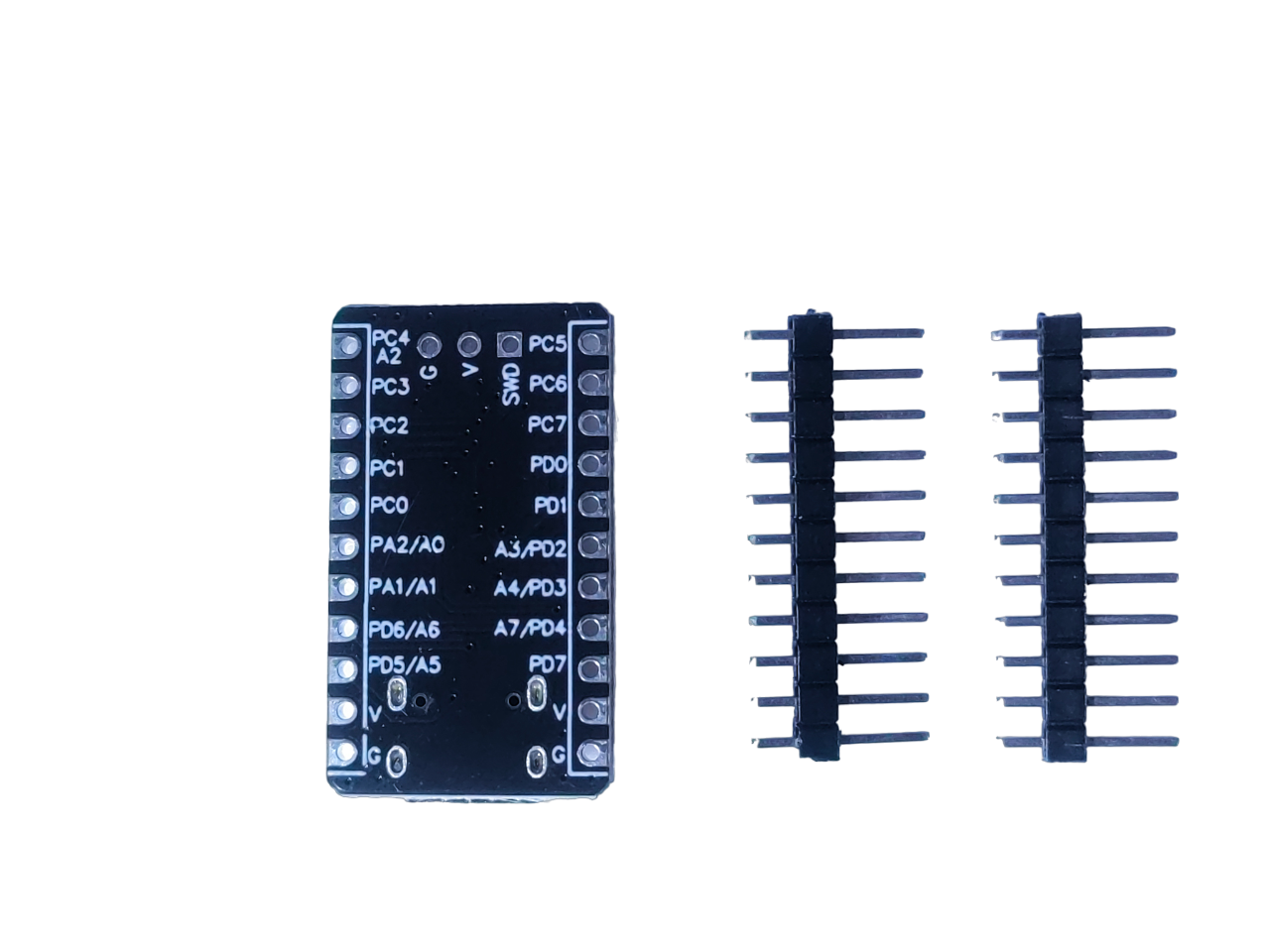

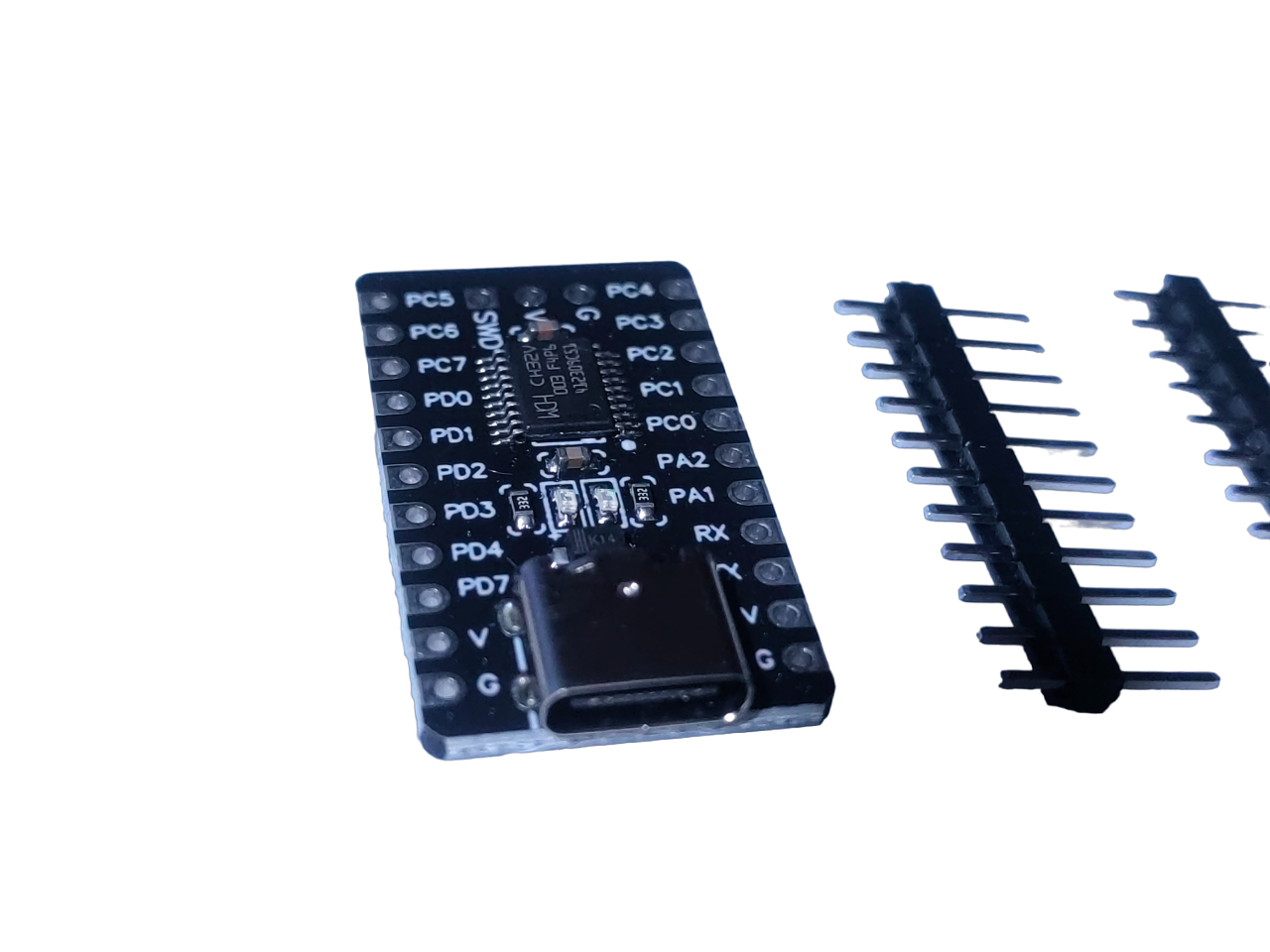

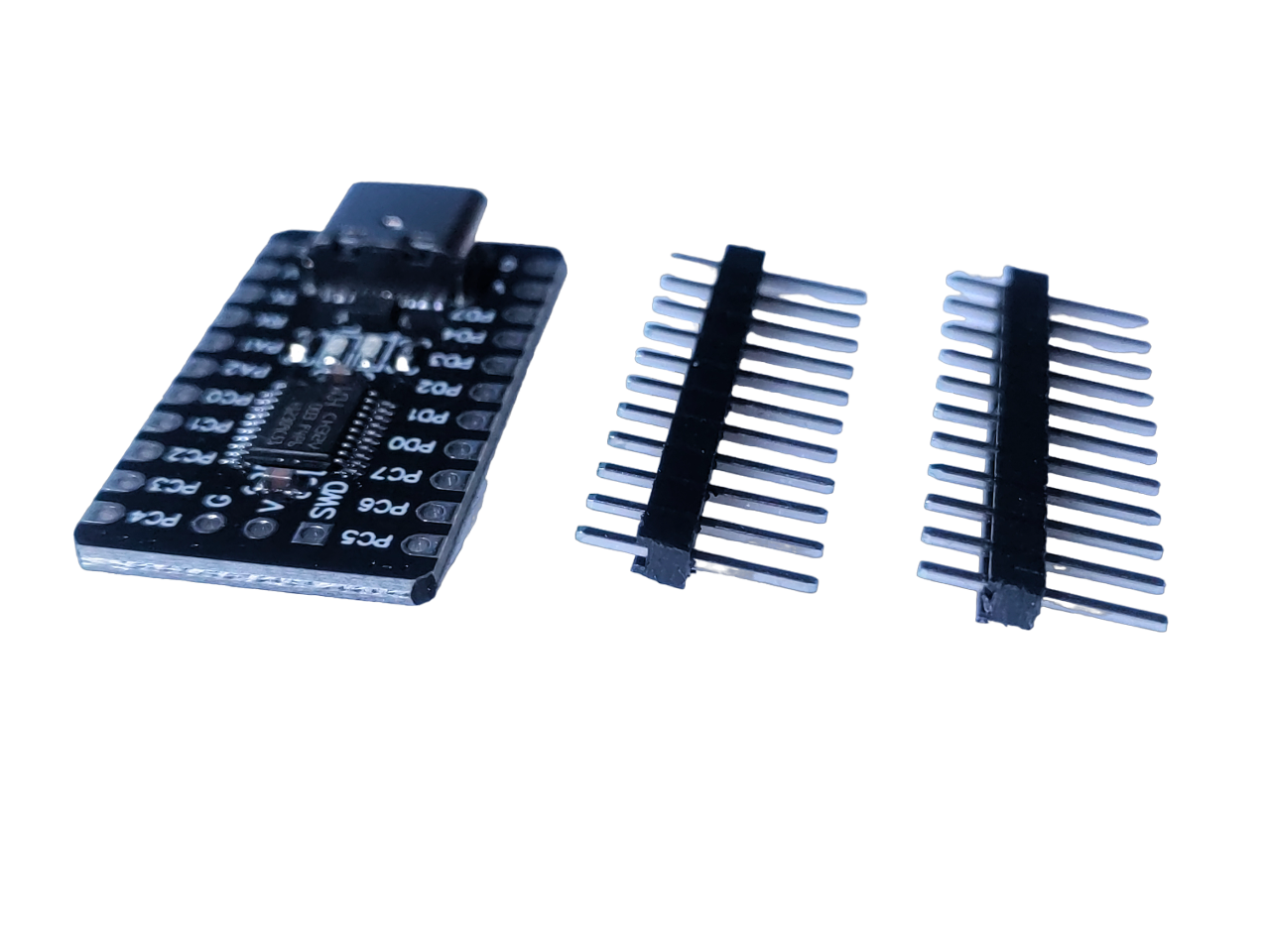

CH32V003F4P6 Arduino-Compatible RISC-V Development Board – 64K Flash / 8K RAM
The CH32V003F4P6 development board is based on a WCH RISC-V microcontroller. It supports development with the Arduino environment, making it convenient for experimenting with and prototyping electronic projects.
2.90 EUR
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Product details
Features:
- Microcontroller: QingKe 32-bit RISC-V2A
- System frequency: Maximum 48 MHz.
- Memory:
- 2 KB SRAM.
- 16 KB flash.
- Supply voltage: 3.3 V / 5 V.
- Power-saving modes:
- Sleep.
- Standby.
- Reset:
- Power-on/off reset.
- Voltage detector.
- DMA (Direct Memory Access): 1 group with a 1-channel controller.
- Operational-amplifier comparator: 1 group.
- ADC (Analogue-to-Digital Converter): 1 group with 10-bit resolution.
- Timers:
- 1 × 16-bit advanced timer.
- 1 × 16-bit general-purpose timer.
- Watchdog timers (WDOG): Two timers.
- SysTick timer: 1 × 32-bit.
- Communication interfaces:
- 1 × USART.
- 1 I2C group.
- 1 SPI group.
- I/O ports: 18 with external interrupt mapping support.
- Chip identification number: 64-bit.
- Serial debugging interface: 1-wire (SDI).
- Packages: TSSOP20, QFN20, SOP16, SOP8.
Arduino IDE compatibility: The CH32V003F4P6 microcontroller is compatible with the Arduino Integrated Development Environment (IDE). This simplifies development and programming for makers familiar with the Arduino ecosystem.
GitHub Arduino IDE core – Click here
---
URL for installation directly in the Arduino IDE:
https://alexandermandera.github.io/arduino-wch32v003/package_ch32v003_index.json
---
Datasheet:
---
Important notice:
Programming microcontrollers in the CH32V003 family requires a WCH-LinkE. 👈✨
Advantages:
- Low price
- Arduino compatibility
- Easy to use
- Versatility
- Support for various peripherals
