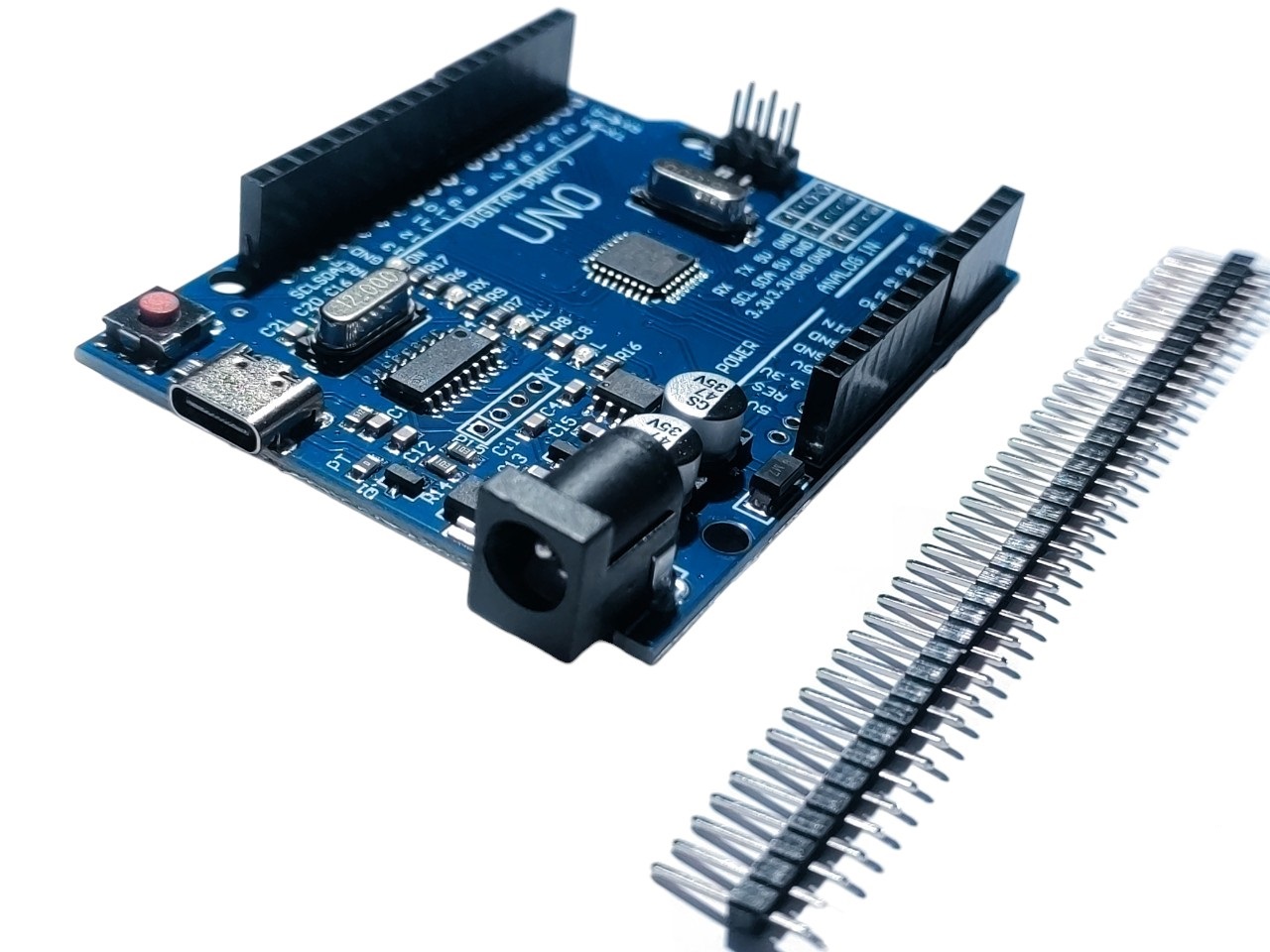

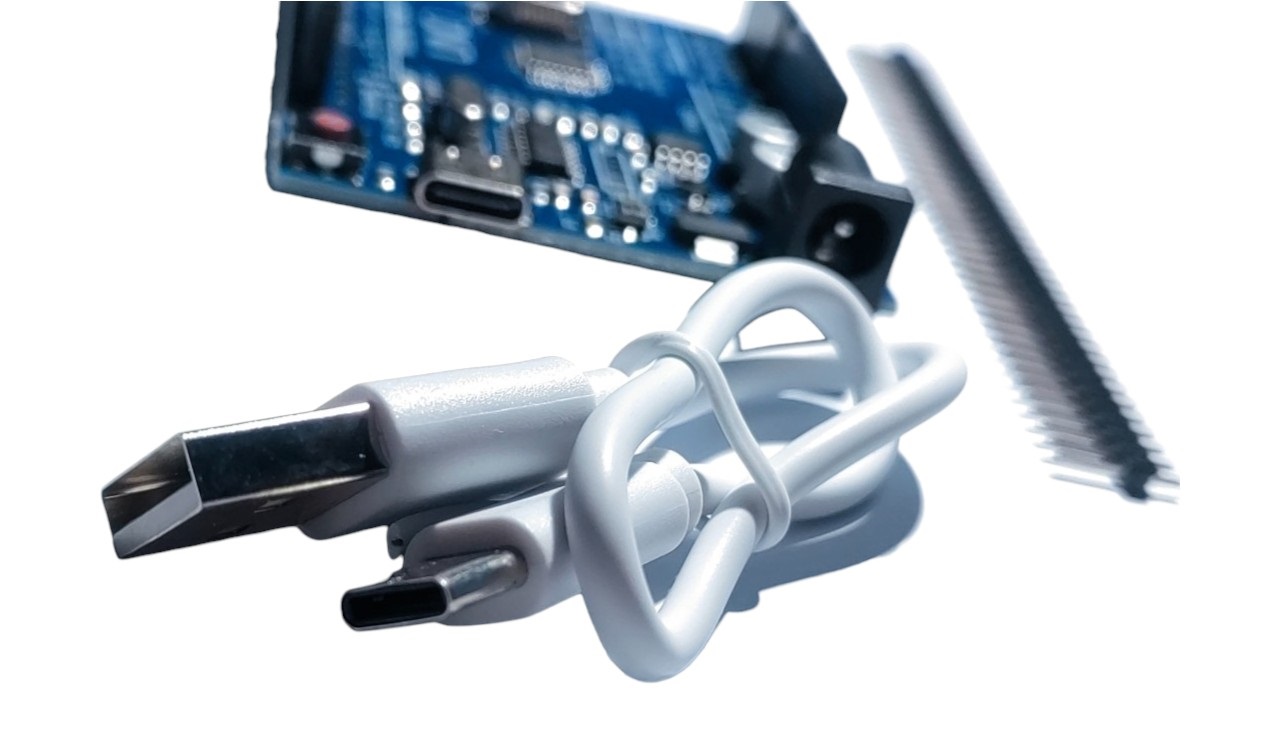

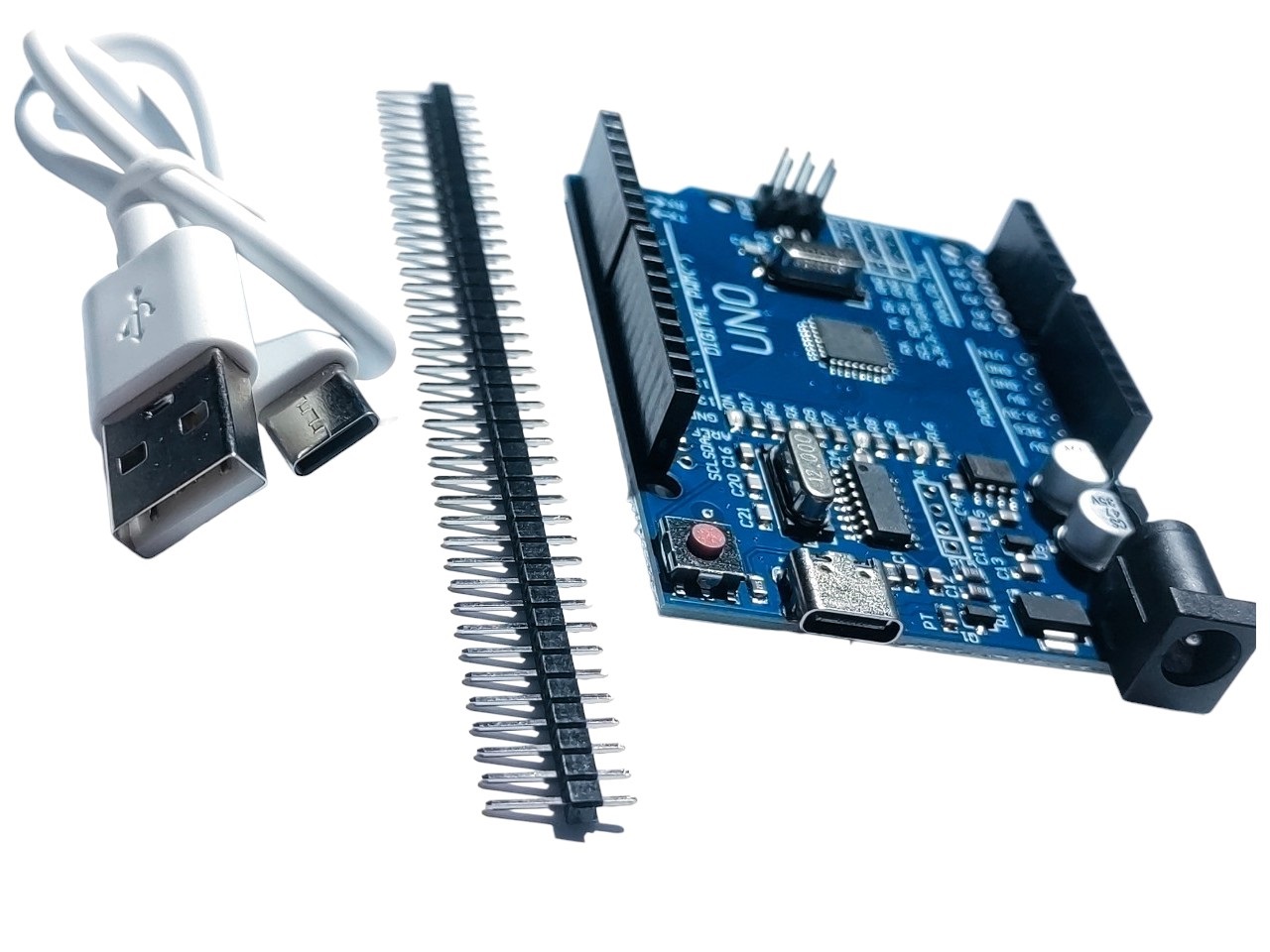

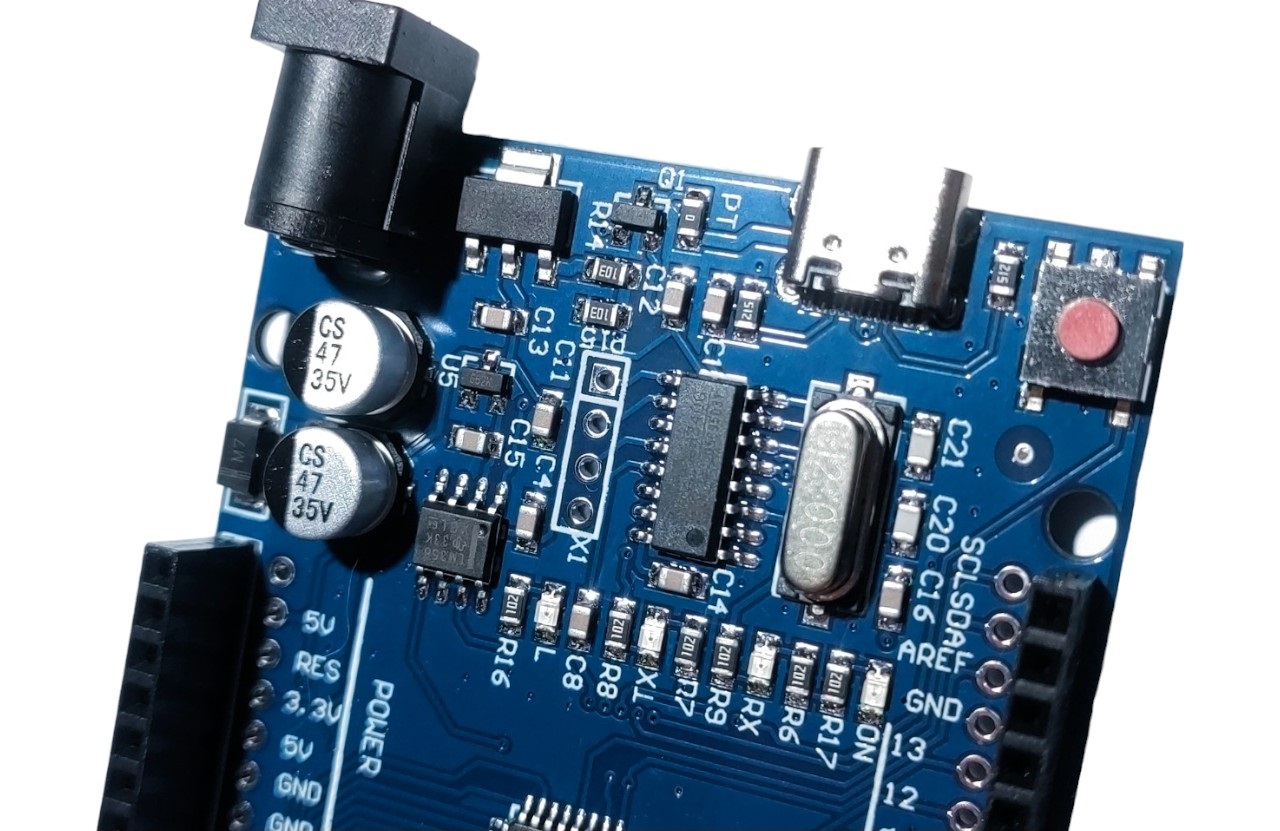

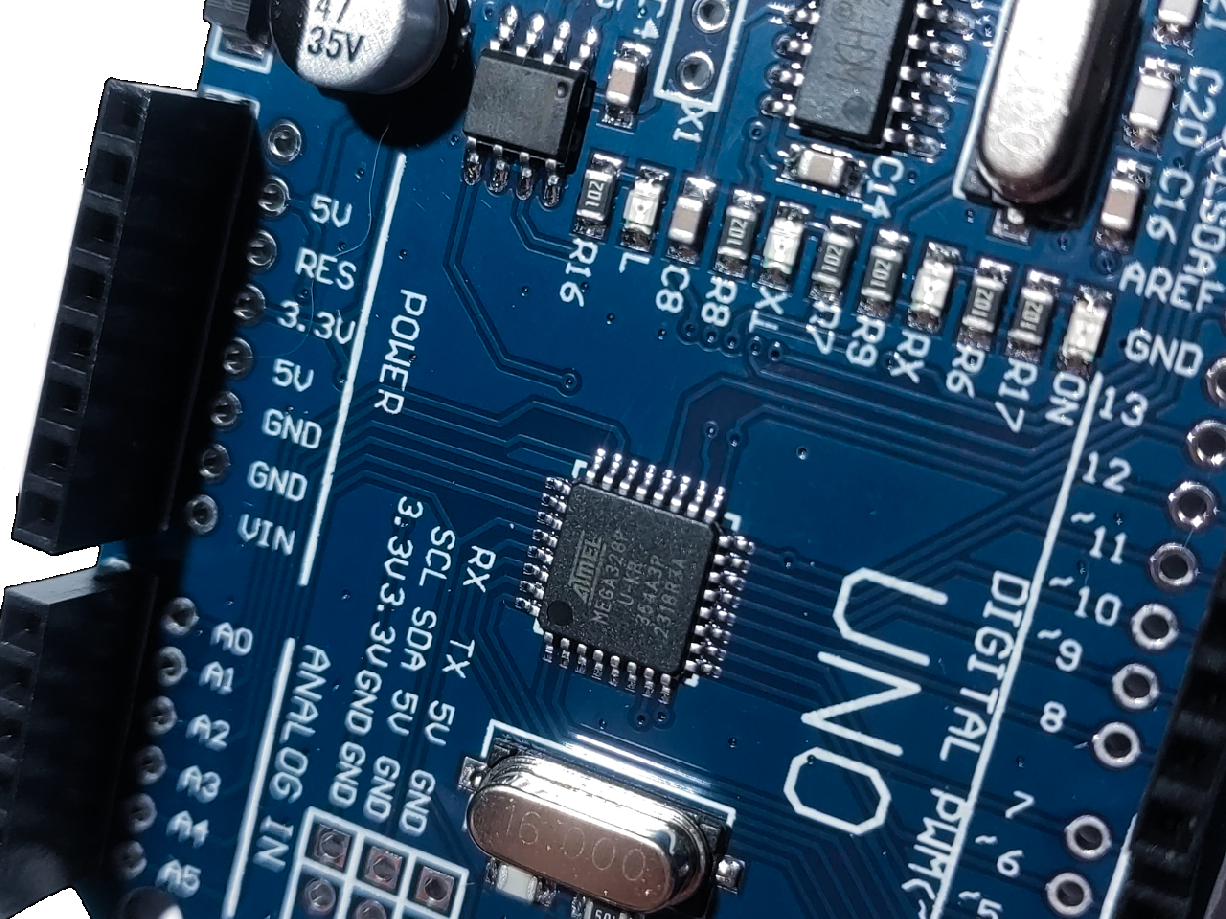

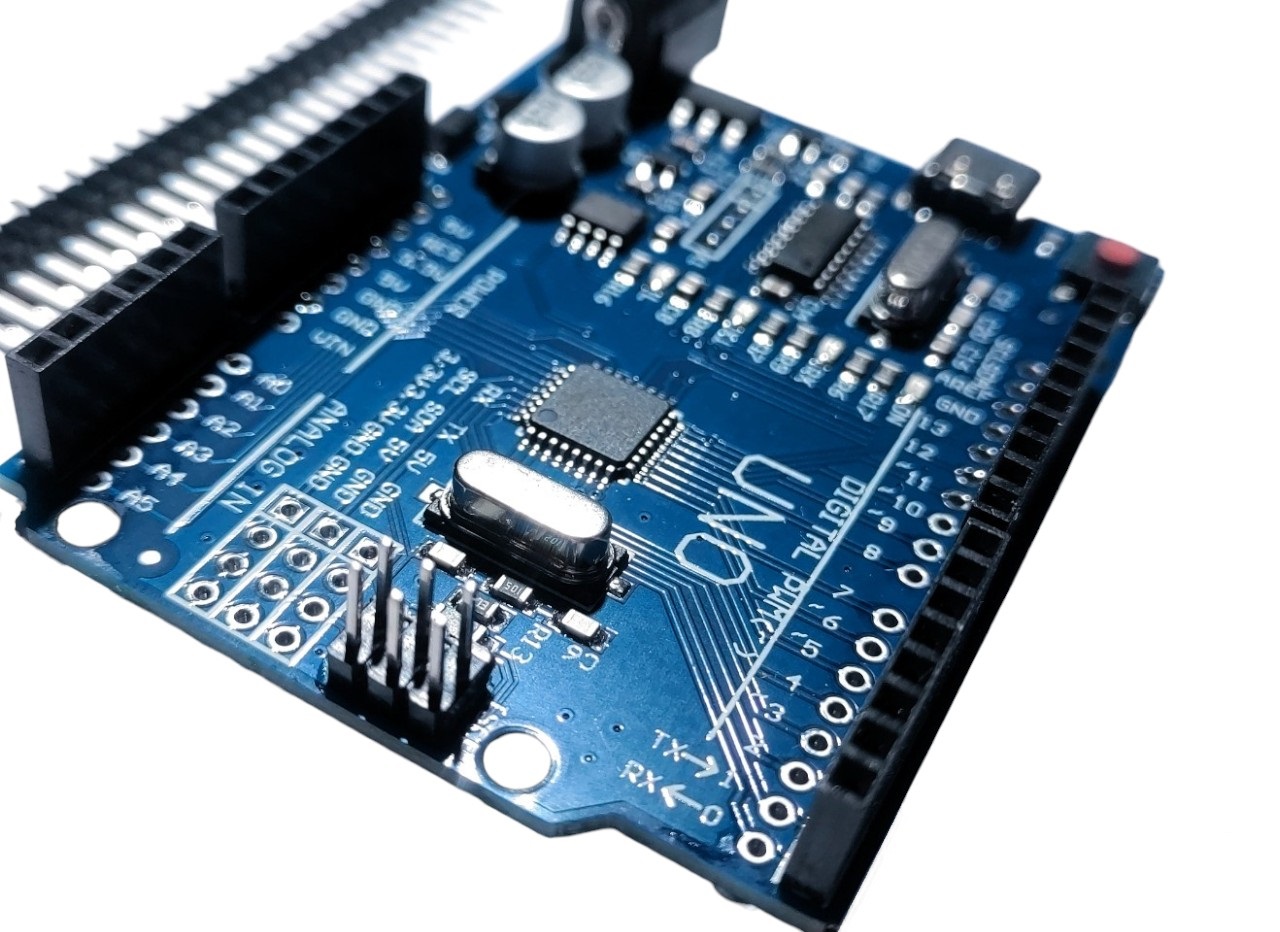

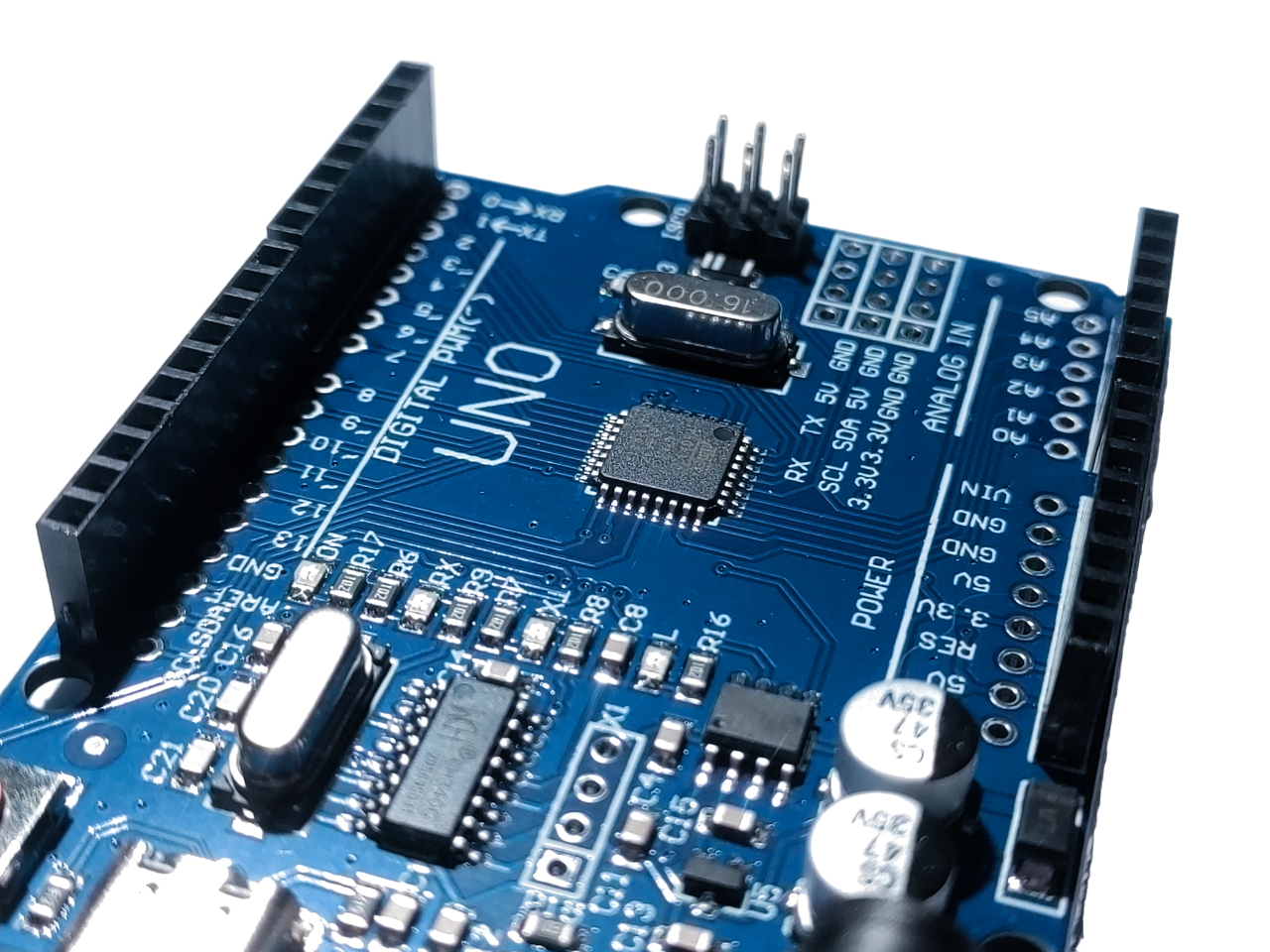

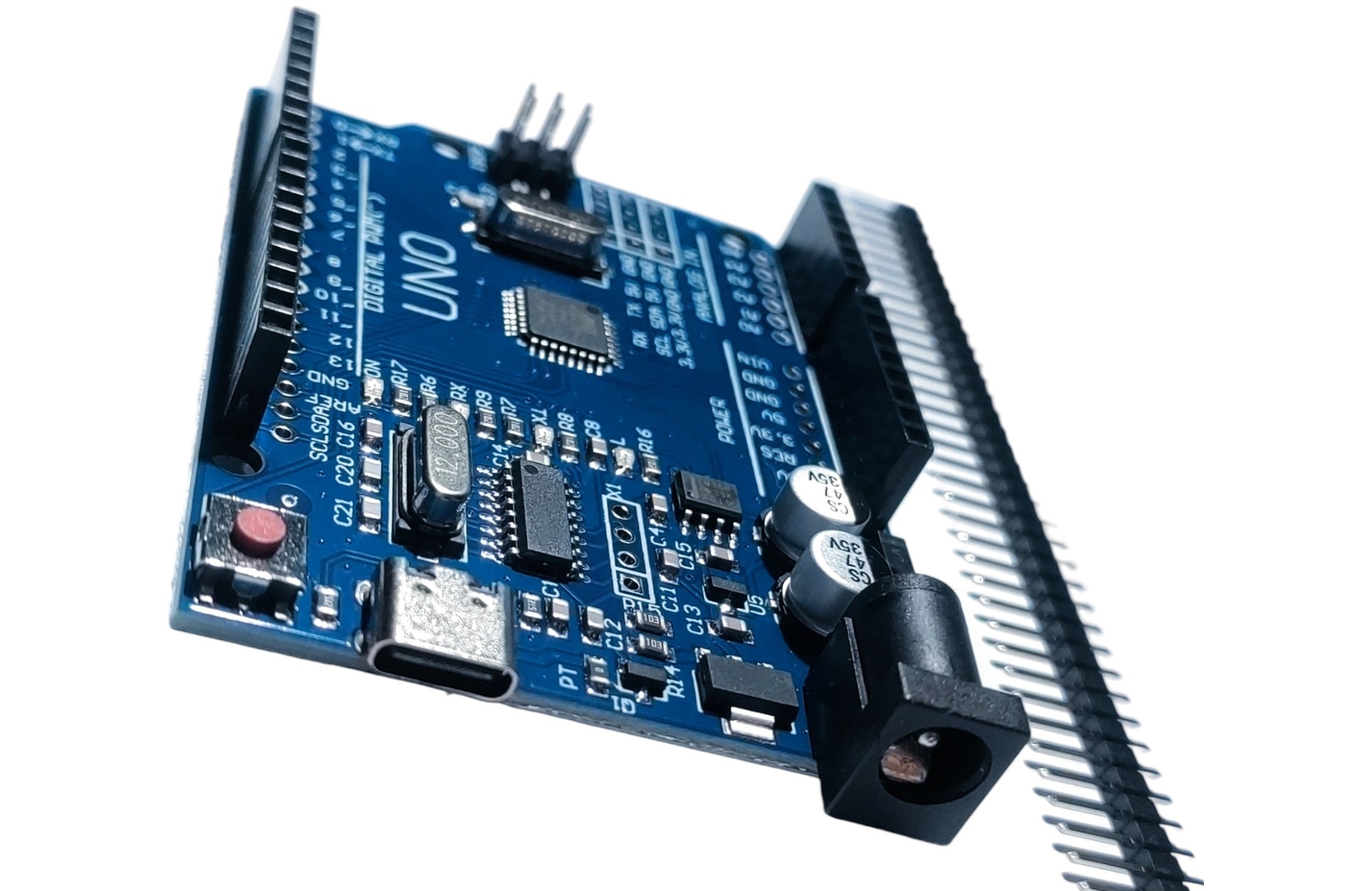

Arduino Uno R3 ATmega328P USB-C Development Board with Cable

Arduino Uno R3 development board based on the popular Arduino platform, offering flexibility and ease of use for electronic prototypes and experiments.
9.89 EUR
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Stock 5 piece · In stock
Internal code: 23518641
Units per package 1
Unit of measure
Measurement quantity 1
ImportChina
TypeClone
ProgrammerCH340
Programming environmentArduino IDE
InputUSB-C and DC jack
Input voltageMax. 12 V via DC jack
Weight 0.008 kg
Length 6.9 cm
Width 5.3 cm
Height 1 cm

Product details

Module specifications:

  • Model: Arduino Uno
  • Chip: CH340 (on-board USB-to-serial programmer)
  • Microcontroller: ATmega328P
  • Connector: USB Type-C

ATmega328P specifications:

  1. Architecture: AVR (Advanced Virtual RISC)
  2. Processor: 8-bit RISC (Reduced Instruction Set Computing)
  3. Package: 32 pins
  4. Clock speed: 20 MHz (maximum)
  5. Flash memory: 32 KB (programmable memory)
  6. EEPROM: 1 KB (Electrically Erasable Programmable Read-Only Memory)
  7. SRAM: 2 KB (Static Random-Access Memory)
  8. Operating voltage: 1.8–5.5 V
  9. Built-in peripherals: UART, SPI, I2C, ADC, PWM, timers
  10. Communication interfaces: USART, SPI, TWI/I2C
  11. ADC resolution: 10 bits
  12. Power-saving modes: Yes (Power-down, Standby, Extended Standby)
  13. Security features: Watchdog timer, brown-out detector, lock-bit mechanism

ATmega328P is widely used in the Arduino ecosystem across a variety of projects.

Examples include:

  1. LED blinking control: Control LED blinking patterns or respond to input signals using the ATmega328P.

  2. Thermometer: Build a thermometer with a temperature sensor and ATmega328P, showing readings on a display or sending them through a serial connection.

  3. Robotics projects: Control robot movement and functions using the ATmega328P and sensors that detect the surroundings.

  4. Ultrasonic sensor: Build a small obstacle-avoiding robot with ultrasonic sensors and an ATmega328P.

  5. Weather station: Measure temperature, humidity and other weather conditions with sensors connected to the ATmega328P.

  6. RFID access control: Build an RFID reader-based system with an ATmega328P to unlock doors or control entry based on RFID card identification.

  7. Wireless communication: Use 433 MHz and Wi-Fi modules with an ATmega328P to communicate wirelessly between remote controls, sensors or measuring instruments.

The USB-C connector enables convenient, fast connection to a computer or another USB-C device. The CH340 chip provides reliable communication between the board and computer for straightforward data transfer.

Arduino Uno is suitable for beginners and experienced developers alike. Its digital and analogue I/O pins support many sensors, actuators and other peripherals.

A large community and numerous available libraries and resources make it an excellent tool for everything from simple experiments to advanced electronics applications.

The Arduino Uno with USB-C and CH340 is a reliable, capable and affordable development board for anyone interested in electronics and programming. Start your creative projects today!



Software for programming the microcontroller:

Arduino IDE – Click here to download the installer.
