Arduino DC 0–25 V Voltage Sensor / Voltmeter Module

This Arduino DC 0–25 V voltmeter module is an easy-to-use sensor for measuring DC voltage in the 0–25 V range. It connects readily to an Arduino Uno or another compatible Arduino microcontroller.
0.78 EUR
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Stock 9 piece · In stock
Internal code: 23803745
Units per package 1 pcs
Unit of measure pcs
Measurement quantity 1 pcs
Weight 0.004 kg
Length 2.5 cm
Width 1.3 cm

Product details

Features:

  • Measurement range: 0–25 V DC
  • Accuracy: ±0.5%

Applications:

  • Measuring battery voltage
  • Measuring solar-panel voltage
  • Measuring power-supply voltage
  • Measuring voltage in other electronic devices

How to use:

Using the module is straightforward. Connect it to an Arduino Uno or another compatible microcontroller. Connect the positive terminal of the voltage source you want to measure to V+ on the module. Connect the negative terminal of the source to the GND terminal. Power the Arduino. Once programmed, the module measures the source voltage and displays readings in the Serial Monitor or on an LCD display.

Package contents:

  • 1 × Arduino DC 0–25 V voltmeter module

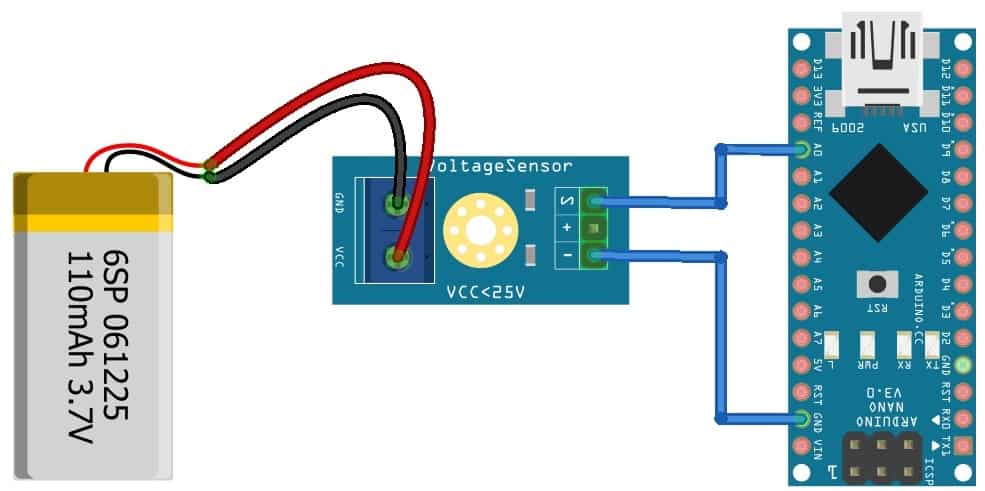

Wiring example: (Arduino Nano)

Voltmeter code example – Serial TEXT



Copy the code into the Arduino IDE. No additional libraries are required for this example.

 ---

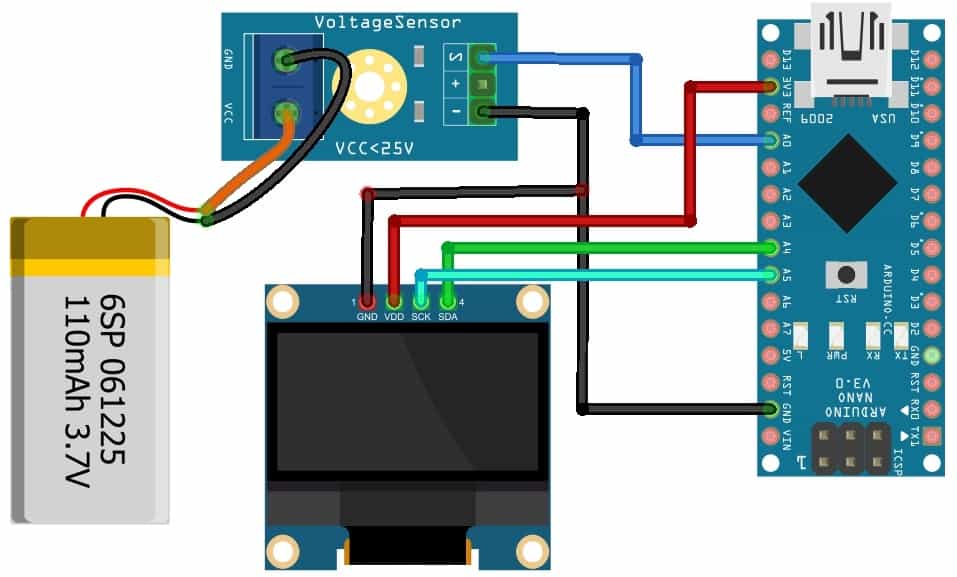

With an LCD display:

Voltmeter code example – LCD TEXT



Copy the code into the Arduino IDE and install the required libraries:

SPI.h
Wire.h
Adafruit_GFX.h
Adafruit_SSD1306.h

Install the libraries through the Arduino IDE Library Manager (or manually from GitHub).
