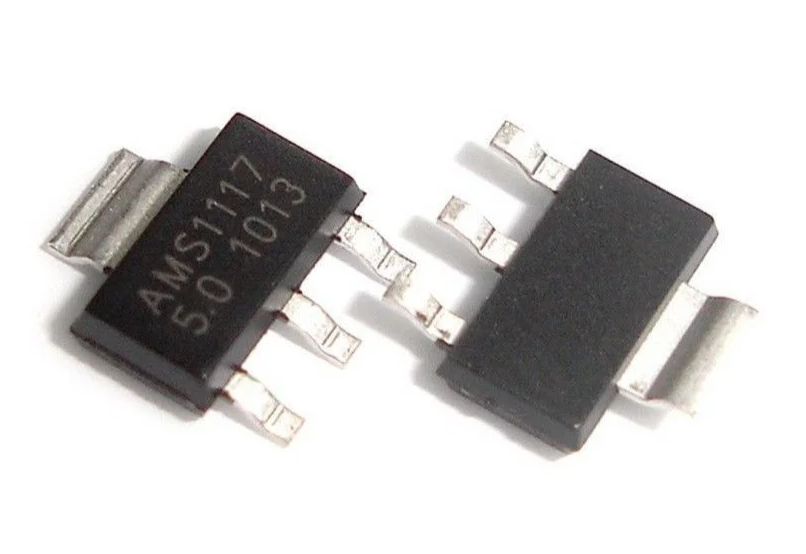

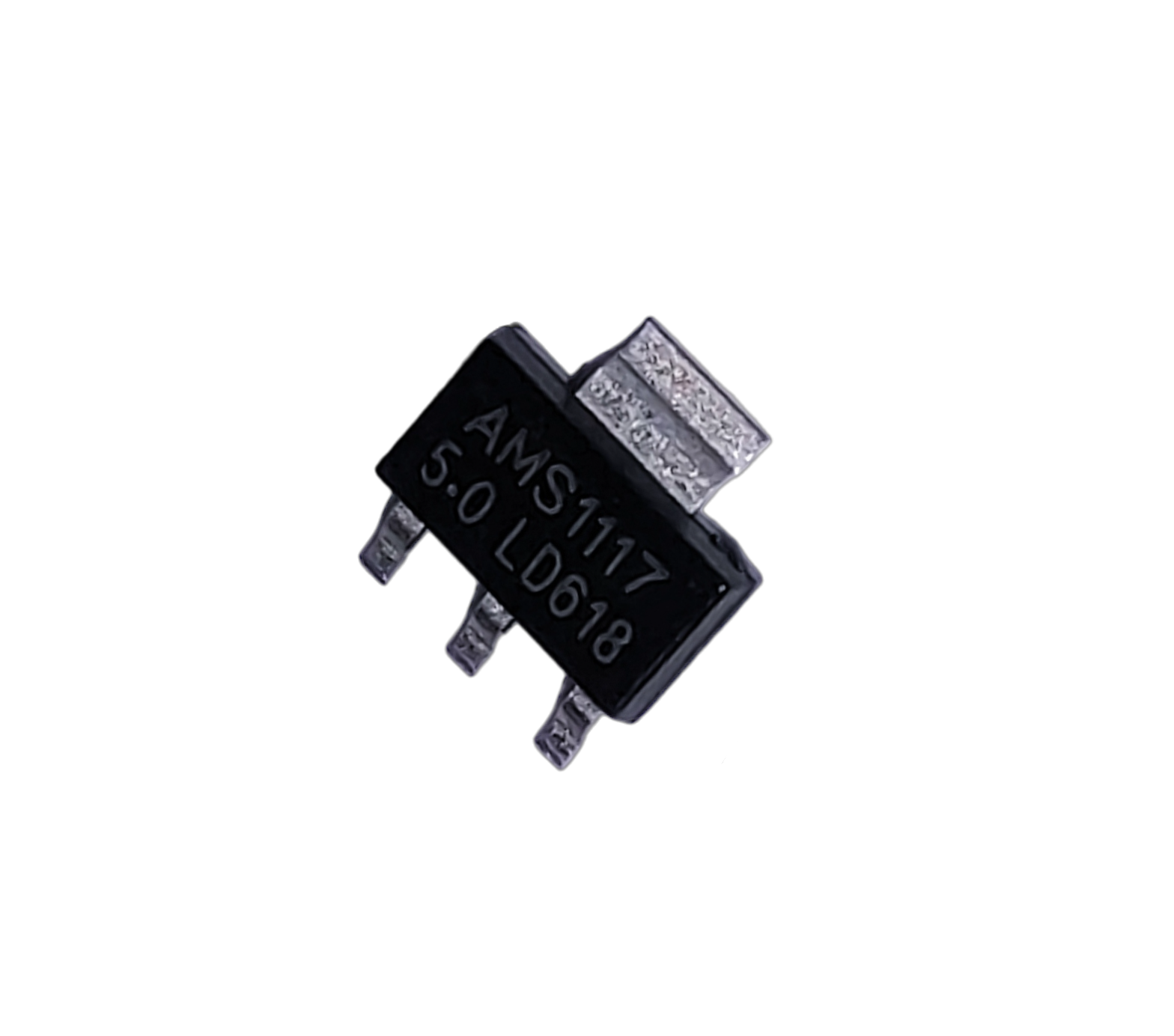

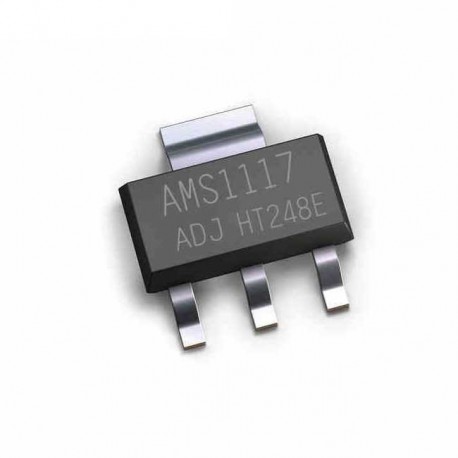

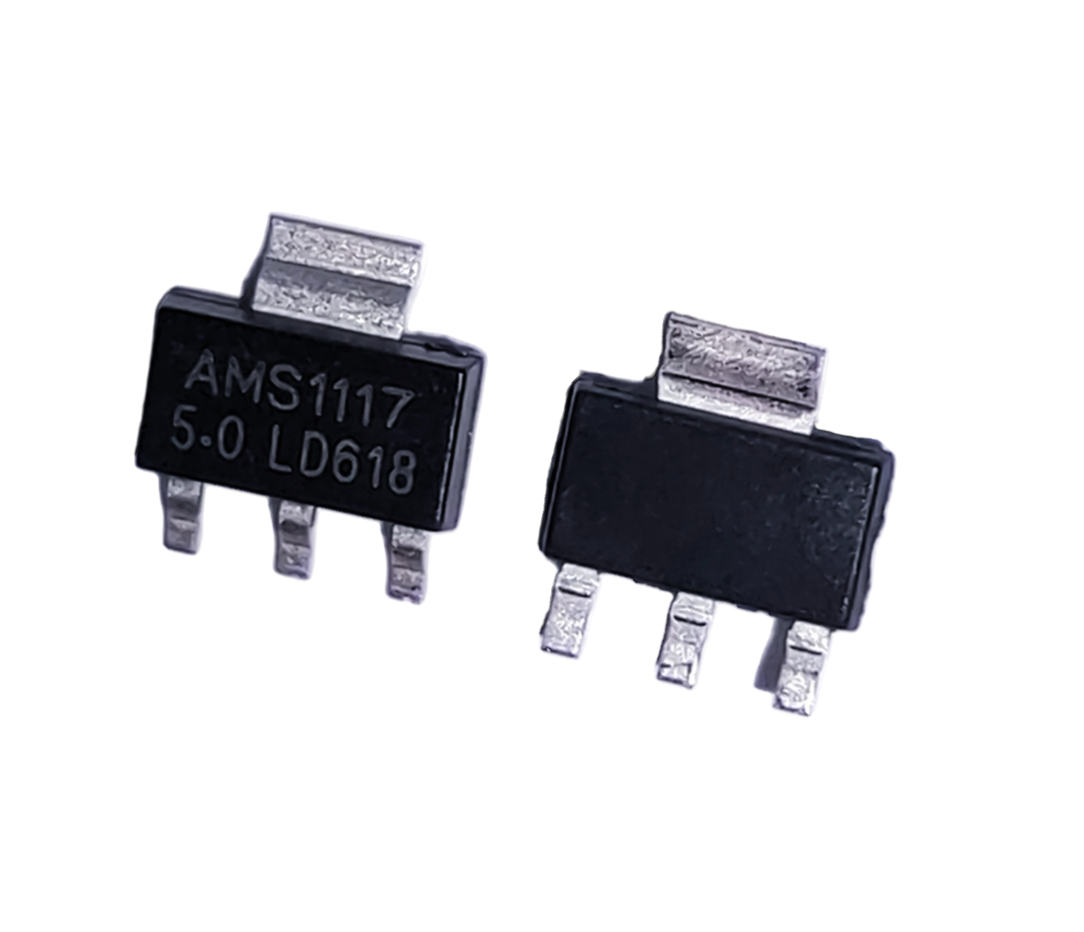

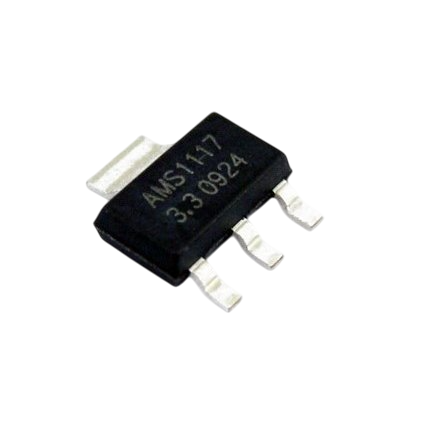

AMS1117 SMD Linear Voltage Regulator (4–15 V Input)

The AMS1117 is an integrated voltage regulator used to stabilize the output voltage in electronic devices.
Choose variant
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Choose variant Please choose a variant first.

Choose variant – Voltage

Please choose a variant first.

Internal code:
Units per package 1 piece
Unit of measure piece
Measurement quantity 1 piece
Input voltage4V-15V
Output voltage3,3V, 5V
Current0,8 A (800 mA)
Country of importChina

Product details

AMS1117 Voltage Regulator

Step-Down



Specifications:

  • Input voltage: 4,75V to 12V DC
  • Output voltage: 3,3V / 5V / ADJ DC
  • Maximum current: 0,8 A (800 mA)
  • Low dropout voltage: 1,3V
  • Low output-voltage deviation: ±2%
  • Operating temperature range: -40°C to 125°C



Applications:

  1. Powering microcontrollers and other digital circuits
  2. Voltage regulation for LED lighting
  3. Providing stable voltage for analog circuits
  4. Powering sensors and actuators in embedded systems
  5. Powering RC models and model railways
  6. Voltage regulation in solar-panel systems
  7. Voltage regulation in charging circuits for batteries
  8. Use as a voltage source for audio circuits and sound systems
  9. Voltage regulation in motor control circuits
