5 V ERM Vibration Motor Module with MOSFET Driver

5 V ERM vibration motor module with an integrated onboard MOSFET driver. Only one control pin (IN) is needed to control vibration. Ideal for Arduino, ESP32, STM32 and other microcontrollers.
1.18 EUR
Lowest price in the last 30 days:
Shown according to the lowest price in the 30 days before the discount.
Stock 9 piece · In stock
Internal code: 23066302
Units per package 1
Unit of measure
Measurement quantity 1
Weight 0.0035 kg

Product details

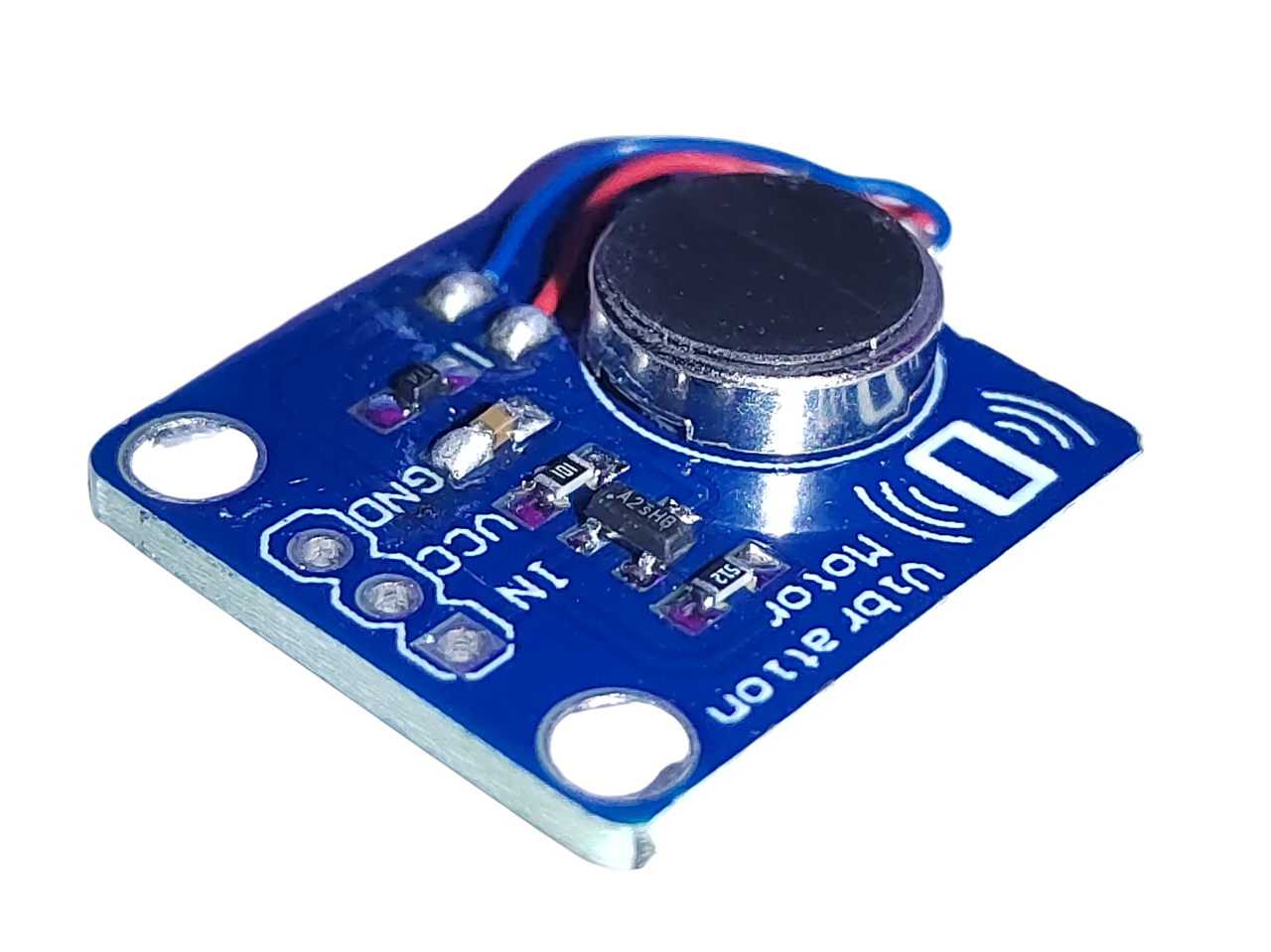

This vibration motor module features an integrated MOSFET transistor on the circuit board, allowing convenient and reliable motor control using a single control pin IN. The module is designed for haptic feedback, signaling or alarms in embedded and IoT projects.

🔹 Technical specifications:

  • Rated voltage: 5.0 V DC

  • Operating voltage: 3.0 V – 5.3 V DC

  • Rated speed: ≥ 9000 rpm

  • Rated current: max. 60 mA

  • Starting current: max. 90 mA

  • Starting voltage: DC 3.7 V

  • Insulation resistance: ≥ 10 MΩ

  • Module dimensions: 21 × 30 mm

  • Mounting: 3 mm diameter holes; spacing according to the board



🔹 Features:

✅ Integrated MOSFET driver – simple single-pin control (IN)
✅ Low power consumption
✅ Simple connection: VCC, GND, IN
✅ Ideal for haptic feedback and signaling



🔹 Applications

  • Wearable electronics (watches, wristbands)

  • Smart devices with vibration alerts

  • IoT and DIY electronics projects

  • Alarms and notification systems

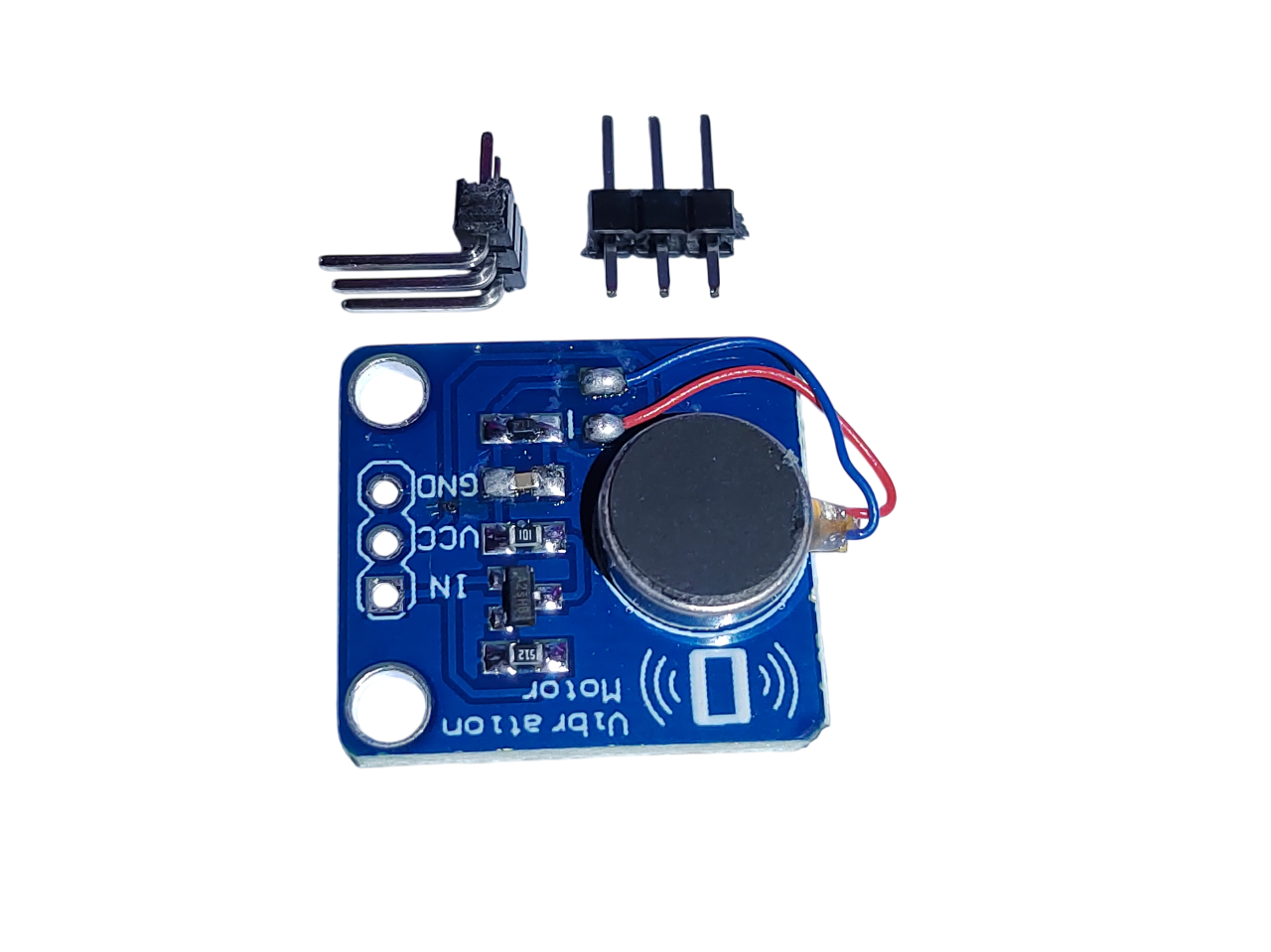

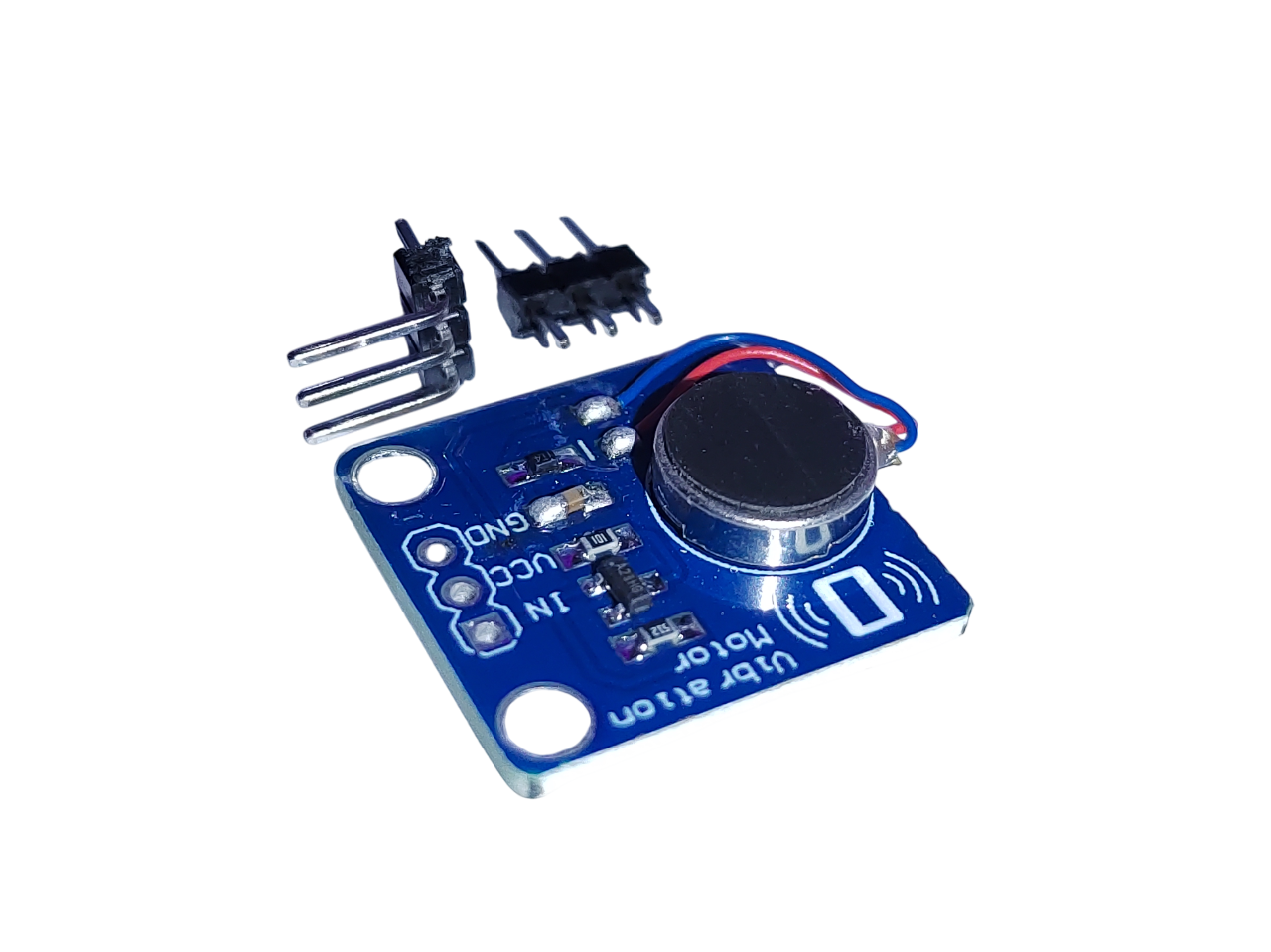

🔹 Package contents:

  • 1× 3–5 V vibration motor module with integrated MOSFET driver

  • 1× set of straight pin headers

  • 1× set of angled pin headers
